BUY LINCOLN RANGER 330MPX EFI WELDER/GENERATOR W/GFCI (K4779-1) ONLINE

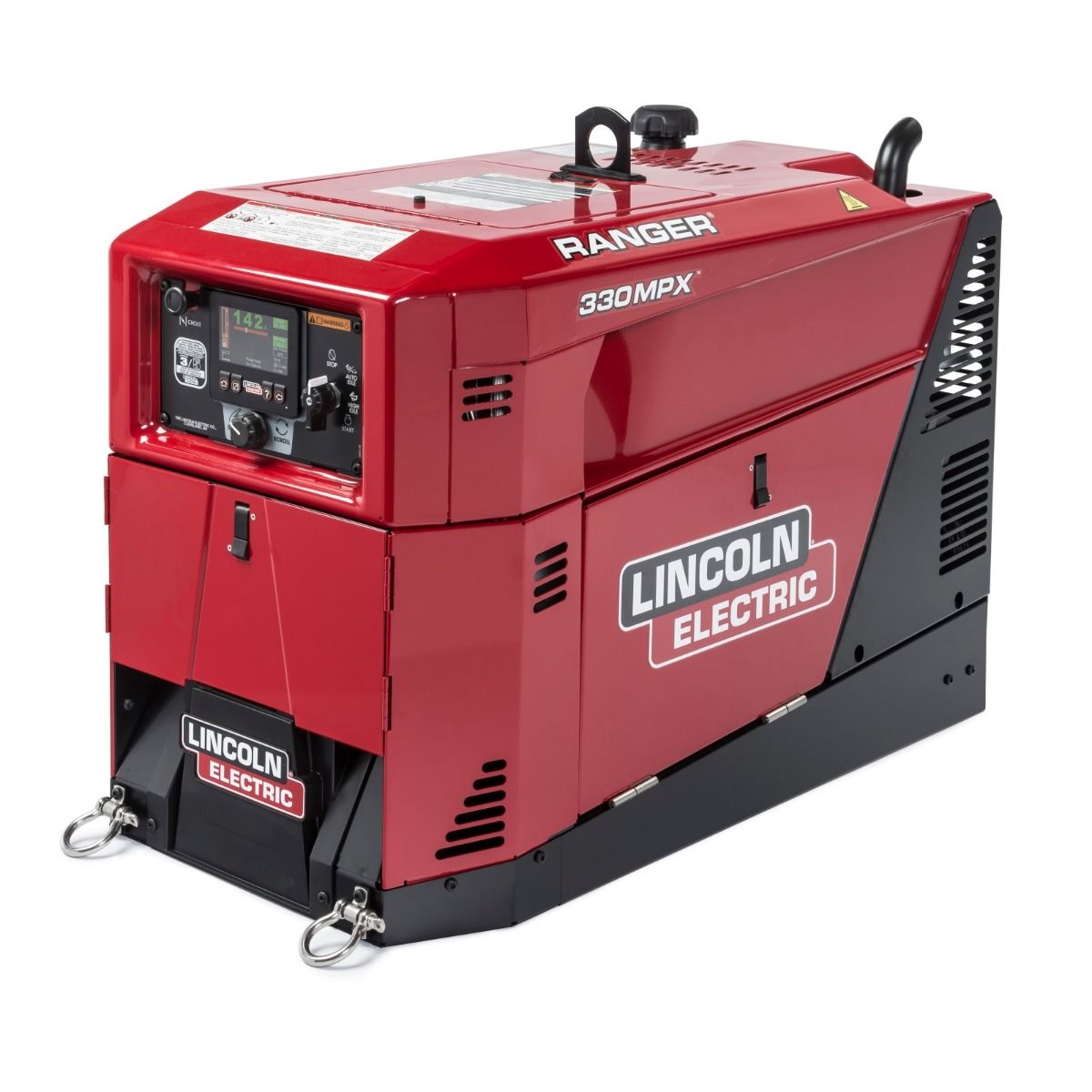

Smaller. Smarter. Quieter! The Lincoln Ranger 330MPX EFI Welder/Generator w/GFCI (K4779-1) breaks the mold of what we expect in an engine driven welder/generator. Lincoln has found a way to pack more innovative features in a smaller footprint (20% smaller footprint and 25% lighter than other machines in its class). The Lincoln Ranger 3330MPX EFI WELDER/GENERATOR features a digital control panel for ease of use and 330 amps of output for smooth welding.
Advanced Features
• Enhanced Remote Control Capabilities – offer the ability to select preferred remote amperage scale without additional cables
• Lock Settings – enable the supervisor and operator passcode protection to lock settings and weld mode
• Intuitive Maintenance Indicators – oil level, air filter, spark plug, fuel filter, brushes
• New Weld Modes – downhill pipe, touch-start pulse TIG, pulse spool gun
Machine Quick Specs
• Amperage Output: 330A
• Duty Cycle: 100% @ 330A DC CC | 100% @ 312A DC CV
• Generator Output: 11,500 W Peak | 10,000 W Continuous
• Dimensions: 26″ H x 20″ W x 36″ L
• Weight: 446 lbs
Engine Quick Specs
• Engine: Kohler OHV Command CH740 Gasoline (Electric Fuel Pump)
• 2 Cyl, 4 Cycle, Air Cooled
• Horsepower: 25 HP @ 3600 RPM
• Ignition: Electric Start w/Choke
• Fuel Capacity: 11 Gallons | 2.0 Qts Oil
• Noise Level: 74.7 Decibels @ Full Load
| Brand | Lincoln |
|---|---|
| SKU | ILIN20220001 |
| MPN | LINK4779-1 |
| Mfgs MPN | K4779-1 |
| UPC | 15082957005 |
| Prop65 | Yes |
| Process | Flux Cored (FCAW), MIG, Stick, TIG |
| Phase | Single Phase |
| Manufacturer’s Warranty | 3 Years |
| Polarity | DC |
| Discontinued Product | No |
