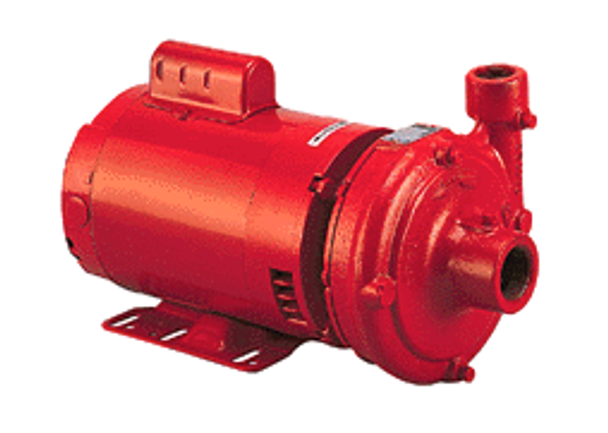

168038 Bell & Gossett Series 1535 – 358T -1/2HP Pump.
The Bell & Gossett 1535 foot-mounted, end-suction, close-coupled pumps are available in 1” through 1-1/2” sizes. There are several motor sizes 1/3 to 5 HP at 3500 RPM and are available in bronze-fitted construction with flows to 240 GPM at 115 feet. This back-pullout pump offers ease of service in a close-coupled design. The pump can be mounted vertically or horizontally to provide maximum flexibility. Ball bearing design and standard internally flushed mechanical seal provide long, dependable service.
|
Manufacturer:
|
Bell & Gossett
|
|
Series:
|
1535
|
|
Part Number:
|
168038
|
|
Connection Type:
|
Threaded
|
|
Connection Size:
|
1-1/2″ x 2″
|
|
Impeller Diameter:
|
3-11/16″
|
|
Material:
|
Cast Iron
|
|
Mounting Type:
|
Foot Mounted
|
|
Horse Power:
|
1-1/2 HP
|
|
Motor Phase:
|
Three
|
|
RPM:
|
3500 RPM
|
|
Hertz:
|
60Hz
|
|
Voltage:
|
208-230/460v
|
|
Max Temperature:
|
225
|
