Briggs Stratton 19J137-0008-F1 Snow Engine, 14.5 Gross Torque, 308cc, 1 x 2-49/64 inch Crankshaft, 3/8-24 Drilled & Tapped, 1/4 Keyway. Shop our Horizontal engine collection. SAVE UP TO 30% OFF. Price Match Guarantee, Easy Returns and We ship worldwide.

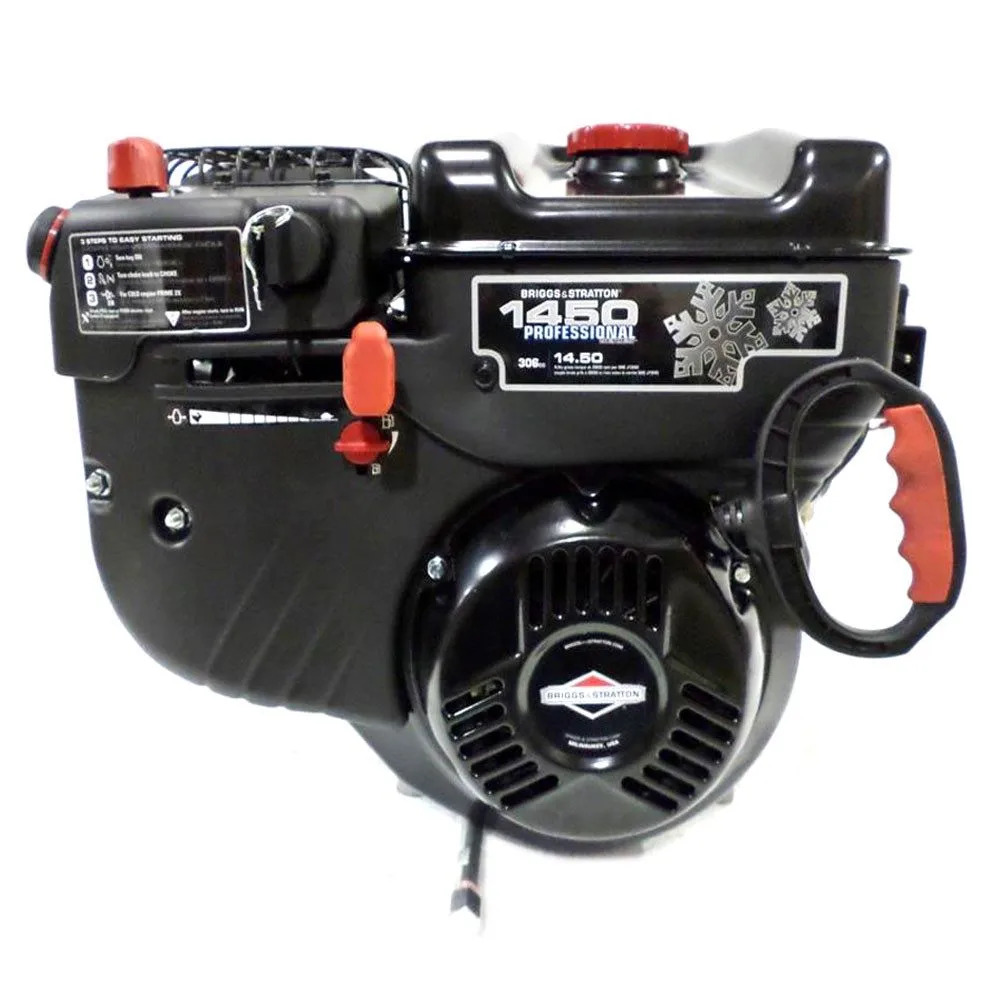

Briggs Stratton 19J137-0008-F1 Horizontal Snow Engine Key Specifications
| BRAND | Briggs Stratton |
|---|---|
| MODEL NUMBER | 19J137-0008-F1 |
| WARRANTY | 2 Year Consumer |
| SHIPPING WEIGHT | 63 |
| DISPLACEMENT | 308cc |
| STARTER TYPE | Electric with Recoil w/ Mit Grip Backup |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1″ x 2-49/64″ |
| CRANKSHAFT LENGTH | 2-49/64″ |
| CRANKSHAFT END TAPPED SIZE | 3/8 – 24 |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Ball |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| FUEL TANK | Yes |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 37 |
| LOW OIL ALERT | No |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| MAX RPM | 3600 |
| CHARGING SYSTEM | 9 |
| FLYWHEEL | Heavy |
| NOTES | Engine Notes: |
| PTO HEIGHT | 5 – 1/4 |
