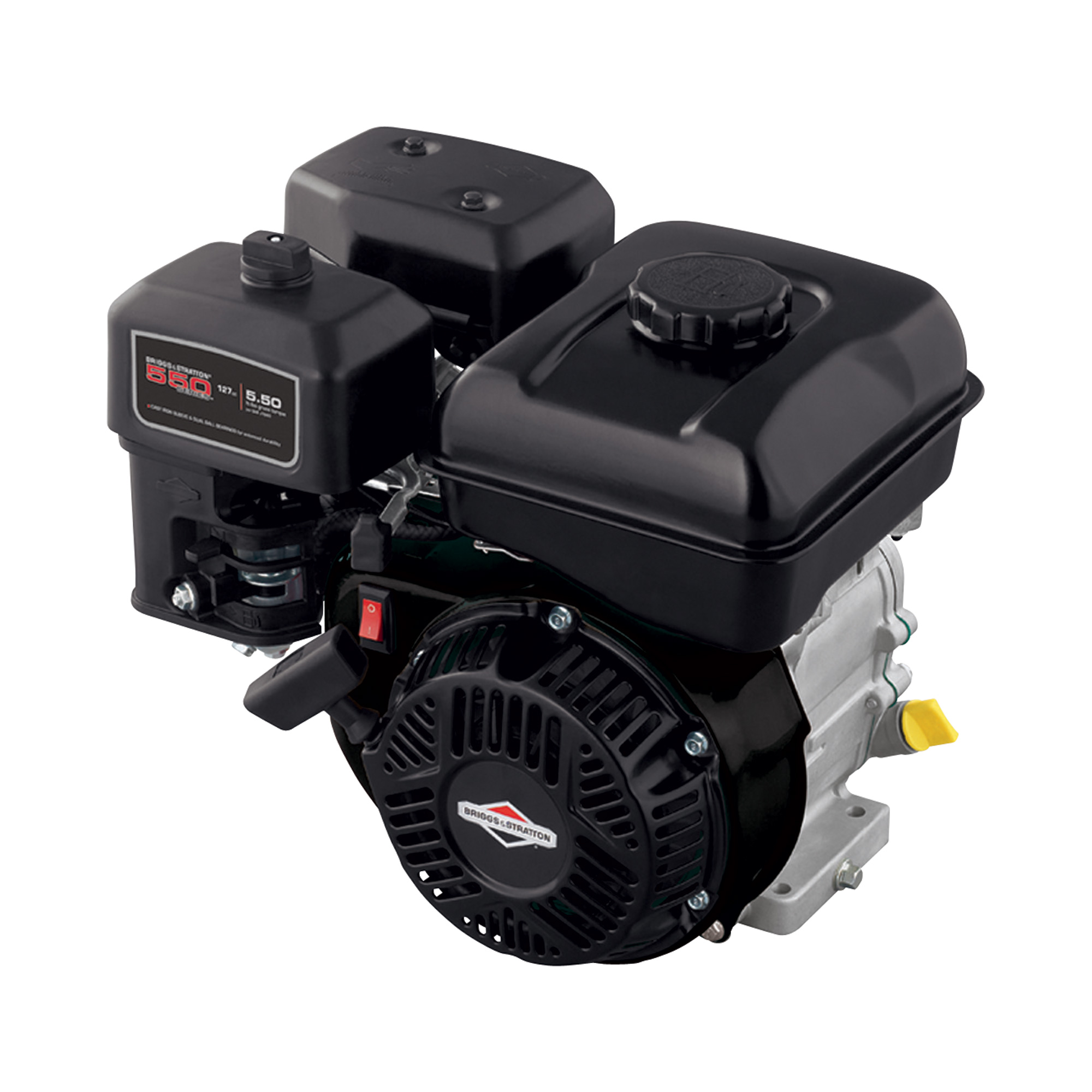

Briggs Stratton 550 Series Horizontal OHV Engine 127cc 5/8in x 2 27/64in Shaft Model 831321040F1
The Briggs Stratton 550 Series Horizontal OHV Engine runs cooler and cleaner, delivering more power, smoother operation, longer engine life and improved fuel economy. An excellent, compact performer that you can depend on for mid-duty applications.n
Briggs Stratton 550 Series Horizontal OHV Engine Key Specs
| Item# | 26597 |
| Brand | Briggs Stratton |
| Manufacturer’s Warranty | 2 years consumer use / 1 year commercial use |
| Ship Weight | 35.0 lbs |
| Engine Displacement | 127 cc |
| Engine Type | 550 Series |
| Start Type | Recoil |
| Shaft Diameter | 5/8 in |
| Shaft Length | 2.42 in |
| Shaft Output | Horizontal |
| Shaft Keyway | 0.18 in |
| Shaft End Tapped (Diameter (in.)/Threads per inch) | 1/4-28 |
| Shaft Rotation (From PTO Shaft Side) | Counterclockwise |
| PTO Height | 4.17 in |
| Bearing Type | Ball |
| Cylinders (qty.) | 1 |
| Cylinder Bore | Cast iron |
| Cooling System | Air cooled |
| Bore | 2.44 in |
| Stroke | 1.65 in |
| Air Cleaner Type | Dual element |
| Fuel Tank | Yes |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 2 qt |
| Fuel Filter | Yes |
| Oil Capacity | 0.625 qt |
| Low Oil Alert | No |
| Low Oil Shutdown | No |
| Lubrication System | Splash |
| Ignition System | Electronic |
| Governor System | Mechanical |
| Carburetor | Float |
| Throttle Control | Manual |
| Choke Control | Manual |
| Max. RPM | 3,300 |
| Muffler Included | Yes |
| Auto Compression Release | Yes |
| CARB Approval | Yes |
| Dimensions L x W x H (in.) | 13 x 15 x 13 in |
