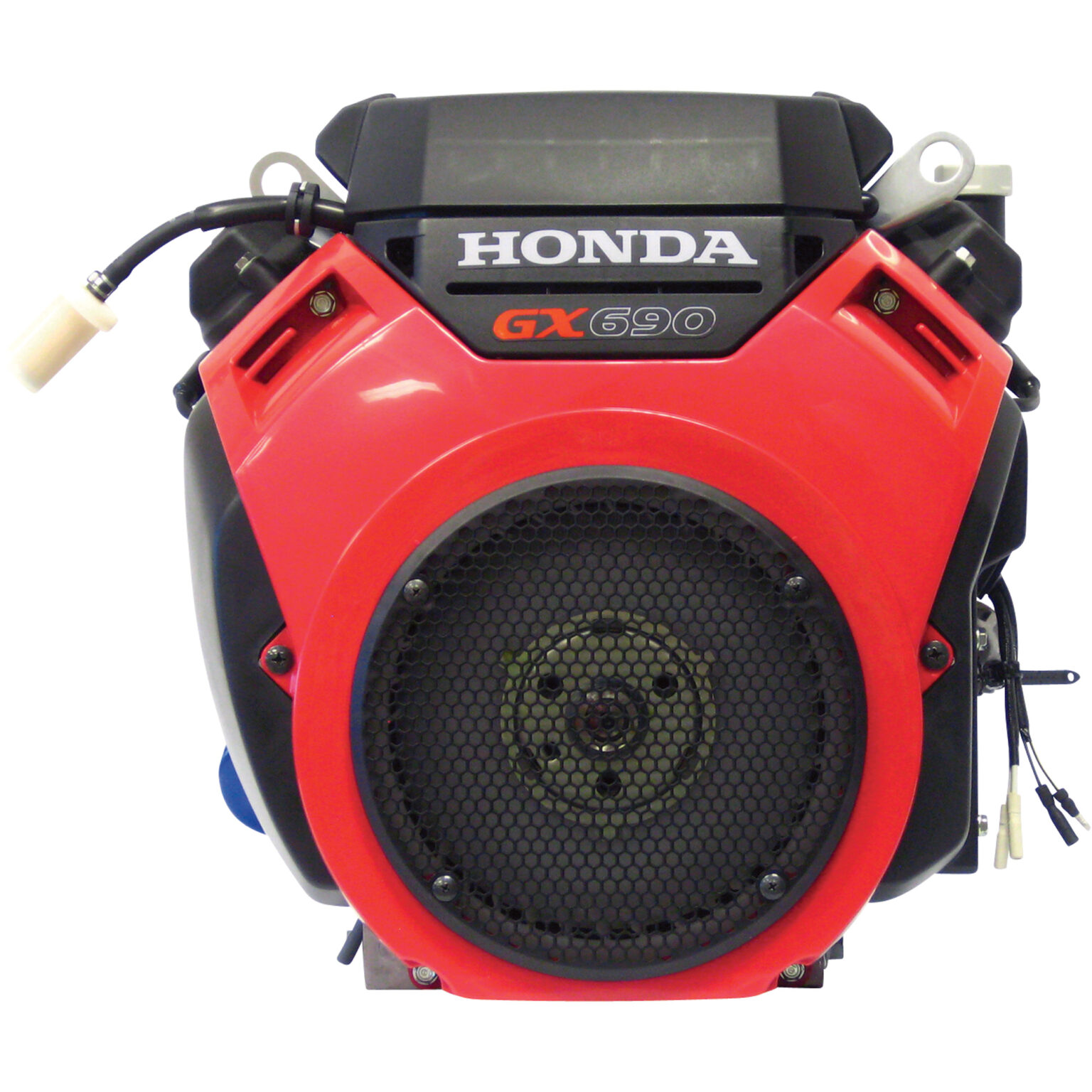

The Honda 688cc GX Series V-Twin Engine is designed to offer higher horsepower, improved adaptability, quiet operation and greater fuel economy. Meets EPA and CARB emission levels standards. This engine is ideal for construction/industrial equipment, pressure washers, commercial lawn and garden equipment, tillers/cultivators, generators, ag equipment, small vehicles, water pumps and forestry equipment.n
| Item# |
13597 |
| Brand |
Honda Engines |
| Manufacturer’s Warranty |
3 year limited warranty |
| Ship Weight |
110.0 lbs |
| Engine Displacement |
688 cc |
| Engine Type |
GX Series OHV V-Twin |
| Net Power Output |
22.1 HP |
| Start Type |
Electric |
| Shaft Diameter |
1 1/8 in |
| Shaft Length |
2.9 in |
| Net Torque |
35.6 ft-lbs. |
| Shaft Output |
Horizontal |
| Shaft Keyway |
0.25 in |
| Shaft End Tapped (Diameter (in.)/Threads per inch) |
7/16-20, UNF2B |
| Shaft Rotation (From PTO Shaft Side) |
Counterclockwise |
| Crankshaft |
T-type |
| PTO Height |
5.25 in |
| Bearing Type |
Ball |
| Cylinders (qty.) |
2 |
| Cylinder Bore |
Integrated |
| Compression Ratio |
9.3:1 |
| Cooling System |
Air cooled |
| Air Cleaner Type |
Dual element |
| Fuel Tank |
No |
| Fuel Type |
Gasoline |
| Fuel Filter |
Fuel strainer |
| Oil Capacity |
2.1 qt |
| Low Oil Alert |
No |
| Low Oil Shutdown |
No |
| Lubrication System |
Forced lubrication |
| Ignition System |
Electrical, digital CDI w/variable ignition timing |
| Governor System |
Mechanical |
| Carburetor |
Horizontal, two-barrel butterfly valve, internal vent |
| Throttle Control |
Remote |
| Choke Control |
Remote |
| Max. RPM |
3,600 |
| Charging System Amps |
20 |
| Muffler Included |
No |
| Auto Compression Release |
Yes |
| CARB Approval |
No |
| Bolt Circle |
5, 6.5, 7.75 in |
| Mounting Base Length |
7.68 in |
| Mounting Base Width |
3.39 to 4.65 in |
| Dimensions L x W x H (in.) |
15.9 x 16.1 x 17.2 in |
