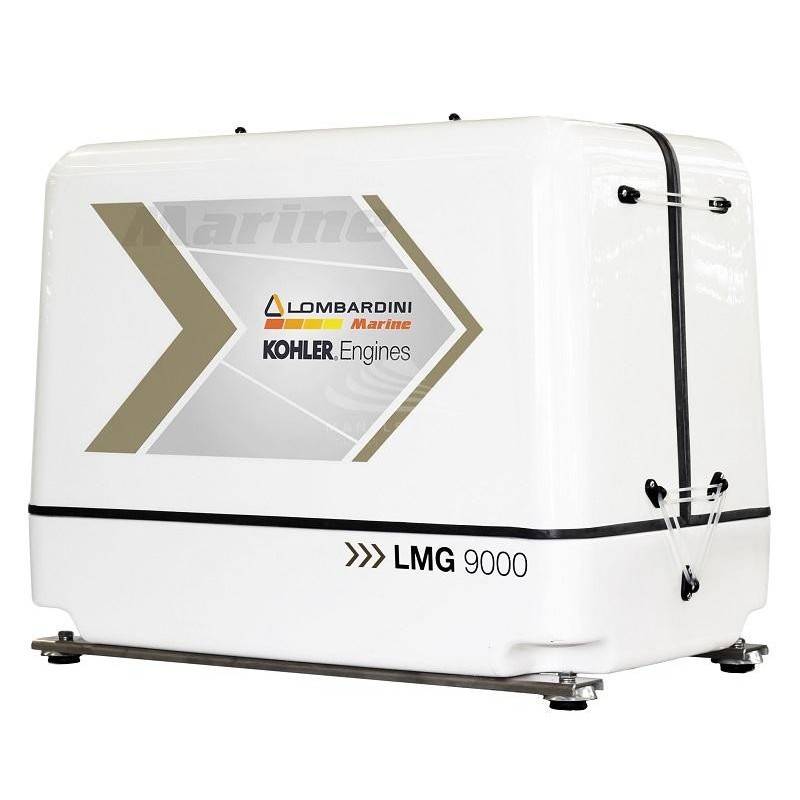

Lombardini LMG9000 Single-phase 10 KVA marine generator with 3000 rpm motor. The Lombardini LMG9000 marine generator is built with a soundproof capsule that makes it supersilenced. The Lombardini LMG9000 marine generator is built with a diesel-powered Lombardini LDW702MG engine. The alternator of the Lombardini LMG9000 marine generator is synchronous, with brushes and AVR voltage regulator. With its compact size and low weight, the Lombardini LMG9000 marine generator is also suitable for installation on small or medium-sized boats.
Motor
The marine generator is equipped with an engine FOCS (fully overhead controlling system) characterized by low noise, absence of vibrations and small size.
Alternator
The Lombardini LMG9000 is built withsynchronous type alternator with brushes and water cooled. Thanks to the AVR voltage regulator the delivered voltage is practically constant between ”empty” and rated power.
Cooling
The Lombardini LMG9000 marine generator is characterized by a FULL WATER cooling that involves both the engine and the alternator; the sea water, through a special circuit, cools the fresh water of the engine, the oil and the external walls of the marine generator set alternator.
Remote Control Panel
The Lombardini marine generator is equipped with a remote control and command panel with 15 m of cable and quick coect coector, complete with high water temperature and low oil pressure warning lights. A display indicates hours of operation, voltage, current output, and maintenance alerts. An additional control panel is available upon request.
Lombardini LMG9000 Supersilenced 10 KVA marine generator Specifications:
Phase : Single phasenContinuous power single phase (KW) : 8nContinuous power single phase (KVA) : 10nFuel : DieselnFrequency (Hz) : 50nVoltage (V) : 230nEngine : Lombardini LDW 702 MG, 4 strokenEngine rpm (rpm) : 3000nEngine capacity (cm³) : 686nNumber cylinders : 2nCooling : WaternAlternator : SynchronousnLength (mm) : 780nWidth (mm) : 480nHeight (mm) : 620nDry weight (Kg) : 178nBrushes : YesnProduct type : GeneratornVoltage regulator : AVRnEngine manufacturer : Lombardini
