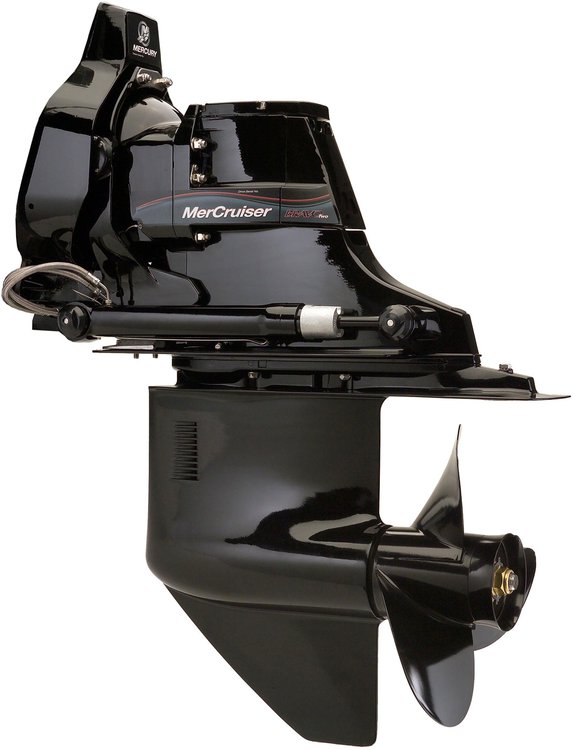

MerCruiser BRAVO TWO Sterndrive have an unmatched ability to maximize lift and thrust without breaking a sweat for cruisers and houseboats. Due to the girth of the gearcase, Bravo Two Diesel is capable of accommodating a huge 20-inch diameter prop with deeper gear ratios. This allows the Bravo Two Diesel to deliver high thrust around the dock, quick planing and improved fuel economy – putting you in control. Maintenance-free hinge pins allow for easy service without having to pull the boat from the water.Designed to deliver the thrust and lift that big cruisers and houseboats require, Bravo Two series drives are available in twin applications for petrol engines up to 450hp and deliver speeds up to 55mph.Due to their long-length design and the girth of the gearcase, Bravo Two drivesw can easily accommodate a huge 20-inch diameter prop with deeper gear ratios, providing high thrust, quick planing and improved fuel economy.Maintenance-free hinge pins allow for easy service without having to haul the boat, while permanent pivot points minimise maintenance time – meaning your boat spends less time in the shop and more time on the water.
MerCruiser BRAVO TWO Sterndrive Specifications:
Maximum Power Capacity : 400 HP (295 kW)nLower Unit Design : Extended Length StrutnMaximum Propeller Diameter : 1 X 20″nWater Inlet Location : StrutnClutch Type : High-Strength Smooth-Shift Cone Clutch with F-N-RnAvailable Gear Ratios : 1.81, 2.00, 2.20:1nCounter-Rotation : StandardnUpper Unit Gear Set : Precision Shimmed Assembly with Near-Net Forged Helical GearsnLower Unit Gear Set : Precision Shimmed Assembly Forged Bevel Gears with Twin Counter Rotating Propshafts for Bravo ThreenPropshaft Material : Heat-Treated Stainless SteelnStandard Exhaust Outlet : Through PropellernRequired Propeller Hub : Rubber HubnRecommended Lubricant : Mercury High-Performance Gear LubenMonitoring System : Engine-Mounted Lube Monitor w/Audio Warning or Engine Guardian®nCorrosion Warranty : 3-Year, LimitednHousing Construction : Corrosion Resistant XK 360 Aluminum Low-Copper AlloynCorrosion Protection : Tri-Paint, Anodes & MerCathode® Electronic Corrosion PreventioAnode Type : Ultra-Pure Aluminum Anodes or Magnesium Anode KitnSpeedometer Pick-up : Integrated Into Lower Housing, Digital Output OptionalnSteering System : Single Cylinder Power Steering with Anti-FeedbacknSteering Range : 56° Range Stop to Stop, Digital Output OptionalnU-Joint Type : Permalube® Virtually Maintenance-FreenPower Trim System : Twin-Cylinder Hydraulic Featuring Power Trim XD® Kick-up ReturTypical Trim Range : -5° to 11°nTrim Limit Switch : Adjustable Limit Analog or Digital – Engine DependantnTrailer Limit : 46°nTrim Hinge Pin Design : Permanently Lubricated – No Maintenance RequirednHydraulic Trim Lines : Stainless Steel Braided ArmornDrive Coupler : Greaseable From Inside BoatnDrive Weight : 137 lbs. (62 kg)
