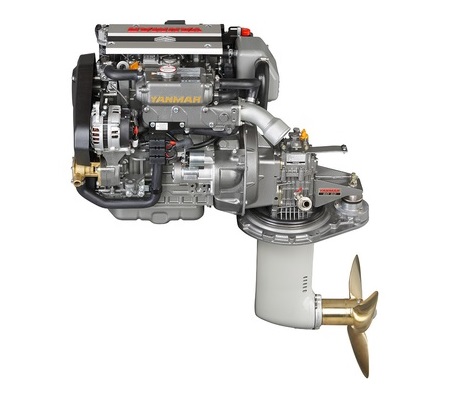

New Yanmar 3JH40 Inboard Diesel Engine 3 Cylinder, 1.64-liter diesel engine, Naturally Aspirated, Gears – KM35P / KM35A, Sail Drive – SD60. Wier of the Miami 2018 Iovation Award for the Inboard Engine category. YANMAR introduces the 3JH40 as the world’s smallest common rail inboard marine diesel engine in displacement, dimensions, and weight. The 3-cylinder 3JH40, with an output of 40 mhp, will enable a whole new category of smaller leisure boat owners and commercial vessel operators to benefit for the first time from the efficiency and performance advantages associated with the most recent electronically-managed CR fuel-injection technology. With an output of 40 MHP @ 3000 rpm (29.4 kW @ 3000 rpm), the 3JH40 is the smallest common rail inboard marine diesel in:* Displacement, with only 3 cylinders measuring 1.642 L (100 cu in)n* Physical size, measuring 774 x 580 x 632mmn* Weight, measuring 192kg without gearThrough common rail technology, the 3JH40 offers minimal fuel consumption and exceptionally low noise and emission levels, exceeding EPA Tier 3 and EU RCD Tier 2 emission regulations for virtually smoke and odor-free operation.The 4-stroke, water-cooled 3JH40 is an ideal solution for new builds and repowering applications, specifically monohull sailing yachts and catamarans up to 45ft, small motor boats or sloops, and light duty commercial craft.
Yanmar 3JH40 Inboard Diesel Engine Specifications:
Rated Output : 29.4 kW / 40 mhpnRated Speed : 3000 rpmnDisplacement : 1.642 L / 100 cu. iNo. of cylinders : 3 cylindersnCylinder Bore x Stroke : 88 mm x 90 mm / 3.46 in x 3.54 iCombustion system : Direct Injection, Bosch Common Rail SystemnAspiration : NaturalnAlternator : 12V – 125AnDry weight without gear : 192 kg / 423 lbsnDimensions : 774 mm x 580 mm x 632 mmnControls : Mechanical (optional – VC10 system)nCertifications : RCD 2, EPA Tier 3, EPA Tier 3C, BSO II, EMC, SOLAS
Standard Engine Package
– Exhaust mixing elbow [L-type]n- Alternator 12V – 125An- B25 paneln- Flexible mountsn- Mechanical throttle sensorn- Fuel pre-filter with water separatorn- Fresh water expansion tankn- Belt safety cover
Optional Accessories
– High-riser mixing elbow [instead of L-elbow]n- Secondary alternator 12V – 125A or 24V – 60An- C35 paneln- Extension harness [3m, 5m, 10m]n- Second statio- TFX Sidemount control headn- VC10 Vessel Control Systemn- NMEA2000 Engine monitoring systemn- Semi 2-polen- SOLAS including Certificate [factory fit only]n- Hot water kit with cocksn- Extension saildrive leg [75 mm]n- Propeller cone nut kit SD60n- On-board spare parts kit
