Name: ATK High Performance Chevy LM7 5.7L/347 Short Blocks SP75 - nhraceengines.nl
Price: 1969.00 EUR
Availability: InStock

ATK High Performance Chevy LM7 5.7L/347 Short Blocks SP75

€1,969.00

Chevy LM-7/LS 347CI Short Block +3.2cc Flat Top Pistons 24 Tooth

Description

Overview

Brand: ATK High Performance Engines

Manufacturer’s Part Number: SP75

Part Type: Short Block Engines

Product Line: ATK High Performance Chevy LM7 5.7L/347 Short Blocks

Summit Racing Part Number: HPE-SP75

UPC: 653517401565

Crate Engine Family: Chevy LS

Actual Engine Displacement: 5.7L/347

Rear Main Seal Style: 1-piece

Crankshaft Material: Cast iron

Piston Material: Forged aluminum

Short Block Piston Style: Flat top

Connecting Rod Material: Forged 4340 steel

Connecting Rod Beam Style: I-beam

Engine Block Material: Cast iron

Main Bolt Style: 6-bolt

Main Journal Type: Chevy LS

Engine Balance: Internal

Oil Pan Included: No

Timing Cover Included: No

Harmonic Balancer Included: No

Flexplate Included: No

Flywheel Included: No

Assembled: Yes

Remanufactured: Yes

Quantity: Sold individually.

Notes: 24X reluctor wheel. 3.2cc piston volume.

ATK High Performance Chevy LM7 5.7L/347 Short Blocks

ATK Chevy LM7 5.7L/347 short blocks provide a solid foundation for your build. Produced for the 1999-2007 trucks, LM7 engines are very popular engines to swap into muscle cars and other LS swap vehicles. ATK High Performance Chevy LM7 5.7L/347 short blocks are built for naturally aspirated engines up to 700 hp.

Your ATK LM7 engine may include these components for optimal performance:

* Block: GM LM7 5.3L
* Bore/stroke: 3.903 x 3.622
* Displacement: 5.7/347 c.i.d.
* Crankshaft: OE reground 3.622 in., internally balanced 24-tooth
* Connecting rods: Scat Premium Pro 4340 forged I-beam with ARP 8740 bolts
* Pistons: Wiseco 2618 forged aluminum with coated skirts
* Piston rings: Wiseco GFX (alloy steel top ring)
* Camshaft bearings: Installed and clocked to OEM position
* Freeze plugs: Brass installed and sealed
* Oil galley plugs: installed and sealed
* Weight: 285 lbs.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “ATK High Performance Chevy LM7 5.7L/347 Short Blocks SP75”

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

ATK High Performance Chevy LM7 5.7L/347 Short Blocks SP75

Overview

Reviews

MAECENAS IACULIS

ADIPISCING CONVALLIS BULUM

ATK High Performance 1988-92 Ford 460 Short Blocks SP11

ATK High Performance Chevy 377 Stroker Short Blocks SP15NB

ATK High Performance Chevy 383 Stroker Race Series Short Blocks SP35

ATK High Performance Chevy LS 408 Short Blocks SP26

ATK High Performance Chrysler 408 A Stroker Short Blocks SP61

ATK High Performance Chrysler 408 Mag Stroker Short Blocks SP57

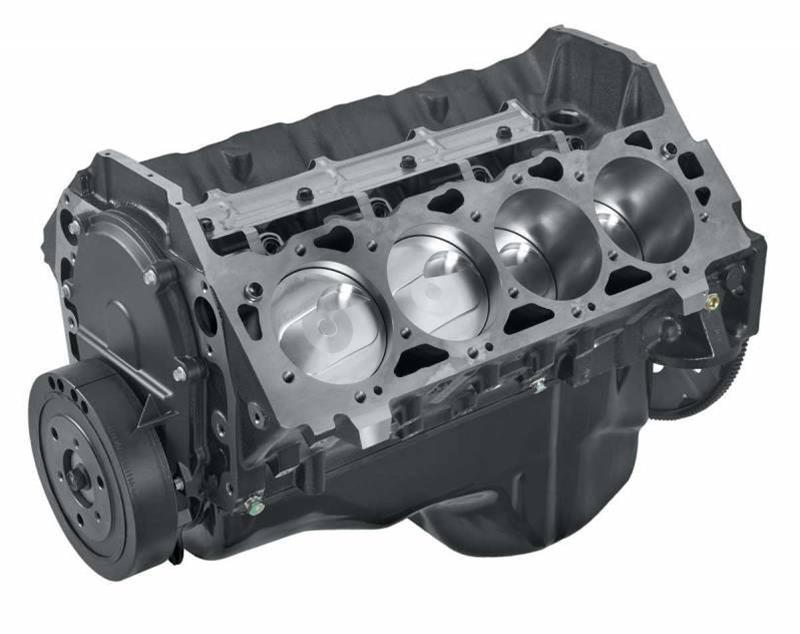

Chevrolet Performance 502 C.I.D. Short Blocks 19433158

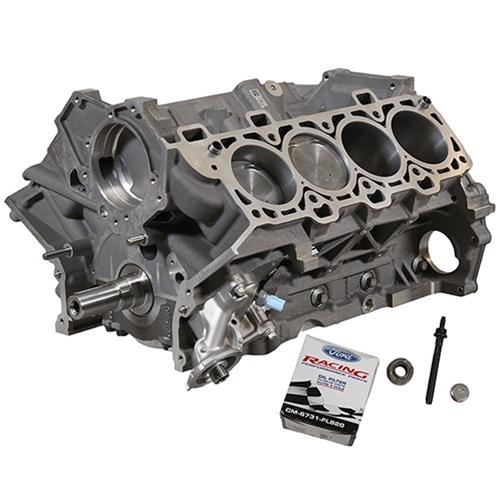

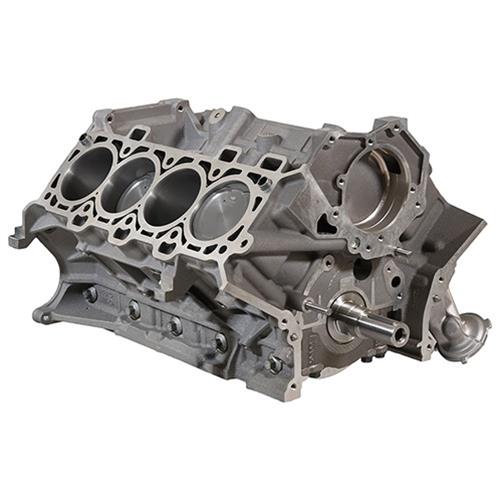

Ford Performance Parts 5.0L Gen 3 Aluminator Short Block Crate Engines M-6009-A50NAB
