Overview
Brand: ATS Diesel Performance
Manufacturer’s Part Number: 309-924-2272
Part Type: Automatic Transmissions
Product Line: ATS Diesel Performance Stage 2 Transmission Packages
Summit Racing Part Number: APF-3099242272
Number of Gears: 4
Bellhousing Bolt Pattern Manufacturer: Cummins
Transmission Shift Pattern: Standard
Valve Body Style: Automatic
Torque Converter Included: Yes
Flexplate Included: No
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Advertised Flash Stall Rating: 1,300-1,500 rpm
Trans-Brake Included: No
Lockup Compatible: Yes
Transmission Pan Style: Deep
Transmission Pan Material: Aluminum
Transmission Pan Finish: Black
Input Shaft Material: Steel
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Purple
Transmission Shield Built In: No
Flexplate Shield Built In: No
Transmission Fluid Included: No
Dipstick Included: No
Remanufactured: Yes
Quantity: Sold as a kit.

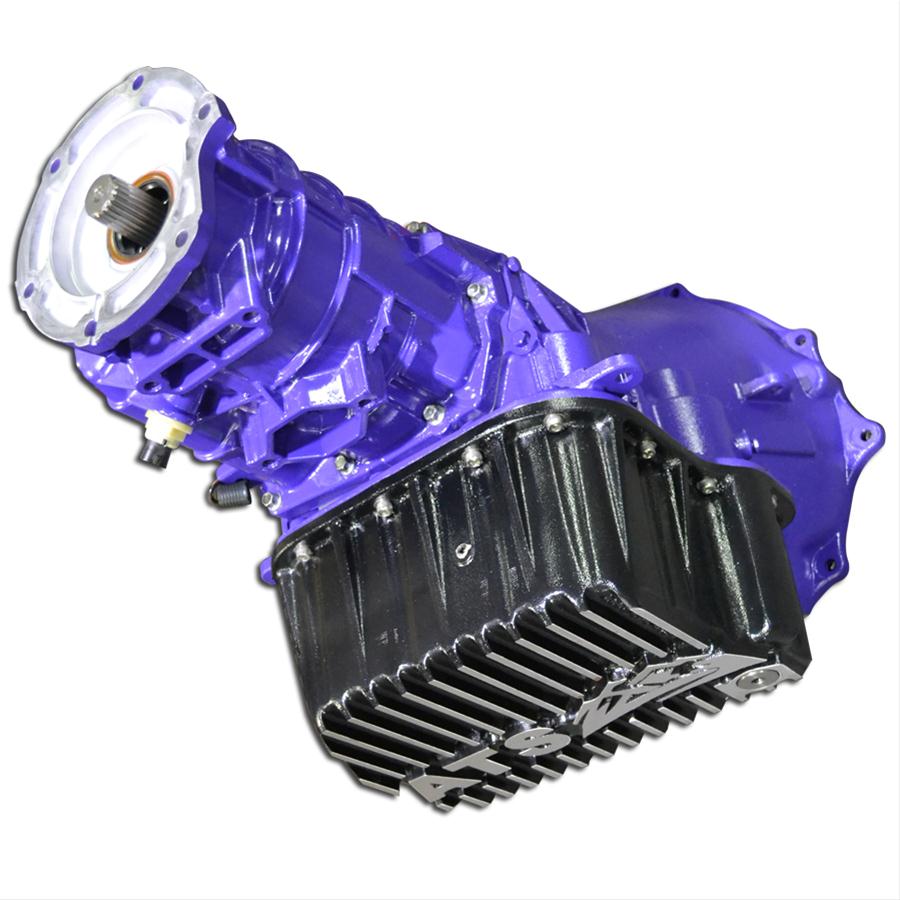

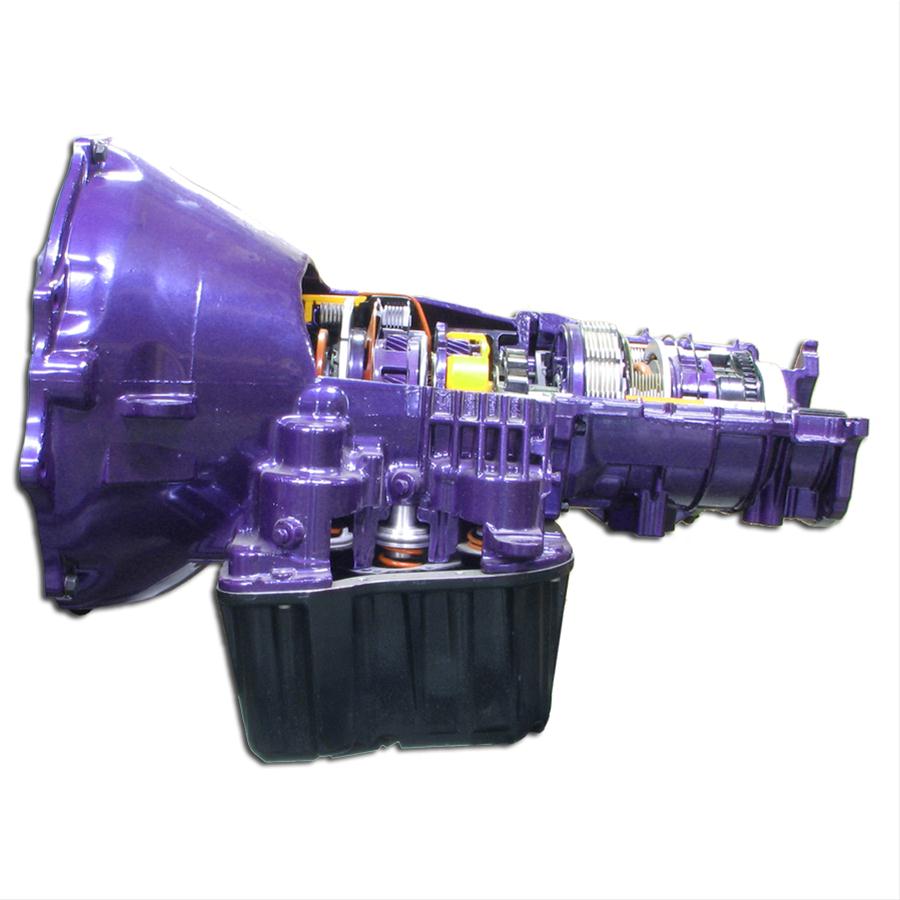

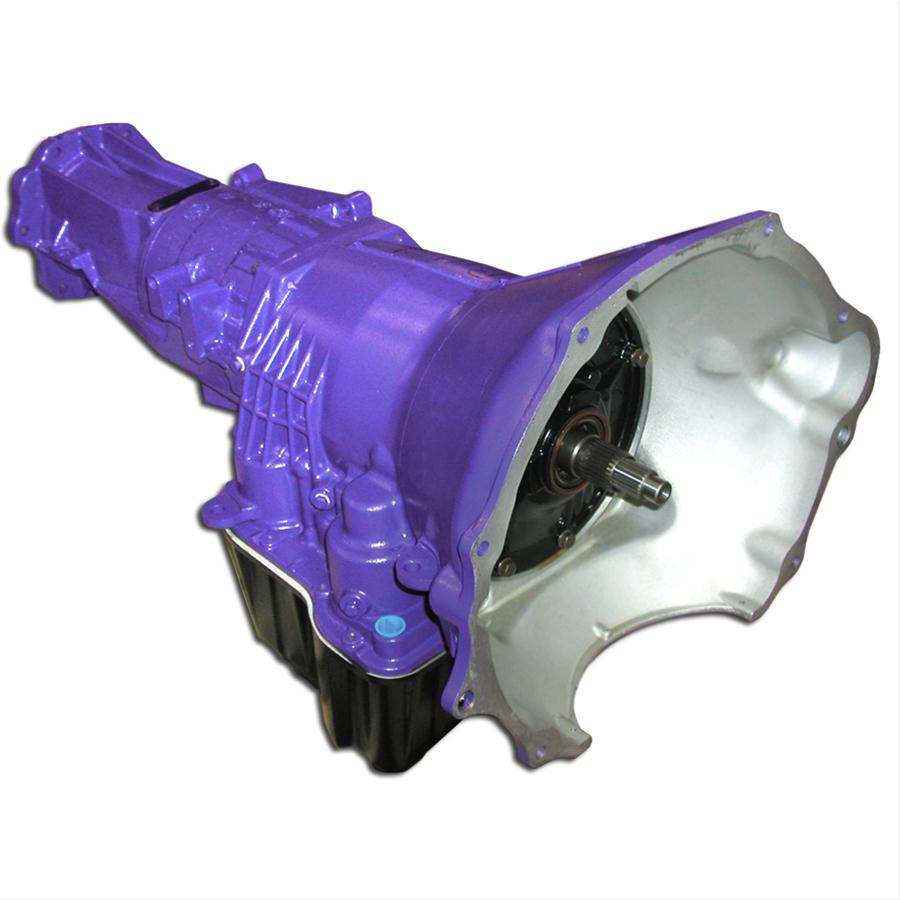

ATS Diesel Performance Stage 2 Transmission Packages
ATS Diesel Performance Stage 2 transmission packages eliminate the factory weaknesses and design flaws. Your transmission is stout enough to handle stock power, but what happens when the power is modified and goes above and beyond? Stage 2 packages deliver not only the ATS Five Star billet torque converters with patented Vikus clutch drives and deep pans, but also their revolutionary Co-Pilot electronic transmission controller or billet input shaft (depending on your application). All high-stress areas of the case are reinforced, and the external surface is sealed. Racer, puller, or long-hauler, ATS Diesel Stage 2 transmission packages will give you the edge.
