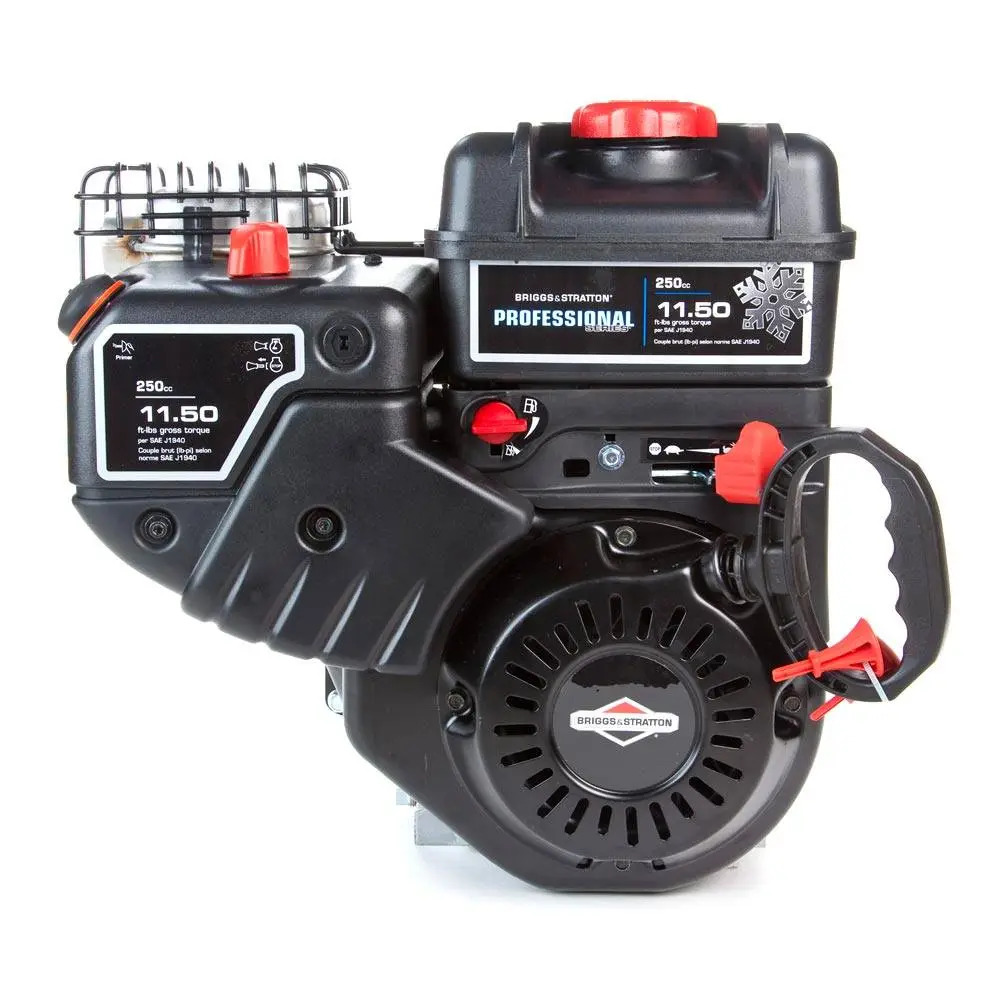

Briggs Stratton 15C104-3022-F8 horizontal Professional Series Snow engine is 250cc and puts out 11.5 gross torque. This snow engine has a 7/8″ x 2-9/32″ double step crankshaft (3/8-24 tapped) and is equipped with a 110V AC electric starter and 3A DC / 60W AC alternator. Briggs Stratton Snow Series engines are built to start easy, even in temperatures as low as -20 degrees F, and are built with oversized controls for easy operation in tough conditions. This engine is designed specifically for snow blowers. Buyer protection package provides two-year limited consumer engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.
Briggs Stratton 15C104-3022-F8 Snow Engine Key Specifications
| BRAND | Briggs Stratton |
|---|---|
| MODEL NUMBER | 15C104-3022-F8 |
| WARRANTY | 2 Year Consumer / 1 Year Commercial |
| SHIPPING WEIGHT | 65 |
| DISPLACEMENT | 250cc |
| STARTER TYPE | Electric with Recoil w/ Mit Grip Backup |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| CRANKSHAFT DIMENSIONS | 7/8″ x 2-25/32″ |
| CRANKSHAFT DIAMETER | 7/8″ |
| CRANKSHAFT LENGTH | 2-25/32″ |
| CRANKSHAFT END TAPPED SIZE | 3/8 – 24 |
| CRANKSHAFT KEYWAY WIDTH | 3/16″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Plain PTO |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Aluminum Alloy |
| FUEL TANK | Yes |
| FUEL PUMP | No |
| OIL CAPACITY | 20 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| MAX RPM | 3600 |
| CHARGING SYSTEM | 3 |
| FLYWHEEL | Heavy |
| NOTES | Engine Notes: |
| PTO HEIGHT | 4 – 11/64 |
