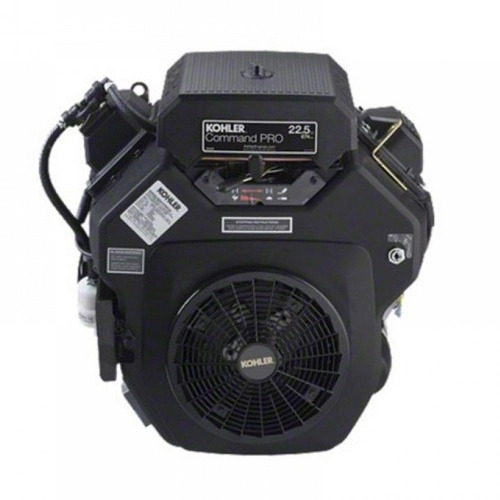

Kohler CH680-3003 674cc 22.5 HP V-Twin OHV Air-Cooled Command PRO Series Gas Engine, 1.5-inch x 3.94-inch Tapered Crankshaft, Electric Start, CH680 series engines were previously rated 23 HP but are now rated 22.5 HP, Image may not reflect exact details of specific engine model
Key Specifications
| BRAND | Kohler |
|---|---|
| MODEL NUMBER | CH680-3003 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 107 |
| DISPLACEMENT | 674cc |
| STARTER TYPE | Electric |
| CRANKSHAFT ORIENTATION | Horizontal |
| FUEL SYSTEM | Gasoline |
| CRANKSHAFT DIMENSIONS | 1.5″ Tapered x 3.94″ |
| CRANKSHAFT DIAMETER | Tapered |
| CRANKSHAFT LENGTH | 3.94″ |
| CRANKSHAFT KEYWAY WIDTH | None |
| CYLINDERS | 2 |
| AIR CLEANER TYPE | Large Capacity Dual Element |
| FUEL PUMP | Yes |
| OIL COOLER | No |
| OIL CAPACITY | 60 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Smart-Choke |
| CHOKE CONTROL | Manual and Remote |
| BOLT CIRCLE | 5-5/8; 7-3/4 |
| NOTES | Engine Notes: |
