Brand: Detroit Speed Inc
Manufacturer’s Part Number: 032070-RDS
Part Type: Front Suspension Packages
Product Line: Detroit Speed SpeedRay Front Suspension Packages
Summit Racing Part Number: DSR-032070-RDS
UPC: 090127167168
Wheel Bolt Pattern: 5 x 4 3/4 in.
Crossmember Included: Yes
Crossmember Material: Steel
Crossmember Color: Black powdercoated
Welding Required: Yes
Front Spindles Included: Yes
Spindle Material: Forged aluminum
Spindle Finish: Natural
Upper Control Arms Included: Yes
Lower Control Arms Included: Yes
Control Arm Style: Tubular
Control Arm Material: Steel
Control Arm Color: Black
Upper Ball Joints Included: Yes
Lower Ball Joints Included: Yes
Rack and Pinion Included: Yes
Steering Rack Type: Hydraulic power assist
Rack Material: Aluminum
Rack Color: Natural
Shocks Included: Yes
Shock Type: Double adjustable coilover with remote reservoir
Coilover Springs Included: Yes
Coilover Spring Rate (lbs/in): 550 lbs./in.
Spring Finish: Black
Disc Brake Kit Included: No
Front Rotor Included: No
Front Caliper Included: No
Brake Pads Included: No
Sway Bar Included: Yes
Center Link Included: No
King Pins Included: No
King Pin Bearings Included: No
Pitman Arm Included: No
Idler Arm Included: No
Tie Rod Sleeves Included: No
Inner Tie Rod Ends Included: Yes
Outer Tie Rod Ends Included: Yes
Quantity: Sold as a kit.
Notes:
Fabricated mount welds onto frame and uses a monoball upper shock mounts. Designed for small block and LS engines. Requires 17 in. or larger diameter wheels and C6 Corvette brakes.

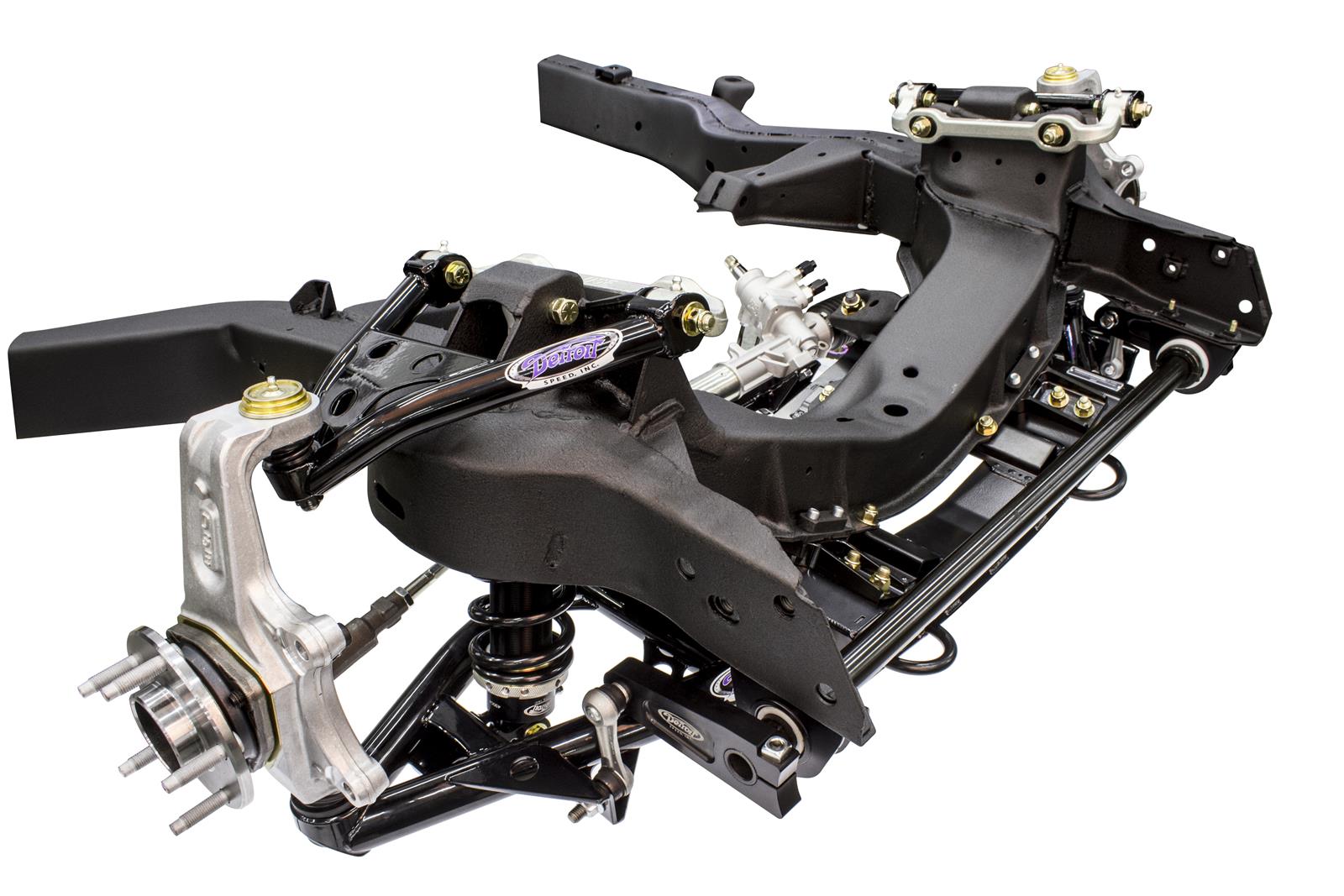

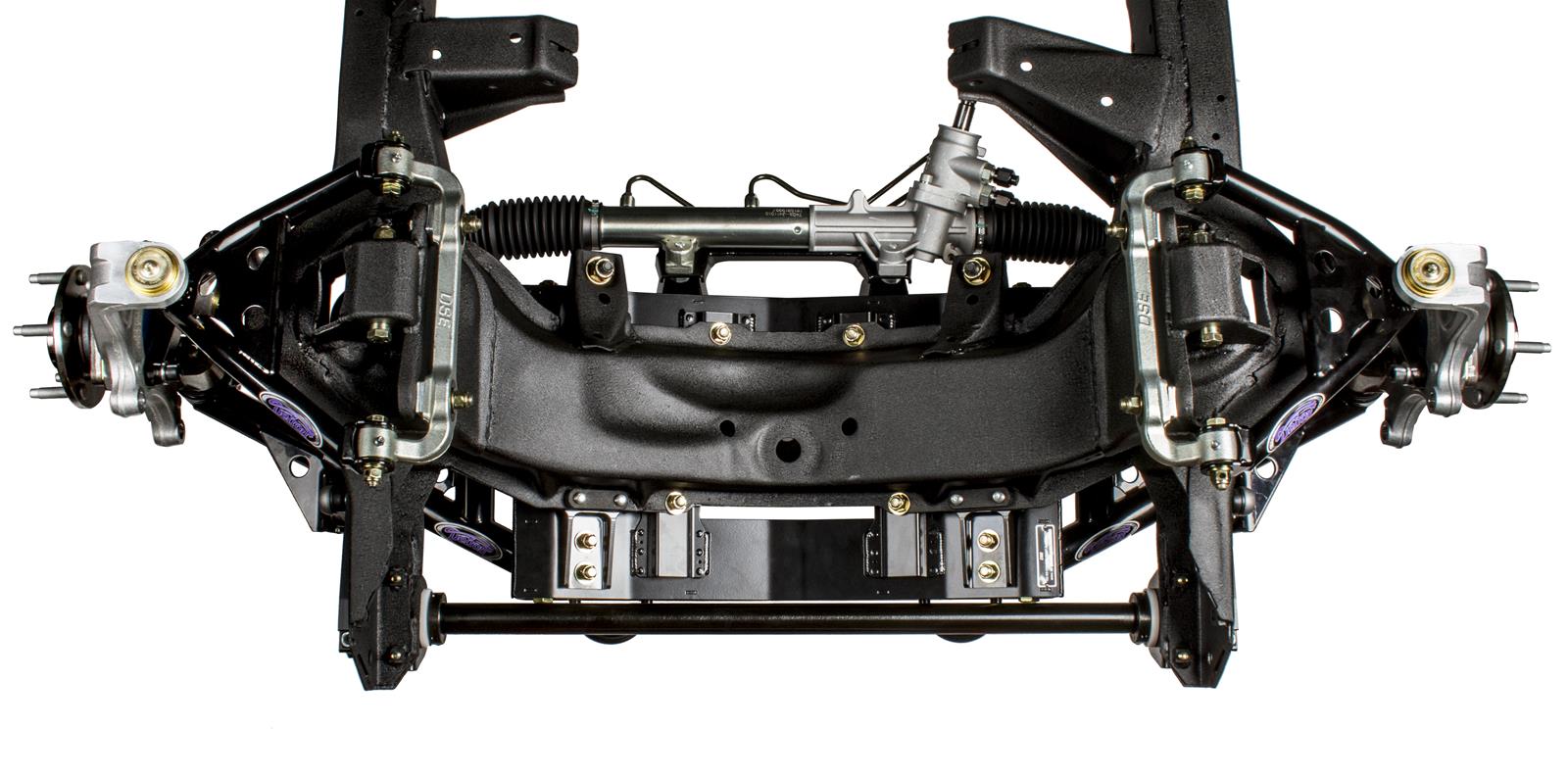

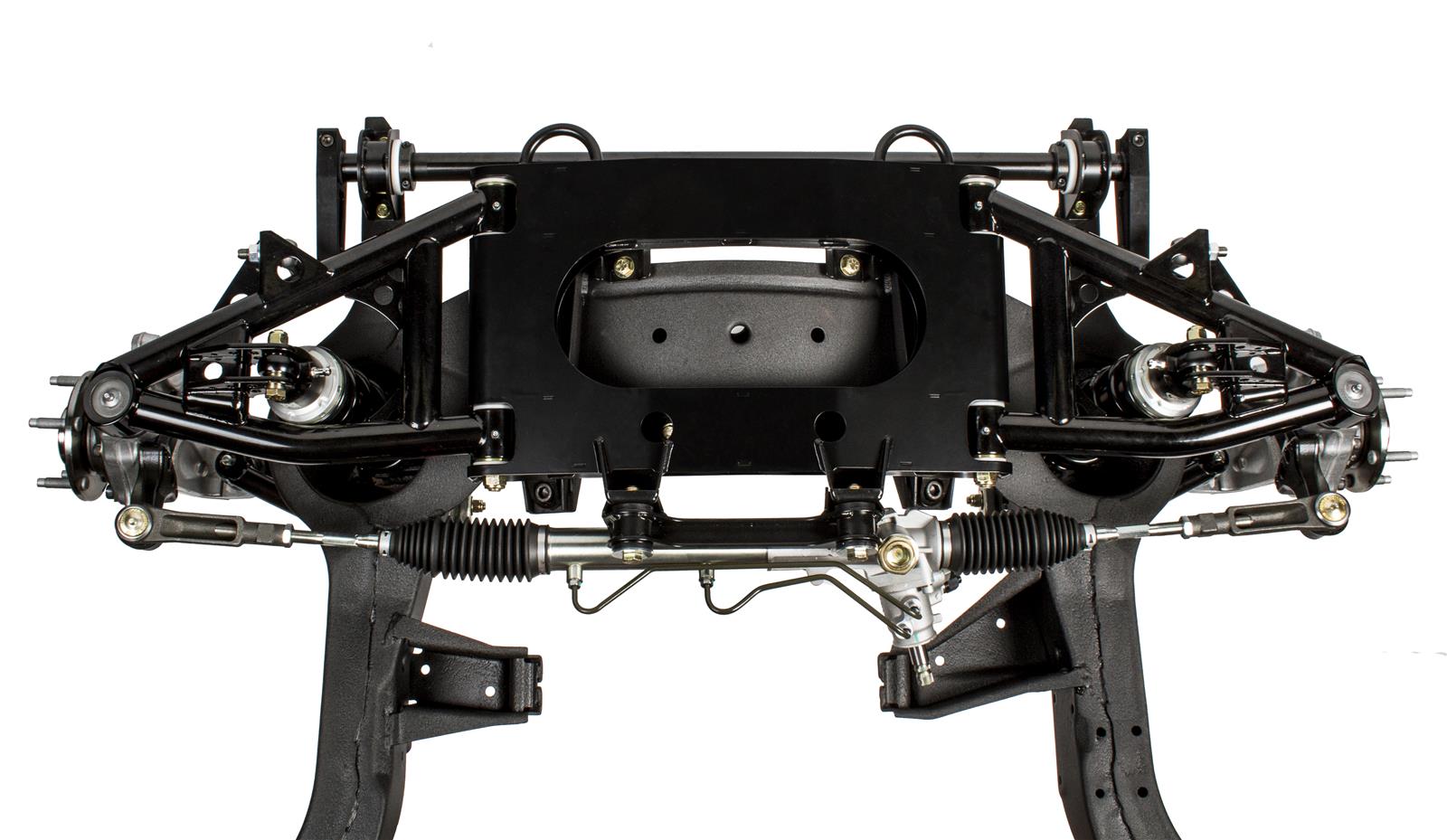

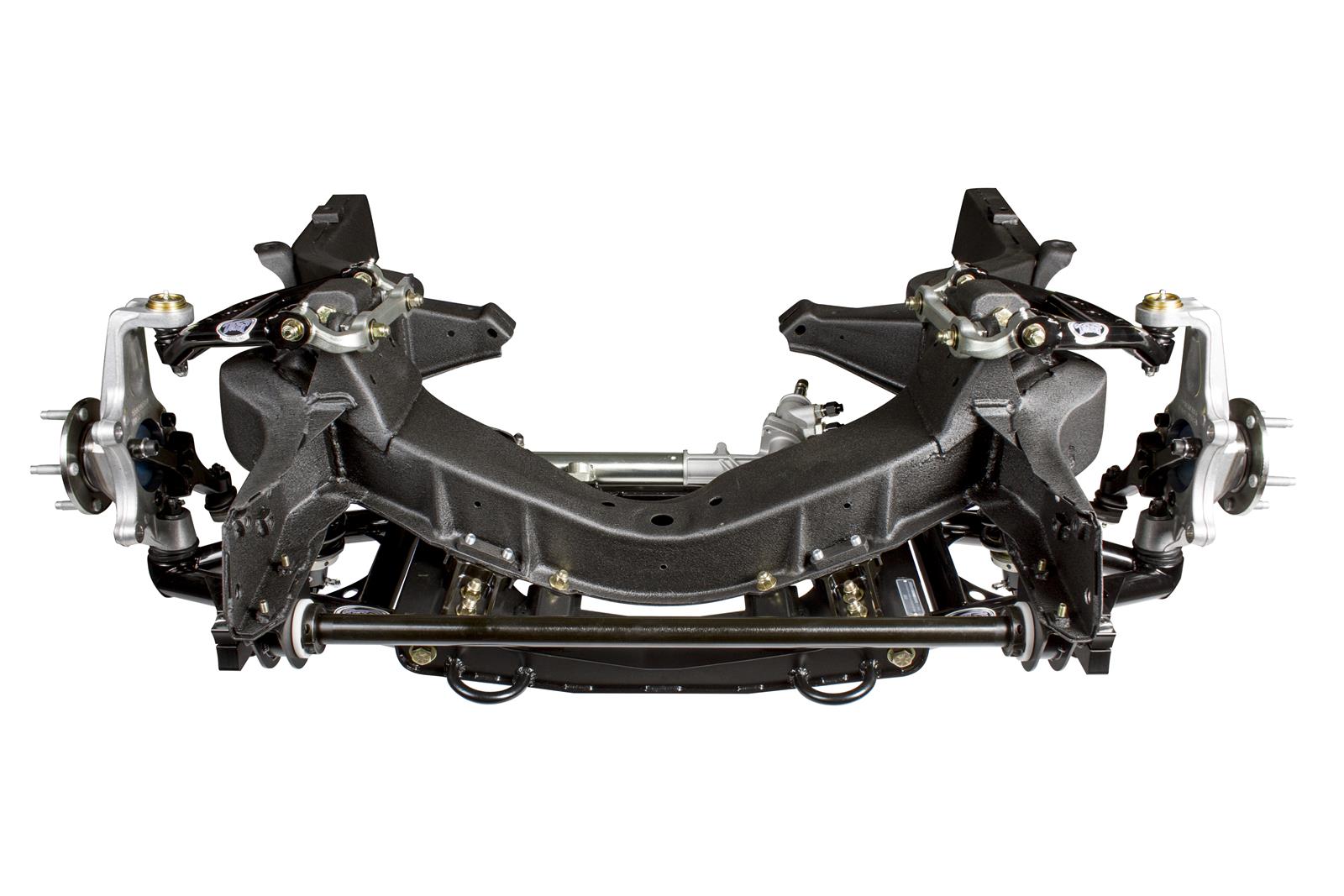

Detroit Speed SpeedRay front suspension systems offer a proprietary suspension geometry for superior handling and ride quality. They are available as a 100 percent bolt-on system or with a small amount of fabrication required for a competition coilover option that allows faster spring changes.

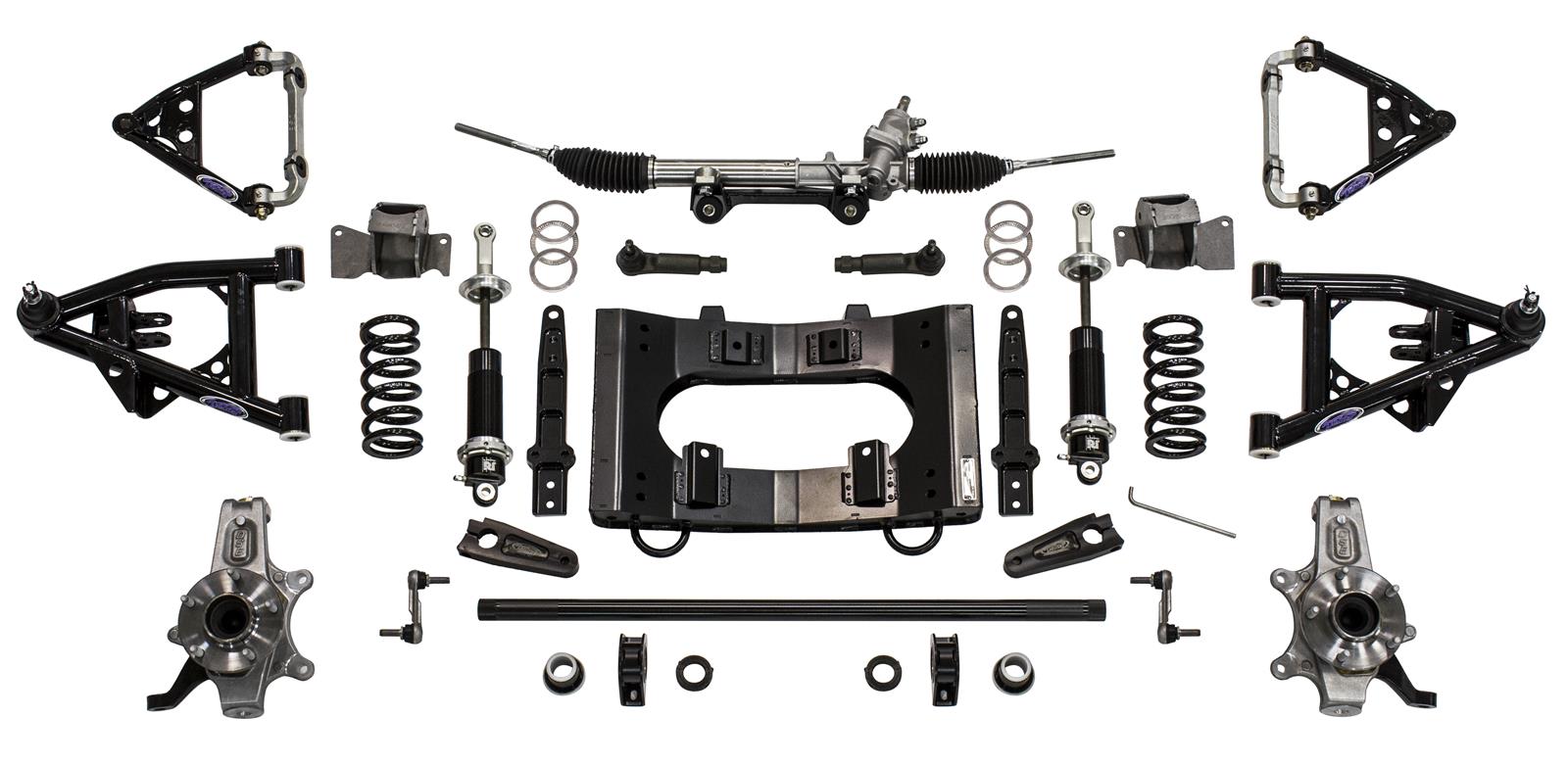

The system features “Detroit Tuned” quick ratio power rack and pinion steering along with forged Detroit Speed aluminum uprights. The bolt-on powdercoated cradle assembly improves suspension geometry, provides rigid mounting for the rack and pinion, and includes integrated tie down eyelets. DSE/JRi “Detroit Tuned” coilover shocks/springs allow for spring rate tuning and ride height adjustment. Also included are a splined sway bar with aluminum arms, composite bushings, powdercoated tubular upper and lower control arms with Delrin™ bushings, and forged offset upper control arm mounting brackets with caster tuner bushings to optimize suspension geometry and provide clearance for Gen V LT4 engines. Torrington bearings and a spanner tool for easy spring height adjustments complete the kits.
Please Note: The body and engine do not need to be removed for installation of the SpeedRay front suspension.
