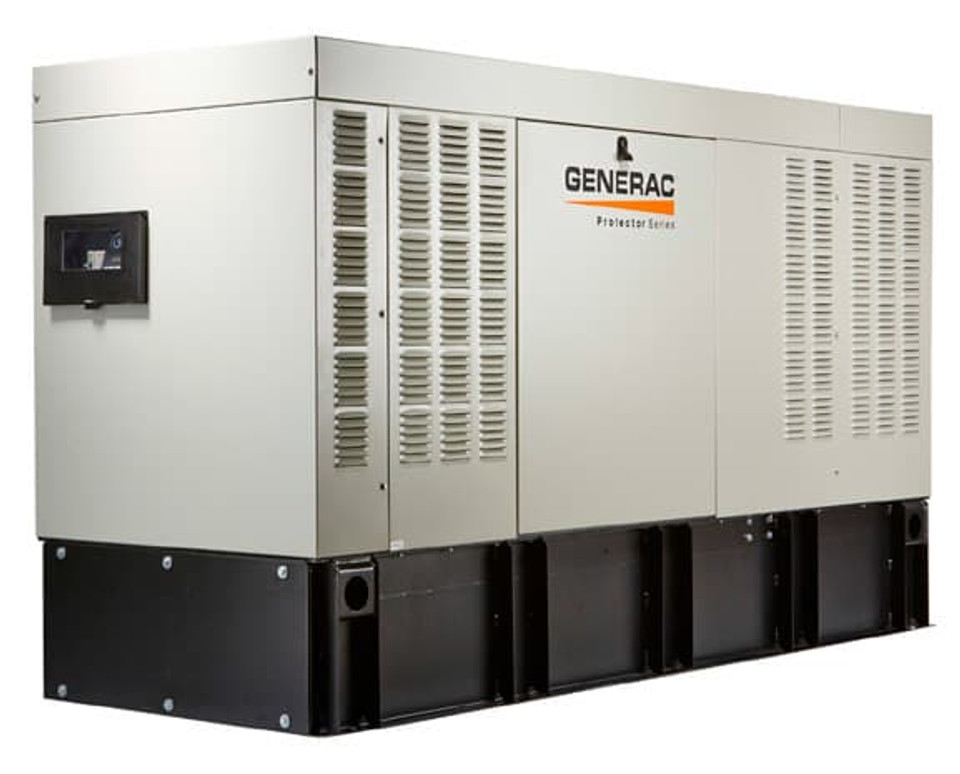

Generac 48kW Generator RD04833ADAE
The Generac 48kW Generator Protector Diesel Series restores power during an outage for all the conveniences and necessities of modern living and work life. Seconds after an outage hits, the 48kW generator system starts and restores power to the home or business for refrigeration, heating and cooling, office equipment, pumps, and lighting. With a 48kW Generator, your home or business operates as usual through a power outage.
An integrated 57-Gallon Tank Provides up to 28 hours of run time.
Generac guarantees its Protector Series with a five-year limited warranty.
Code Ready 48 kW Generac Generator
“Code Ready” features and optional accessories eliminate the lengthy configuration process to to make local code compliance easy and straightforward.
Be Sure to Review the Pre-Order Checklist located in the documents.
Code Ready Accessories include the UL/CUL-142 listed, externally vented and filled double-walled tank, an emergency stop, and fuel cut off, a fuel spill and recovery system, locking fuel caps, and low-fuel alarms, among other Code Ready Accessories.
48kW Generac Generator Diesel Engine
The 48kW Generator comes equipped with a Generac liquid-cooled, turbocharged and aftercooled 3.3-liter overhead-valve, in-line, four-cylinder diesel engine with cast iron cylinder heads and aluminum pistons. It features built-in protection from high engine or oil temperature, low oil pressure, and over-crank/over-speed conditions with engine shutdown to prevent damage and issue alerts for maintenance. The engine operates at 1800 RPM.
Generac 48 kW Generator
The Evolution Controller manages all aspects of the Generac 48 kW Generator operation. It has a two-line, multi-lingual display with a back-lit, membrane keypad that displays generator status at glance with colored LEDs and provides access to the Evolution’s reports and alerts and allows programming of exercise periods and maintenance scheduling.
Protector Series Generators come equipped with Mobile Link Connectivity. Monitor generator status from anywhere with a smartphone, tablet, laptop, or PC. Access status and maintenance alerts. Connect with authorized service dealers for fast, proactive service.
Eliminate trips outside to check the display with an optional Basic or Advanced wireless monitor. View generator status with the basic model, or step up and add reports, alerts, and programming functions with the advanced model.
The RD04833A is single phase only, for 3 phase voltage please view the RD05033 Generac 50kW Generator.

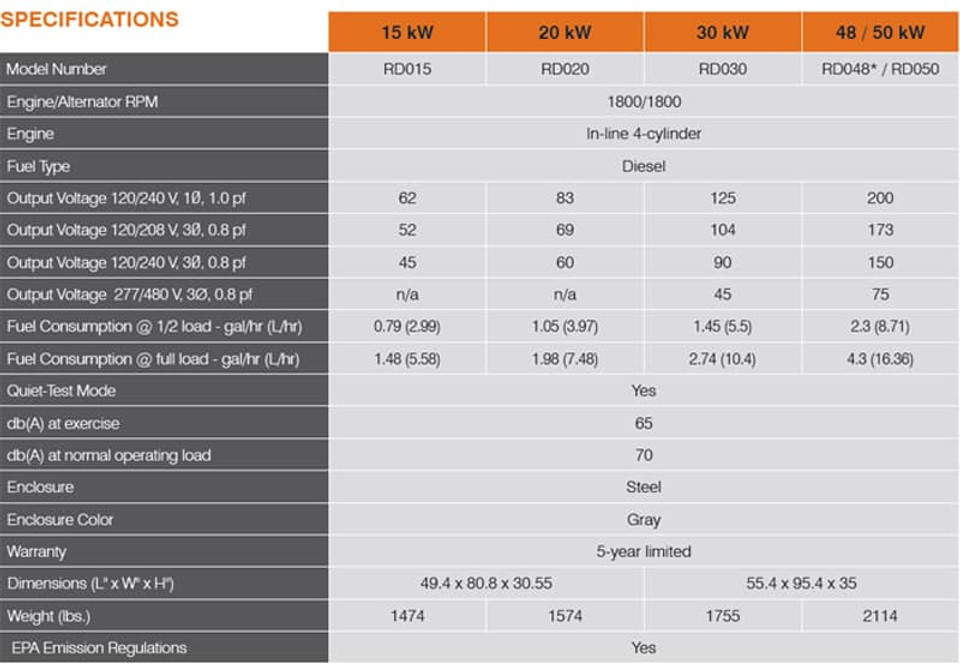

Product Specifications
Model
Model Number; RD04833ADAE
Manufacturer; Generac Power Systems
Made In USA; Yes
Rated Watts; 48kW
Rated Amps; 200
Voltage; 120/240 Volts Single Phase
Enclosure; Aluminum
UL Listed; Yes
Decibel Rating; 65 dBA Quiet Test Mode / 70 dBA under load
Type; Standby Generator
Series Name; Protector Diesel
Transfer Switch Model; Sold Separately
Features
Starting System; Automatic Start
Low Oil Alert; Yes
Mainline Breaker; 200-Amp
Hour Meter; Yes
Battery Requirement; 12V, Group 27F, 700 CCA or Group 31, 925 CCA
Mounting Pad; Requires Prepared Site
Weight; 2215 lbs.
Dimensions; 95Lx35Wx57H
Warranty Information
Consumer Warranty; Generac 5-Year Limited Warranty
Commercial Warranty; Generac 5-Year Limited Warranty
Engine
Engine Brand; Generac
Engine Size; 3.3L Turbocharged Inline 4 Cylinder
Engine RPM; 1800
Cast Iron Sleeve; Yes
Cooling System; Liquid Cooled
Alternator
Alternator Type; 3-Wire Heavy Duty Revolving Field
Frequency; 60 Hz
Auto Voltage Regulation; Yes
Fuel
Fuel Type; Diesel
Fuel Gauge; Yes
Fuel Tank Material; Steel
Fuel Tank Size; 57 gallons
Run Time (50% Load); 28 Hours
