Product Summary

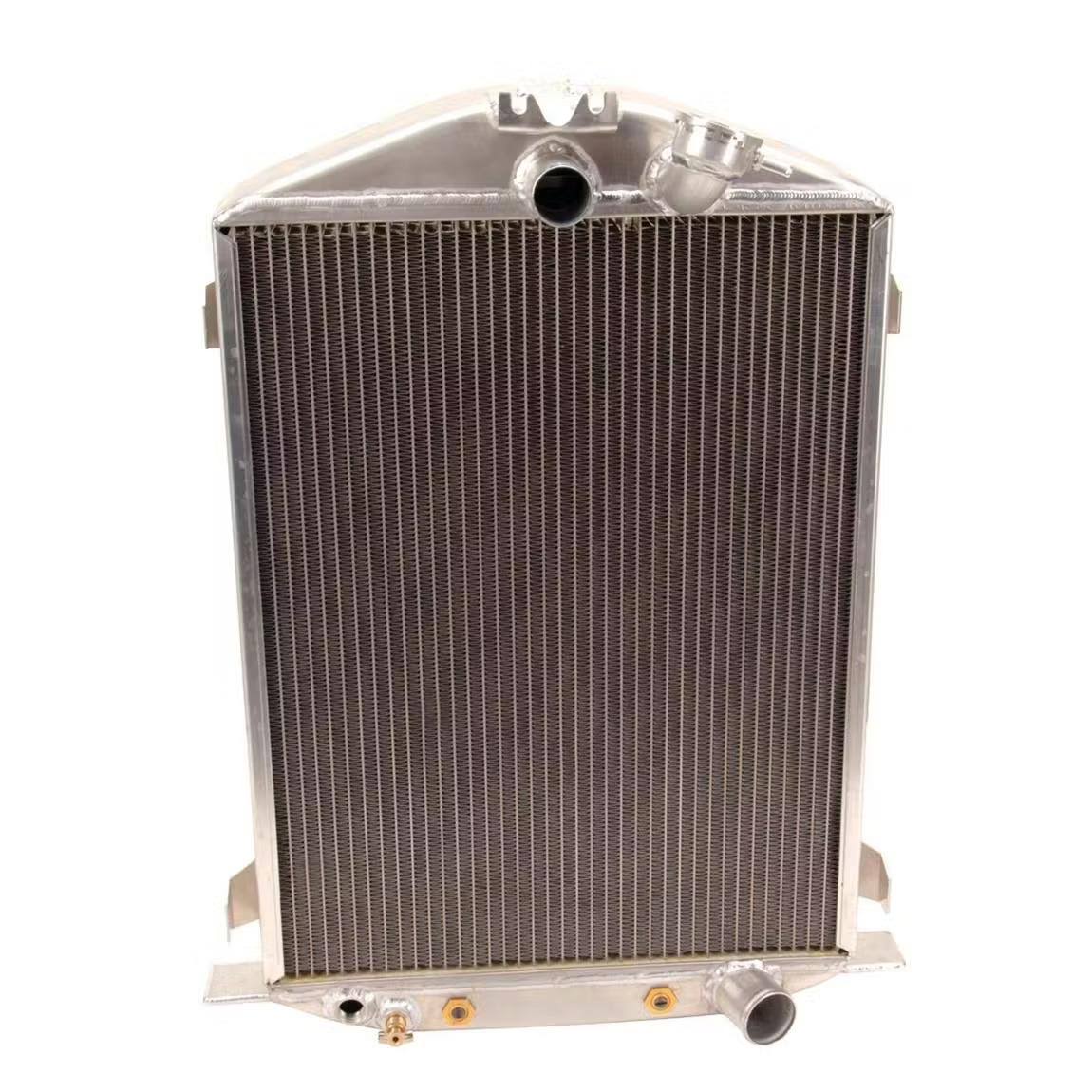

Single Pass Radiator Style, Aluminum, 2 Row Quantity
- Hood support brackets are included
- Features a built-in HD automatic transmission oil cooler
- Has brackets on side for grill shell and on top for support rods
- It provides 40% greater tube-to-fin contact over a copper/brass radiator
- This radiator is specially designed for the 1932 Ford Chassis w/ SB Chevy
Details
Griffin Aluminum radiators give superior cooling over a brass/copper radiator. They feature 2 rows of 1.25″ tubes furnace brazed into the core which provides 40% greater tube-to-fin contact over a copper/brass radiator. These radiators are designed for use on 1932 Ford Chassis with a small block Chevy engine.
- Built-in HD automatic transmission oil cooler
- Hood support brackets are included
- Brackets on side for gille shell
- Brackets on top for support rods
- No “dummy” filler neck
Charts
KEY SPECS |
|
|---|---|
| MFG. Part # | 7-70088 |
| Brand | Griffin Radiators |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Aluminum |
| Inlet Location | Center |
| Outlet Location | Lower passenger side |
| Row Quantity | 2 |
| Tube Size | 1.25″ |
| Overall Width Range | 17.00″ to 17.99″ |
| Overall Width | 17.38″ |
| Overall Height Range | 27.00″ to 27.99″ |
| Overall Height | 27″ |
| Overall Thickness | 3″ |
| Core Width Range | 22.00″ to 22.99″ |
| Core Width | 22″ |
| Core Height Range | 17.00″ to 17.99″ |
| Core Height | 17.375″ |
| Core Thickness | 2.69″ |
| Finish | Natural |
| Cooling Fan | Not Included |
| Transmission Cooler | Yes |
| Shroud Included | No |
| Radiator Cap Included | No |
GENERAL |
|
| Inlet Size | 1.50 |
| Outlet Size | 1.75 |
| Color | Silver |
| Fan Included | No |
| GTIN Code | 766897316319 |
| Sold in Quantity | Each |
