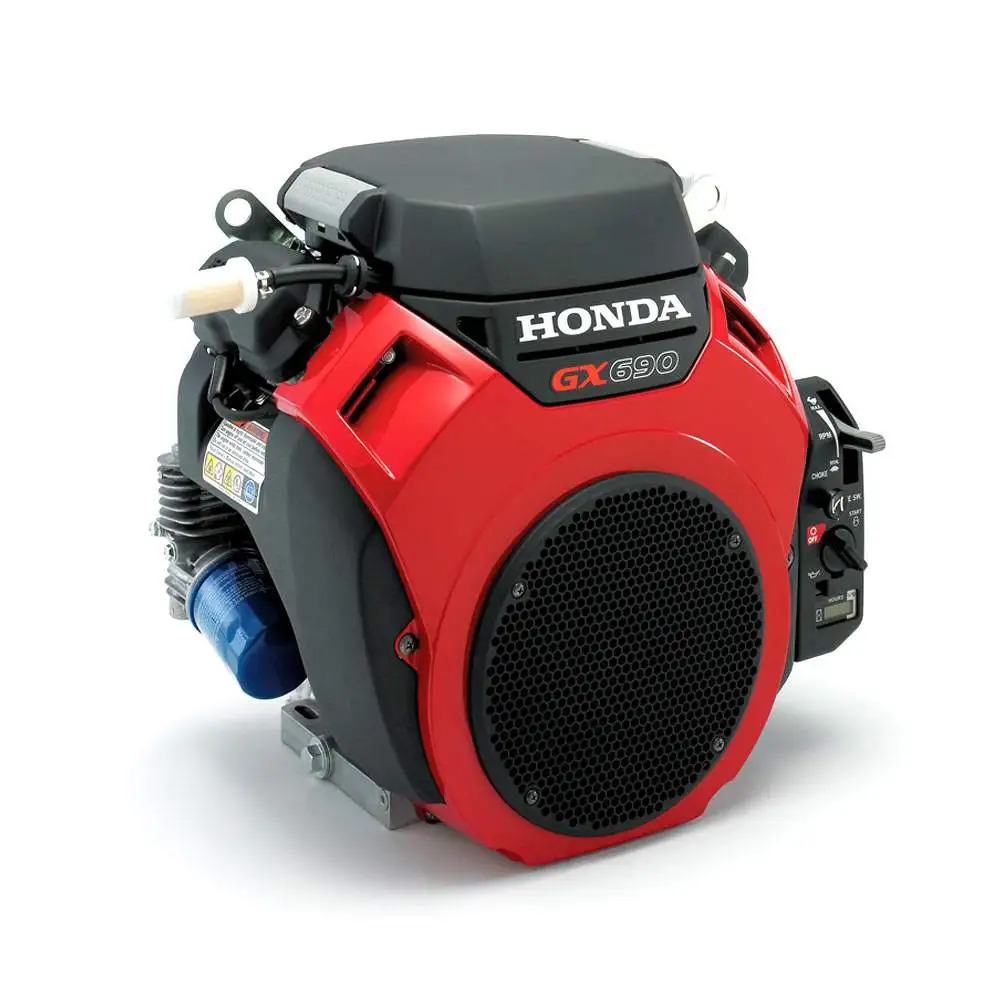

Honda GX690 BAF / GX690RHBAF OHV V-Twin Engine, 688cc, 22.1 Net HP, 1-7/16-inch x 4.37-inch Keyed Crankshaft, Tapped 5/8-18, 3/8 Keyway, 17 Amp Charging System, Key Switch, Manual Choke and Throttle Controls, Low Oil Pressure Switch, No Fuel Tank/Muffler.
Honda GX690 BAF Horizontal Engine Specifications
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX690-BAF |
| WARRANTY | 3 Year Limited |
| SHIPPING WEIGHT | 100 |
| DISPLACEMENT | 688cc |
| STARTER TYPE | Shift Type Electric |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1-7/16″ x 4.37″ |
| CRANKSHAFT DIAMETER | 1-7/16″ |
| CRANKSHAFT LENGTH | 4.37″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Ball |
| CYLINDERS | 2 |
| CYLINDER BORE TYPE | Cast Iron Sleeve |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | Yes |
| OIL COOLER | No |
| OIL CAPACITY | 2 qt |
| LOW OIL ALERT | Yes |
| IGNITION SYSTEM | Digital CDI with Variable Ignition Timing |
| CHOKE CONTROL | Manual |
| NOTES | Engine Notes: |
| PTO HEIGHT | 5 – 1/4 |
