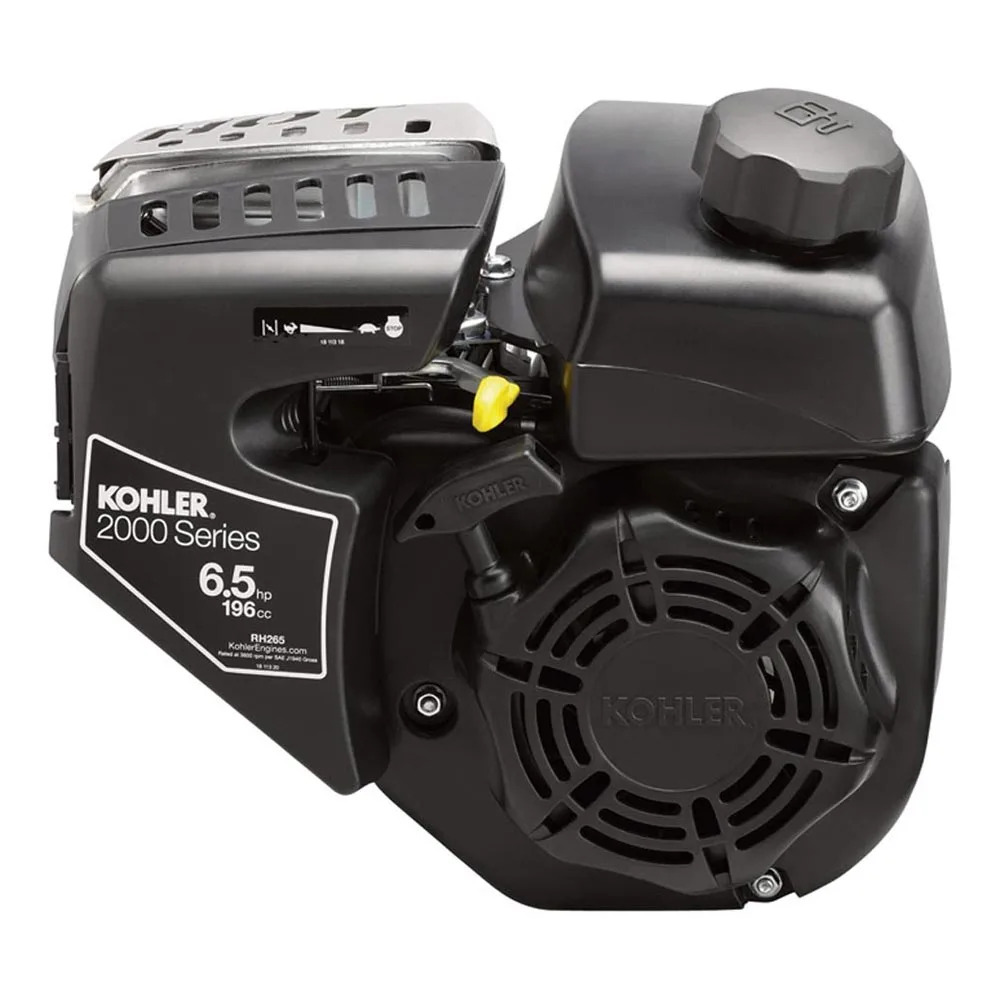

Kohler RH265-3103 horizontal single-cylinder OHV 2000 Series engine is 196cc and puts out 6.5 HP (maximum horsepower). This RH265 has a 0.75″ x 2.42″ crankshaft, an easy-pull recoil starter, quiet muffler with heat shield and variable speed. It replaces model PA-RH265-0001. 2000 Series Kohler engines are dependable and user-friendly while providing professional-grade power thanks to features like Easy-Pull starting technology and a compact, lightweight design. Buyer protection package provides a two-year consumer engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.
Key Specifications
| BRAND | Kohler |
|---|---|
| MODEL NUMBER | PA-RH265-3103 |
| REPLACES MODELS | PA-RH265-0001 |
| WARRANTY | 2 Year Consumer / 90 Day Commercial |
| SHIPPING WEIGHT | 33 |
| DISPLACEMENT | 196cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 0.75″ x 2.42″ |
| CRANKSHAFT DIAMETER | 0.75″ |
| CRANKSHAFT LENGTH | 2.42″ |
| CRANKSHAFT END TAPPED SIZE | 5/16 – 24 |
| CRANKSHAFT KEYWAY WIDTH | 3/16″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 1 |
| AIR CLEANER TYPE | Foam Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 20 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| BOLT CIRCLE | 3 -5/8″ |
| NOTES | Engine Notes: |
| PTO HEIGHT | 4 – 11/64 |
