Mercury Racing M8 Sterndrive – Ultimate High-Performance Marine Outdrive for Racing & Offshore Power
The Mercury Racing M8 Sterndrive is a premium, surface-piercing marine outdrive engineered for the most demanding high-horsepower applications. Combining robust internal components, a twin-pinion drive system, and a dry-sump design, the M8 delivers unmatched efficiency, reduced parasitic losses, and extreme durability. Its surface-piercing gearcase allows for a lower engine mounting profile, resulting in a lower center of gravity for superior boat handling, improved performance, and greater flexibility in hull and hatch design.
Rated for up to 1650 HP with an input torque capacity of 1600 ft-lbs, the M8 is built for twin-engine or multi-engine setups in offshore race boats, high-performance cruisers, and competition vessels pushing extreme speeds.

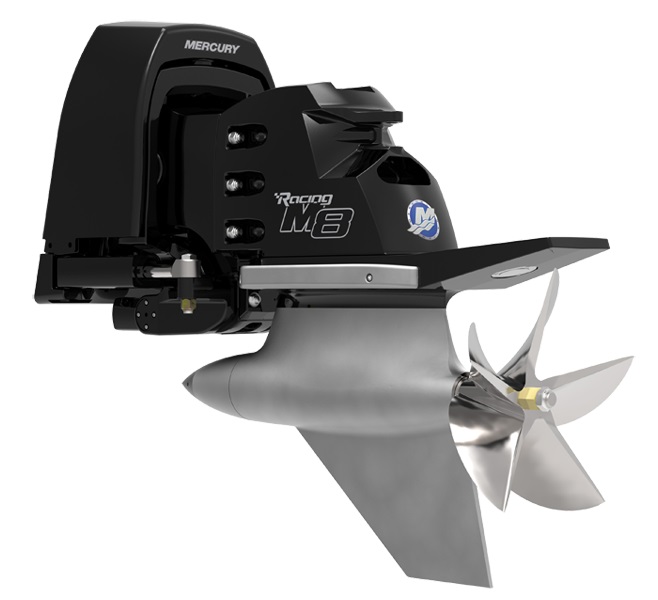

Mercury Racing M8 Sterndrive – sleek surface-piercing design with robust construction for extreme marine performance
Key Features & Benefits for High-Performance Boating
- Surface-Piercing Gearcase — Lowers engine position for better center of gravity, reduced drag, and enhanced handling; ideal for performance hulls.
- Dry-Sump Lubrication — Maximizes efficiency and power output by reducing parasitic losses and ensuring reliable lubrication under high loads.
- Twin-Pinion Drive & Robust Internals — Heavy-duty components handle massive torque (1600 ft-lbs) and power (1650 HP) with precision gearing for smooth, reliable transfer.
- Advanced Corrosion Resistance — Standard active anode system and durable materials for long-term saltwater durability in racing environments.
- Flexible Gear Ratios — Options including 1.69:1, 1.53:1, 1.40:1, and 1.30:1 to optimize for high-RPM engines, prop pitch, and vessel weight.
Cutaway view of M8 Sterndrive internals – twin-pinion and dry-sump design for maximum power delivery
Technical Specifications
| Specification | Details |
|---|---|
| Max Power Capacity | 1650 HP (1231 kW) |
| Input Torque Rating | 1600 ft-lbs |
| Available Gear Ratios | 1.69:1, 1.53:1, 1.40:1, 1.30:1 |
| Lower Unit Design | Surface-piercing gearcase |
| Lubrication | Dry-sump drive & transmission |
| Propeller Compatibility | Up to 18″ diameter (CNC cleavers recommended) |
| Corrosion Protection | Active anode + advanced materials |
| Drive Weight (Approx.) | ~290 kg (640 lbs) |
| Ideal Applications | Offshore racing, high-performance boats, competition vessels |
Advantages Table: M8 for Extreme Marine Performance
| Feature | M8 Benefit | Boating Advantage |
|---|---|---|
| Surface-Piercing Design | Lower engine mount & reduced drag | Improved handling, lower CG, better hull flexibility |
| Dry-Sump System | Minimal parasitic losses | Maximum efficiency & power output |
| Twin-Pinion & Robust Internals | Handles 1650 HP / 1600 ft-lbs torque | Reliable under extreme loads & high RPMs |
| High Power Capacity | Up to 1650 HP | Enables blistering speeds in race/offshore setups |
| Gear Ratio Flexibility | Multiple shallow ratios | Optimized for high-pitch props & top-end performance |
| Durability | Commercial/race-grade components | Longevity in demanding saltwater racing |
Comparison Table: Mercury Racing M8 vs MerCruiser Bravo One & Bravo Three
| Feature | Mercury Racing M8 (Surface-Piercing) | MerCruiser Bravo One (Single Prop) | MerCruiser Bravo Three (Dual Contra-Rotating) |
|---|---|---|---|
| Max HP (Gas) | 1650 HP | 600 HP | 525 HP |
| Design Focus | Surface-piercing, high-torque racing | High-speed single-prop performance | Balanced dual-prop efficiency |
| Torque Capacity | 1600 ft-lbs | Lower (recreational) | Lower (recreational) |
| Speed Capability | Extreme (offshore/race, 100+ mph potential) | 100+ mph in light hulls | Up to 65 mph (balanced) |
| Best For | Competition, offshore racing, high-HP builds | Sport boats, stepped hulls | Cruisers, towing, general performance |
| Efficiency/Handling | Optimized for speed & low CG | Top-end speed leader | Superior mid-range & control |
| Durability | Race-grade robust internals | High (X/XR variants) | Good recreational |
The M8 is purpose-built for extreme power far beyond recreational Bravo drives, prioritizing raw performance in competition environments.
Mercury Racing M8 Sterndrive profile – integrated transom system and surface-piercing lower unit for race-ready performance
Ideal Vessel Applications
- Offshore Race Boats — Handles massive HP for blistering speeds in rough conditions.
- High-Performance Custom Builds — Pairs with Mercury Racing engines like Dual Cal 1550/1350 or 1100 series.
- Competition & Poker Run Vessels — Extreme torque and reliability for multi-engine setups.
- Repower Projects — Upgrade for boats seeking race-level power over recreational sterndrives.
- Twin/Multi-Engine Configurations — Balanced thrust for 40+ ft high-speed hulls.
Frequently Asked Questions (FAQ) – MerCruiser & High-Performance Sterndrives at Hammer Engines
What is the difference between MerCruiser Bravo One, Bravo Two, Bravo Three, and Mercury Racing M8 sterndrives?
- Bravo One: Single-prop, high-performance design focused on top-end speed (up to 100+ mph) for racing, offshore, and stepped-hull boats. Max ~600 HP.
- Bravo Two: Single large-prop (up to 20″) for heavy thrust on big cruisers, houseboats, and displacement hulls. Max ~450 HP.
- Bravo Three: Dual contra-rotating props for balanced efficiency, quick planing, and precise handling on cruisers and tow boats. Max ~525 HP.
- Mercury Racing M8: Surface-piercing, extreme high-torque (up to 1650 HP / 1600 ft-lbs) for offshore racing and competition. At Hammer Engines, we help match the right sterndrive to your boat and engine—contact us for expert recommendations.
How do I choose the right gear ratio for my MerCruiser Bravo sterndrive? Gear ratios (e.g., 1.36:1–2.43:1 for Bravo series) depend on engine HP, boat weight, hull type, and desired performance (speed vs. acceleration). Deeper ratios (higher numbers) improve low-end thrust for heavy loads; shallower ratios favor top speed. Use Mercury’s prop selector tool or consult Hammer Engines—we provide free custom recommendations based on your setup for optimal RPM and efficiency.
What maintenance is required for MerCruiser Bravo sterndrives?
- Change gear lube annually (use Mercury High Performance Gear Lube).
- Inspect/replace sacrificial anodes regularly to prevent corrosion.
- Flush cooling system after saltwater use (flush kits available).
- Check bellows, U-joints, and trim system.
- Follow Mercury’s Operation, Maintenance & Warranty manual. Hammer Engines offers maintenance kits, parts, and expert advice—worldwide shipping available.
How do I protect my sterndrive from corrosion, especially in saltwater? All MerCruiser Bravo sterndrives include aluminum sacrificial anodes, MercFusion paint, and (on some models) MerCathode electronic protection with a 3-year corrosion warranty (4 years on SeaCore). Rinse after use, monitor anodes, and add zincs in saltwater. For heavy saltwater exposure, consider X-Series upgrades or Konrad/Mercury Racing models with advanced protection. Hammer Engines stocks anodes, kits, and corrosion-resistant options.
Can I run my sterndrive engine out of the water briefly? No—never run without water cooling, as it causes overheating and impeller damage. Use a flush muffs kit connected to a hose for short tests. Hammer Engines supplies flush adapters and muffs for safe dry-land operation.
What causes common issues like no trim, gear slipping, or impeller failure in MerCruiser Bravo sterndrives?
- No trim: Faulty trim pump, solenoids, or hydraulic leaks.
- Gear issues: Worn dog clutch, low lube, or improper shifting.
- Impeller failure: Debris blockage, dry running, or old impeller. Regular maintenance prevents most problems. If troubleshooting, contact Hammer Engines for diagnostics, parts, or rebuild kits—we ship globally.
Is the Mercury Racing M8 sterndrive suitable for recreational boats? The M8 is race-oriented (surface-piercing, dry-sump, up to 1650 HP) for offshore competition and high-performance multi-engine setups. It’s overbuilt for most recreational use—consider MerCruiser Bravo for everyday boating. Hammer Engines pairs M8 with Mercury Racing engines like 1550/1350 for custom race packages.
Do you offer installation support or compatibility checks for Konrad 660B or Mercury Racing sterndrives? Yes—Hammer Engines (New York City-based) provides expert compatibility checks, gear ratio/propeller recommendations, and global shipping for Konrad 660B, M8, and all MerCruiser Bravo models. We handle repowers, twin setups, and high-performance builds with full technical support.
What warranty comes with sterndrives purchased from Hammer Engines? We stock genuine OEM units with full manufacturer warranties (e.g., Mercury’s corrosion and limited warranties). Contact us for details on specific models, extended options, or certified pre-owned units.
How do I order or get a quote for a sterndrive from Hammer Engines? Browse our marine sterndrives section, or contact our team for personalized quotes, propeller matching, engine pairing, and fast worldwide shipping. We’re here to help with your boat project!
