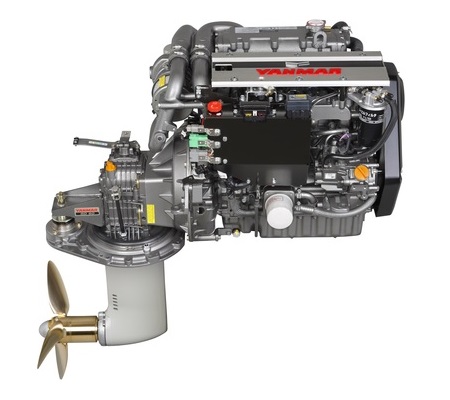

New Yanmar 4JH110 Inboard Diesel Engine 4 Cylinder 2-liter diesel engine, Turbocharged, Gears – KM4A2 / KMH4A / ZF25A / ZF30M. JH Series 28.7–92kW (39–125HP) Three and four-cylinder direct injection diesels with heat exchanger cooling. Choices of natural aspiration, turbocharged and turbo/aftercooler models, with straight drive or angle drive transmissions. Smaller horsepower models are also offered with Saildrive units.
Yanmar 4JH110 Inboard Diesel Engine Specifications:
Rated Output : 80.9 kW / 110 mhpnRated Speed : 3200 rpmnDisplacement : 2 L / 122 cu. iNo. of cylinders : 4 cylindersnCylinder Bore x Stroke : 84 mm x 90 mm / 3.31 in x 3.54 iCombustion system : Direct Injection, Bosch Common Rail SystemnAspiration : Turbocharged & IntercoolednAlternator : 12V – 125AnDry weight without gear : 229 kg / 505 lbsnDimensions : 909 mm x 613 mm x 675 mmnControls : Mechanical (optional – VC10 system)nCertifications : RCD 2, EPA Tier 3, EPA Tier 3C, BSO II, EMC, SOLAS
Standard Engine Package
– Exhaust mixing elbow [L-type]n- Alternator 12V – 125An- Seawater pump rear mountedn- B25 paneln- Flexible mountsn- Mechanical throttle sensorn- Fuel pre-filter with water separatorn- Fresh water expansion tankn- Belt safety cover
Optional Accessories
– High-riser mixing elbow [instead of L-elbow]n- Secondary alternator 12V – 125A or 24V – 60An- Seawater pump front mountedn- C35 paneln- Extension harness [3m, 5m, 10m]n- Second statio- Sidemount control headn- VC10 Vessel Control Systemn- NMEA2000 Engine monitoring systemn- Semi 2-polen- SOLAS including Certificate [factory fit only]n- Opposite dipstickn- Hot water kit with cocksn- Extension saildrive leg [75 mm]n- Propeller cone nut kit SD60n- On-board spare parts kit
