Buy MILLER FUSION 185 WELDER/GENERATOR W/ELECTRIC START (907781) Online

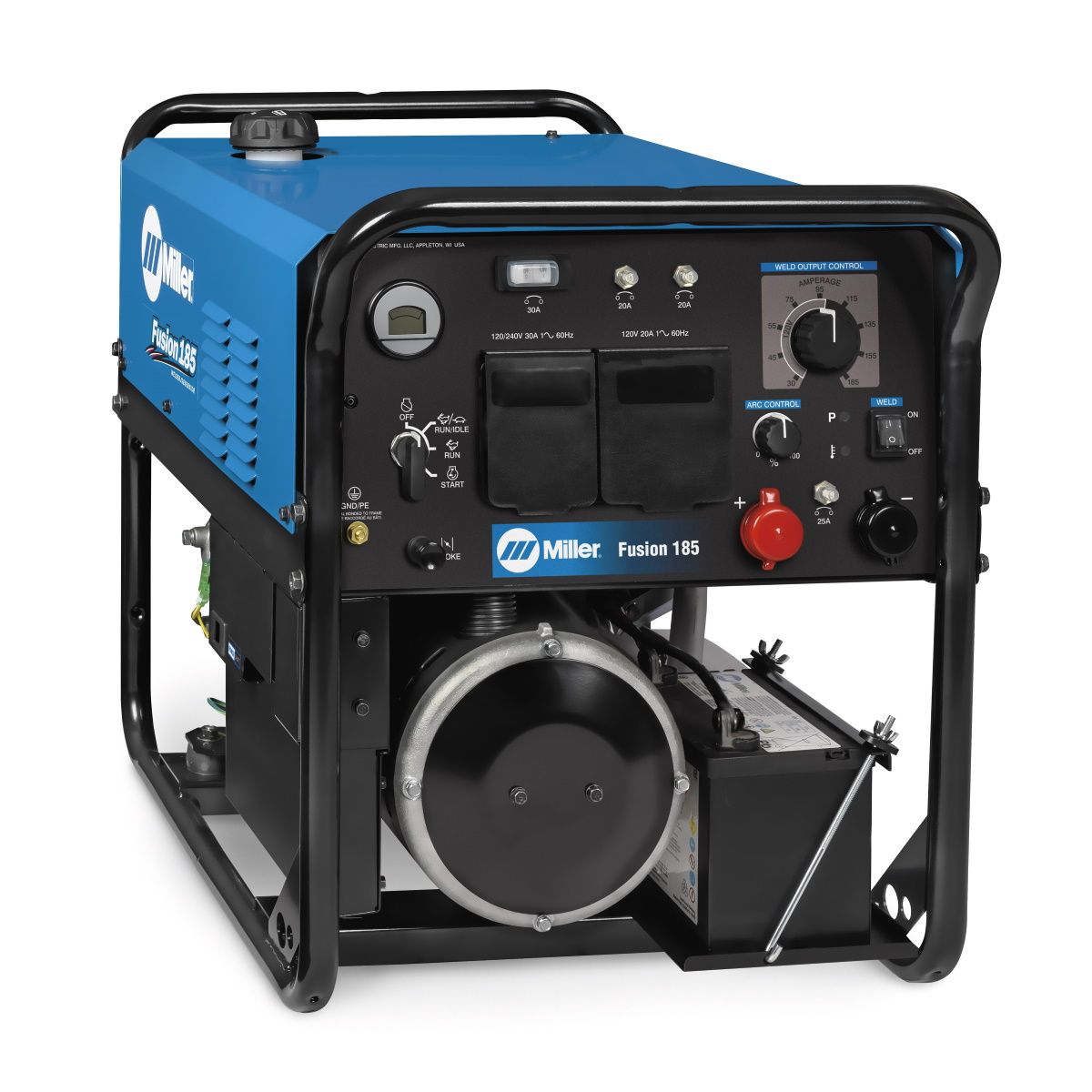

The MILLER FUSION 185 WELDER/GENERATOR offers the revolutionary “Power Shift” technology whereby the generator can be used on gasoline or 120/240V utility power. Power Shift allows the user to virtually weld anywhere – gasoline-powered in the field or switch to outlet power when moving indoors. The MVP (multi-voltage plug) allows the generator to plug into 120V or 240V outlet power. MILLER FUSION 185 WELDER/GENERATOR.
The Fusion 185 is capable of stick welding and air plasma cutting with the Spectrum 375. This generator features a 6,500 peak watt output, weighs only 222 lobs, and electric starting method. This model also includes the recoil start as a backup to the electric start. The Fusion uses inverter technology to deliver a smooth, stable stick arc that’s forgiving of variations in arc length and travel speed.
Features
• Power Shift Technology
• Lightweight (242 lbs.)
• 185A DC Output
• Gasoline or 120V/240V Input Power
Quick Specs
• Amperage Range: 30-185A DC
• Duty Cycle: 20% @ 185A, 100% @ 110A
• Engine: Kohler CH440 | 3.4 HP @ 3,600 RPM
• Fuel Capacity: 6.25 Gallons
| Brand | Miller |
|---|---|
| SKU | IMIL20180004 |
| MPN | MIL907781 |
| Mfgs MPN | 907781 |
| UPC | 715959700818 |
| Prop65 | Yes |
| Material | Mild Steel, Stainless Steel |
| Process | Stick |
| Max Amperage Output | 160 Amps |
| Usage | Industrial, Light Industrial |
| Phase | Single Phase |
| Manufacturer’s Warranty | 3 Years |
| Polarity | DC |
| Duty Cycle | 20% |
| Duty Cycle | 20% @ 160A |
| Portability | 246 lbs. |
| Skill Level | Beginner, Weekend Warrior, Career Welder |
| Input Voltage | 120, 240 |
| Discontinued Product | No |
