QA1 Level 3 Big Wheel Kits BW03-GMG1

€4,439.00

BIG WHEEL KIT, LEVEL 3, 78-88 GM G-BODY

Overview

Name: QA1 Level 3 Big Wheel Kits BW03-GMG1
SKU: 14202
Availability: InStock

Brand: QA1

Manufacturer’s Part Number: BW03-GMG1

Part Type: Suspension Handling Packages

Product Line: QA1 Level 3 Big Wheel Kits

Summit Racing Part Number: QA1-BW03-GMG1

UPC: 806990169358

Front Coil Springs Included: Yes

Rear Coil Springs Included: Yes

Rear Leaf Springs Included: No

Front Shocks/Struts Included: Yes

Front Shock Type: Double adjustable coilover

Rear Shocks/Struts Included: Yes

Rear Shock Type: Double adjustable coilover

Front Sway Bar Included: Yes

Front Sway Bar Color: Black

Front Sway Bar Type: Hollow

Front Sway Bar Diameter (in.): 1.250 in.

Front Sway Bar Diameter (mm): 31.75 mm

Rear Sway Bar Included: Yes

Rear Sway Bar Color: Black

Rear Sway Bar Diameter (in.): 1.250 in.

Rear Sway Bar Diameter (mm): 31.75 mm

Tie Rod Sleeves Included: Yes

End Link Bushings Included: No

Rear Leaf Spring Bushings Included: No

Sway Bar Bushings Included: Yes

Upper Trailing Arms Included: Yes

Lower Trailing Arms Included: Yes

Trailing Arm Mount Braces Included: No

Panhard Bar Included: No

Torque Arm Included: No

Upper Control Arms Included: Yes

Lower Control Arms Included: Yes

Control Arm Style: Tubular

Control Arm Material: Chromoly

Control Arm Color: Black

Front Strut Tower Bar Included: No

K-Member Included: No

K-Member Support Brace Included: No

Rear Strut Tower Bar Included: No

Subframe Connectors Included: No

Chassis Stiffener Included: Yes

Calipers Included: No

Rotors Included: No

Brake Pads Included: No

Brake Lines Included: No

Wheel Studs Included: No

Center Link Included: No

Spindles Included: No

Inner Tie Rod Ends Included: No

Outer Tie Rod Ends Included: No

Bushing Material: Polyurethane/Steel

Bushing Color: Black

Mounting Hardware Included: Yes

Quantity: Sold as a kit.

Notes: Allows for clearance for up to 24 in. wheels. Kit will give you up to 2 in. of lift above factory height on the front and up to 1 in. of lift or 3 in. of lowering in the rear.

QA1 Level 3 Big Wheel Kits

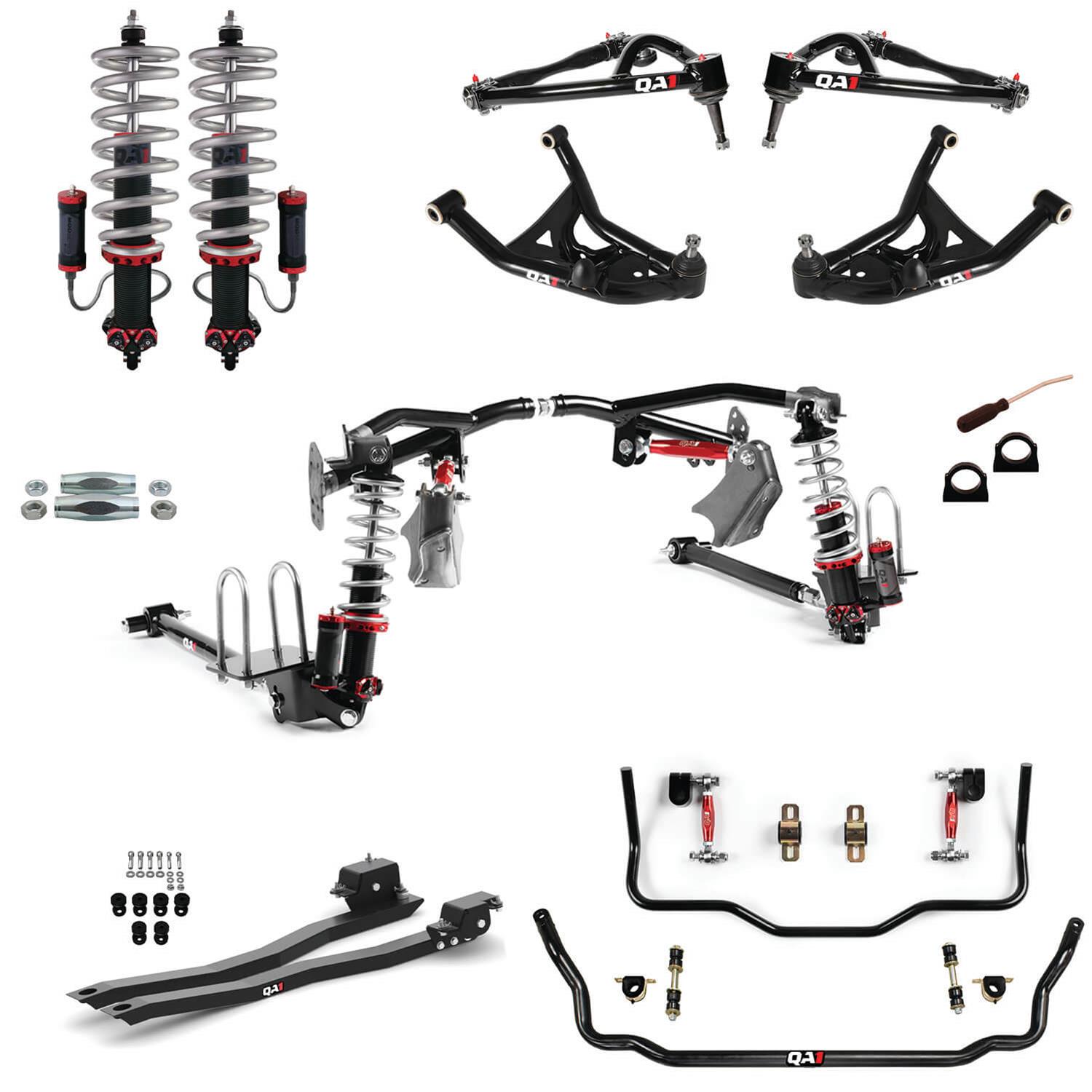

QA1 Level 3 Big Wheel kits are complete bolt-on suspension systems with control arms and sway bars to give your GM B-body or G-body the ideal stance, plus maximum performance with QA1 MOD Series shocks.

The front and rear MOD Series adjustable Pro Coil coilovers offer maximum shock tunability with high- and low-speed valving adjustability. Perfect for the street or drag racing, MOD Series shocks are for those looking to get the most out of their car.

QA1 Level 3 Big Wheel kits also include control arms, trailing arms, and sway bars for a complete bolt-on suspension system. The components are powdercoated and ready to install with the necessary hardware, making your installation hassle-free. Choose the kit designed for your vehicle.

Features and benefits:

* Front and rear MOD Series Pro Coil system
* Pro Touring upper control arms and Street lower control arms upgrade your front-end geometry for better drivability
* Control arms are designed specifically for big wheel cars with corrected suspension angles for large wheels and tires
* Adjustable lower and upper trailing arms center your rear axle in the wheel well, granting more clearance for larger wheels
* Front and rear sway bars reduce body roll and improve stability, and help reduce handling issues that come from big wheels and raised ride heights
* Tie rod adjuster sleeves
* Spanner wrench
* Canister mount
