Brand: RideTech
Manufacturer’s Part Number: 11030201
Part Type: Suspension Handling Packages
Product Line: RideTech 1955-57 Chevrolet Coilover Suspension Systems
Summit Racing Part Number: ART-11030201
UPC: 840123500441
Front Coil Springs Included: Yes
Rear Coil Springs Included: Yes
Rear Leaf Springs Included: No
Front Shocks/Struts Included: Yes
Front Shock Type: Single adjustable monotube coilover
Rear Shocks/Struts Included: Yes
Rear Shock Type: Single adjustable monotube coilover
Front Sway Bar Included: Yes
Front Sway Bar Color: Black
Front Sway Bar Type: Hollow
Front Sway Bar Diameter (in.): 1.250 in.
Front Sway Bar Diameter (mm): 31.75 mm
Rear Sway Bar Included: No
Tie Rod Sleeves Included: No
End Link Bushings Included: Yes
Rear Leaf Spring Bushings Included: No
Sway Bar Bushings Included: Yes
Upper Trailing Arms Included: Yes
Lower Trailing Arms Included: Yes
Trailing Arm Mount Braces Included: No
Panhard Bar Included: No
Torque Arm Included: No
Upper Control Arms Included: Yes
Lower Control Arms Included: Yes
Control Arm Style: Tubular
Control Arm Material: Steel
Control Arm Color: Black
Front Strut Tower Bar Included: No
K-Member Included: No
K-Member Support Brace Included: No
Rear Strut Tower Bar Included: No
Subframe Connectors Included: No
Chassis Stiffener Included: No
Calipers Included: No
Rotors Included: No
Brake Pads Included: No
Brake Lines Included: No
Wheel Studs Included: No
Center Link Included: No
Spindles Included: No
Inner Tie Rod Ends Included: No
Outer Tie Rod Ends Included: No
Bushing Material: Delrin®
Bushing Color: Black
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
Notes: Designed for models with two piece frame rails. Springs rates are 600 Ibs. front and 200 Ibs. rear.

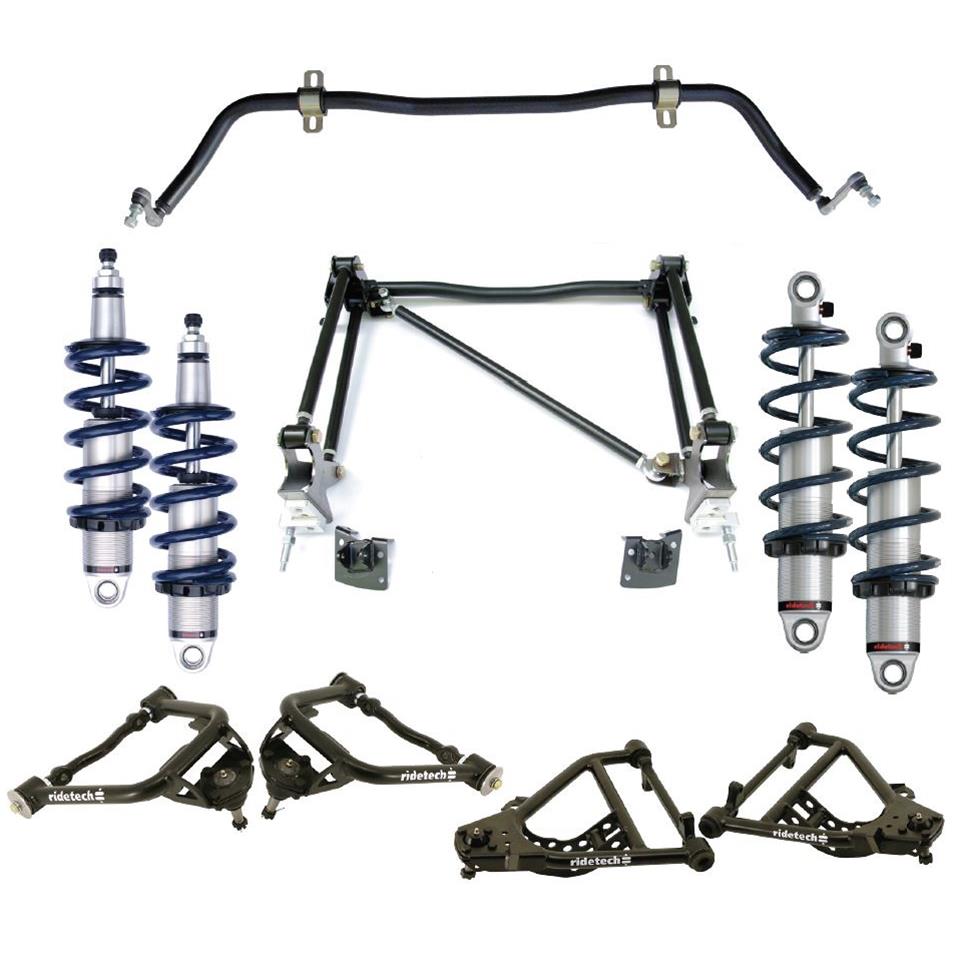

RideTech 1955-57 Chevrolet coilover suspension systems transform the ride, handling, and looks of your Tri-5. The benefits of buying these complete kits is that RideTech has done all the homework for you. They have matched the perfect spring rate and components for your Chevy’s best performance and ride quality. All you do is install. Completely upgrade your existing suspension with RideTech coilover suspension systems.

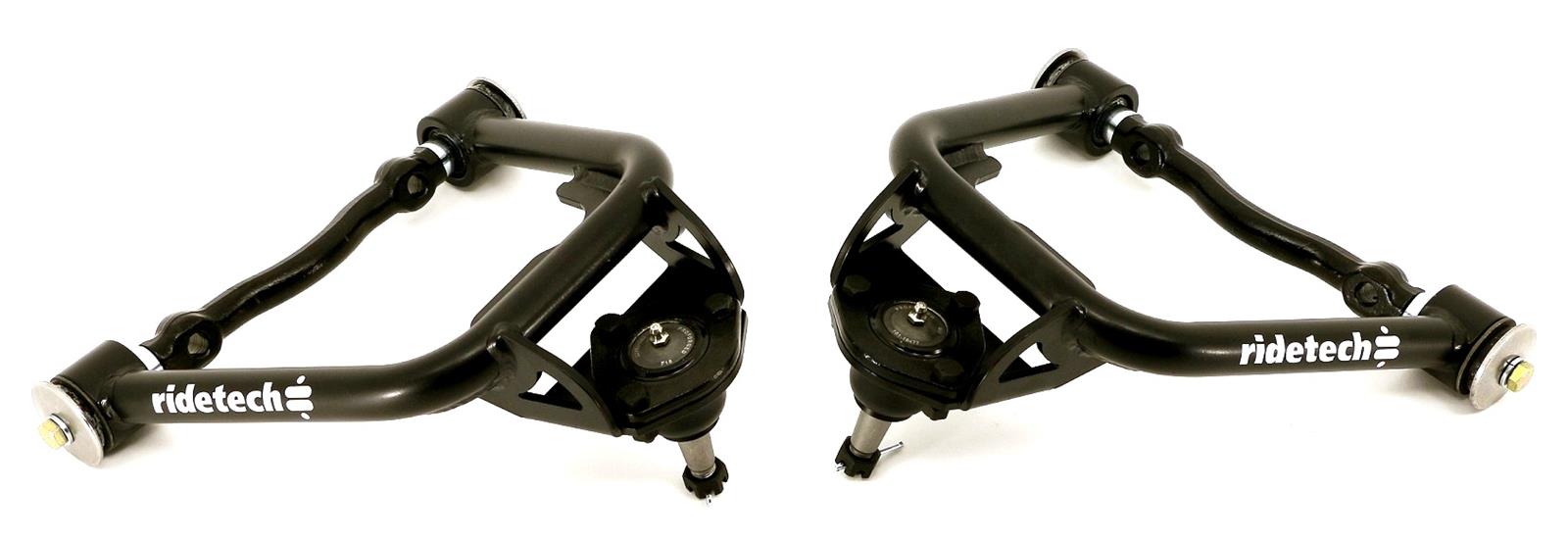

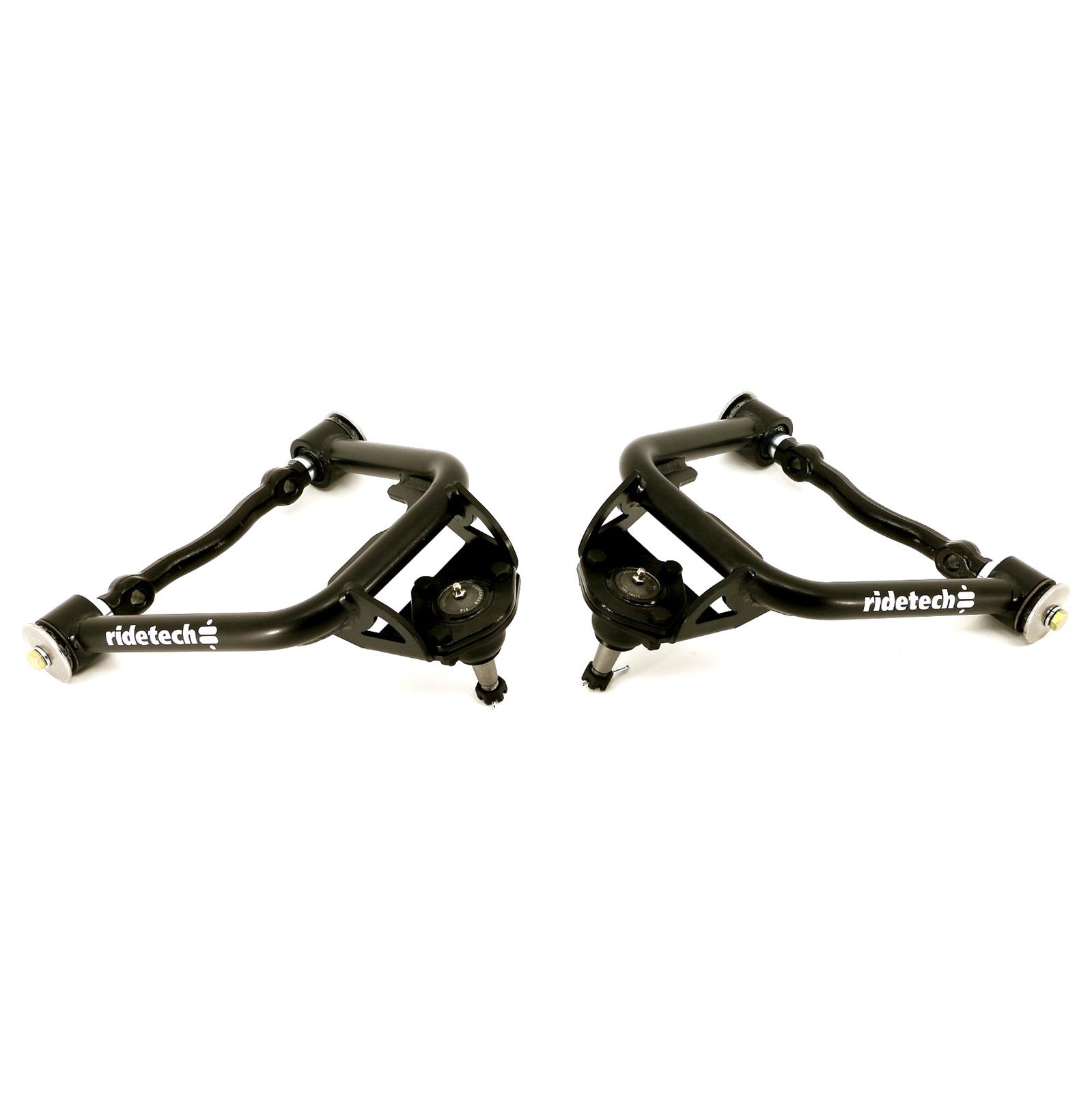

* Upper StrongArms are powdercoated black and fully assembled with ball joints, bushing, and cross shafts. They feature corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel.

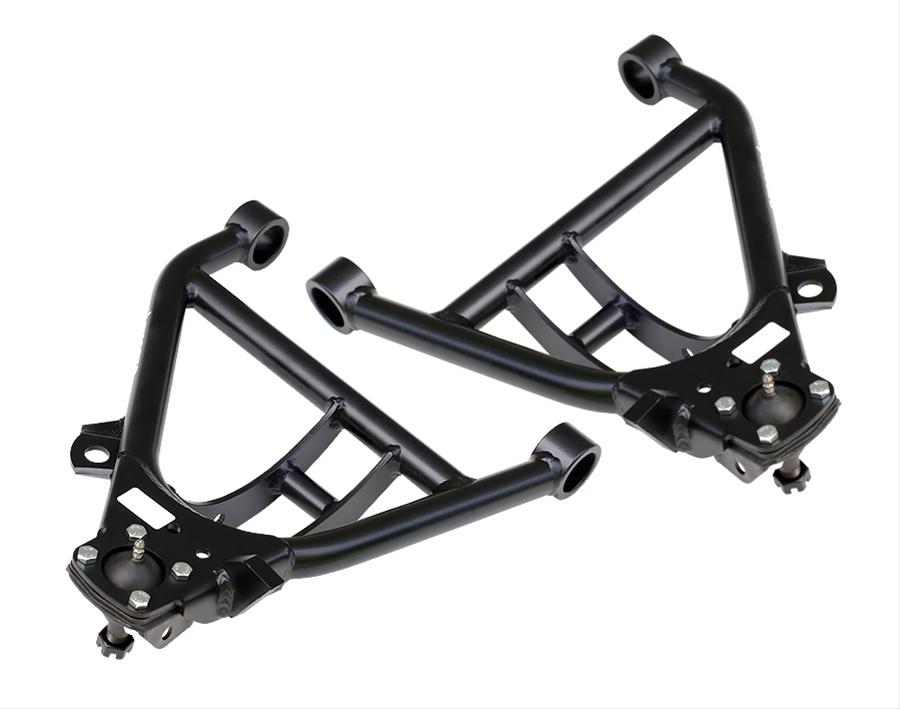

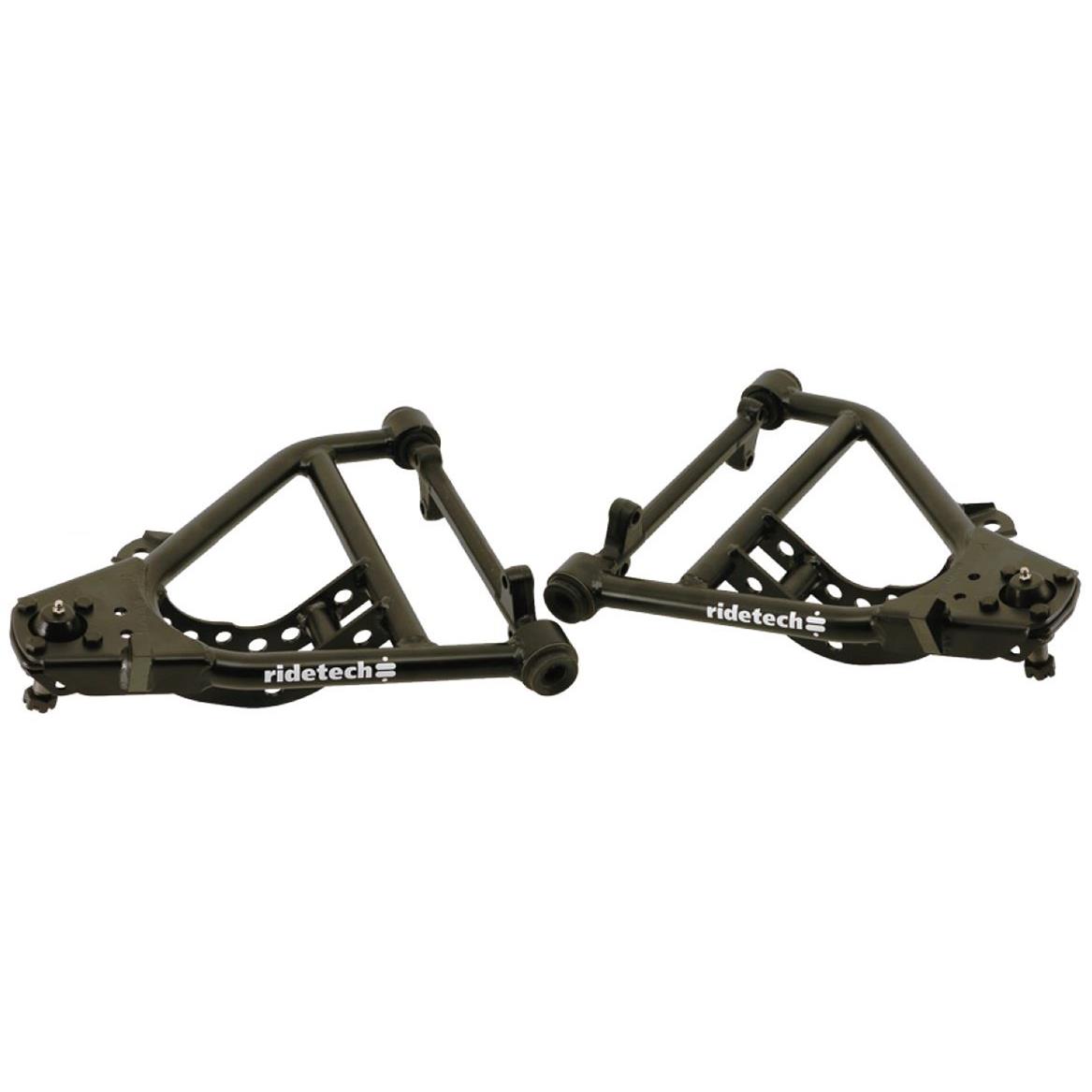

* Lower StrongArms feature a double sheer lower mount for increased strength. They also are powdercoated black and fully assembled with ball joints, bushing, and cross shafts.

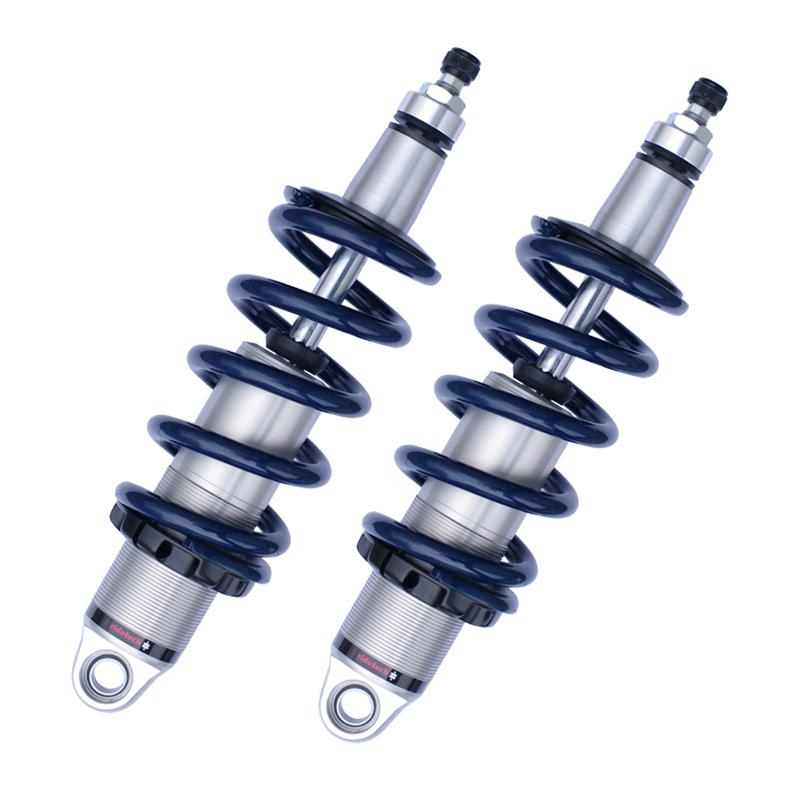

* HQ Series coilovers utilize an impact forged aluminum body and monotube design to deliver excellent ride quality and handling. They allow fine-tuning of the ride quality and handling. The rebound knob is located at the top of the shock for underhood access.

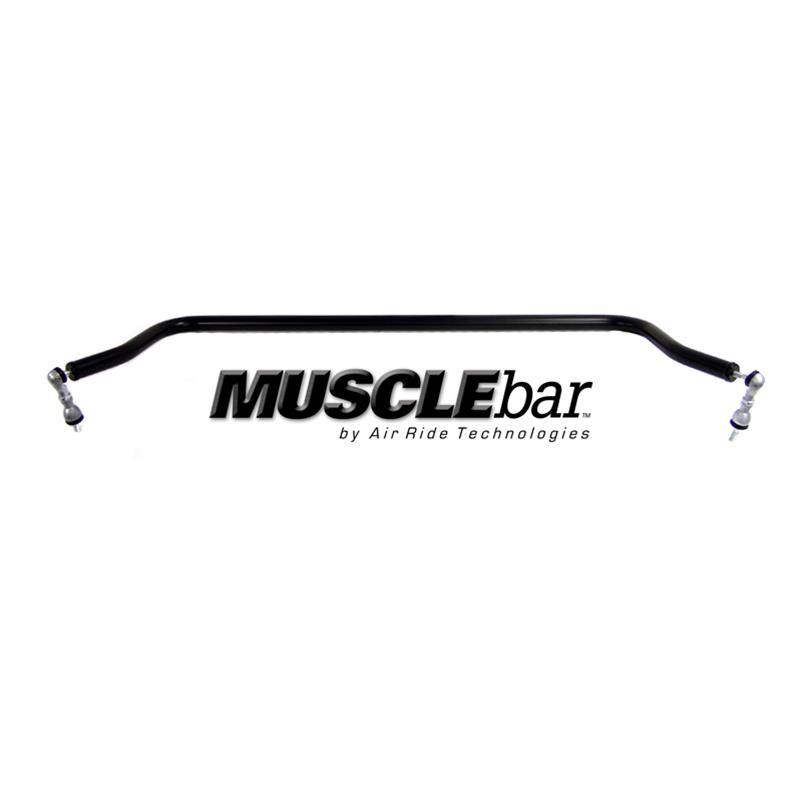

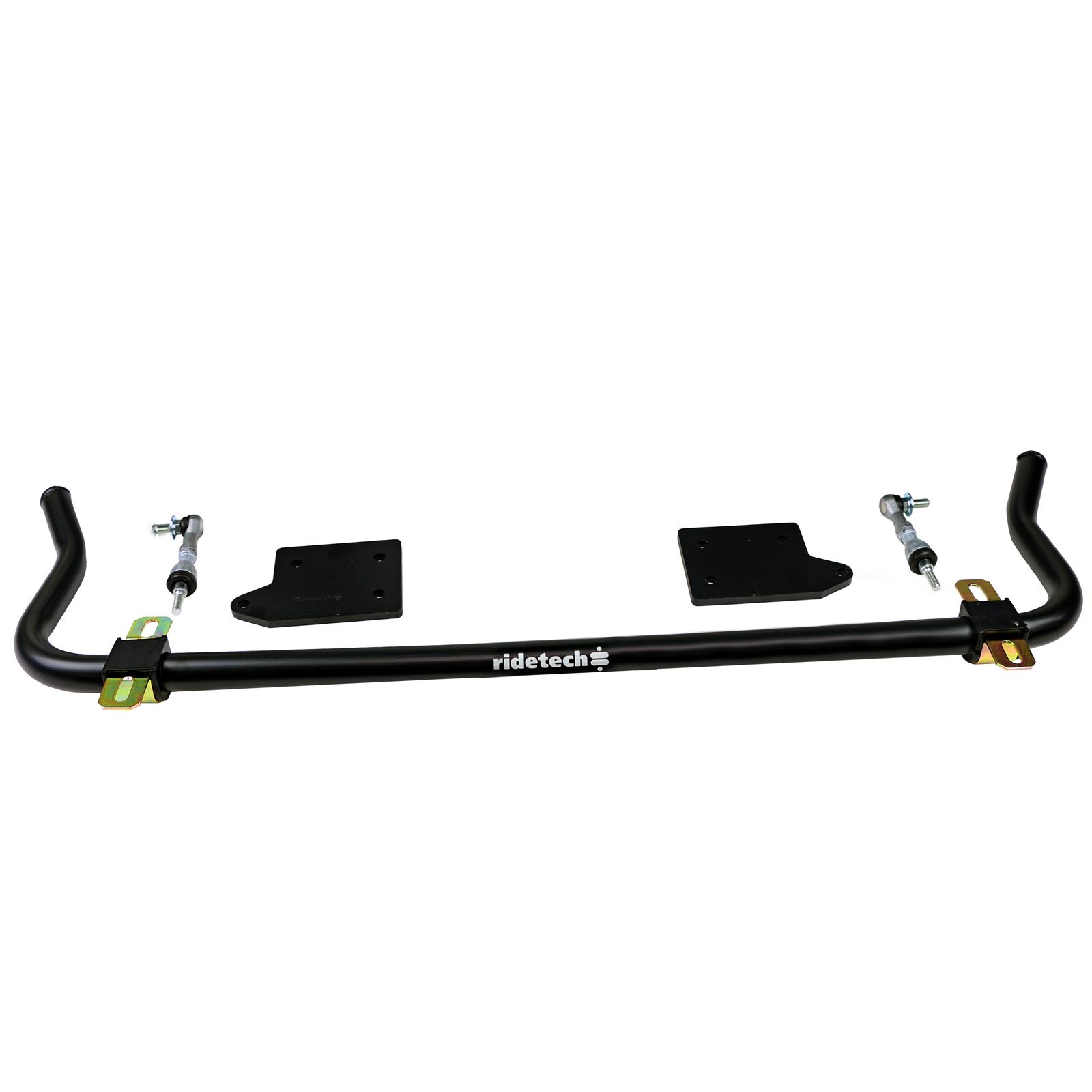

* Front MuscleBar helps reduce body roll and includes the PosiLink endlinks that provide immediate engagement between the chassis and control arms.

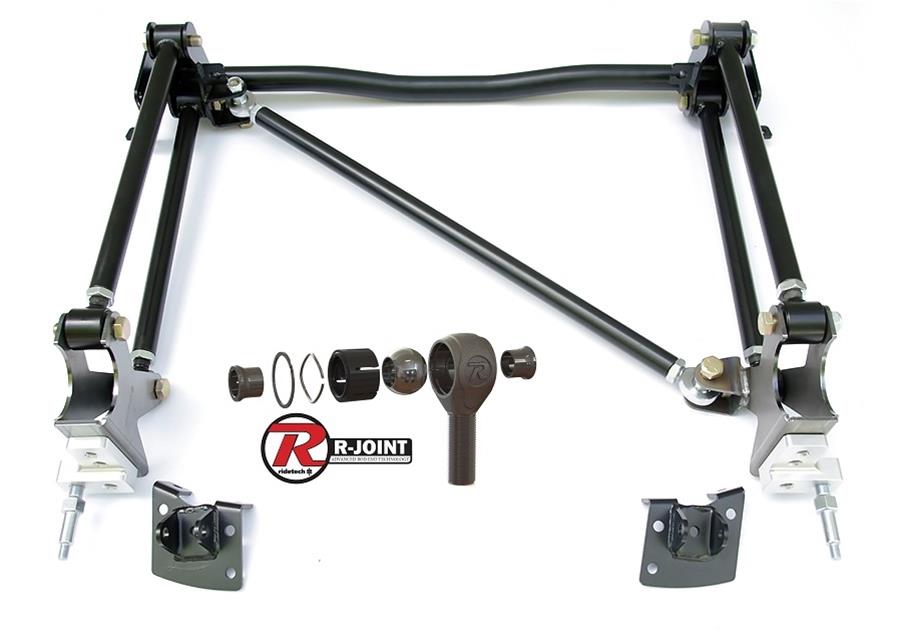

* Bolt-on 4-link greatly improves traction, handling, and ride quality.
