Brand: RideTech
Manufacturer’s Part Number: 12099599
Part Type: Suspension Handling Packages
Product Line: RideTech TruTurn Suspension Handling Packages
Summit Racing Part Number: ART-12099599
UPC: 840123507754
Front Coil Springs Included: No
Rear Coil Springs Included: No
Rear Leaf Springs Included: No
Front Shocks/Struts Included: No
Rear Shocks/Struts Included: No
Front Sway Bar Included: No
Rear Sway Bar Included: No
Tie Rod Sleeves Included: Yes
End Link Bushings Included: No
Rear Leaf Spring Bushings Included: No
Sway Bar Bushings Included: No
Upper Trailing Arms Included: No
Lower Trailing Arms Included: No
Trailing Arm Mount Braces Included: No
Panhard Bar Included: No
Torque Arm Included: No
Upper Control Arms Included: Yes
Lower Control Arms Included: Yes
Control Arm Style: Tubular
Control Arm Material: Steel
Control Arm Color: Black
Front Strut Tower Bar Included: No
K-Member Included: No
K-Member Support Brace Included: No
Rear Strut Tower Bar Included: No
Subframe Connectors Included: No
Chassis Stiffener Included: No
Calipers Included: No
Rotors Included: No
Brake Pads Included: No
Brake Lines Included: No
Wheel Studs Included: No
Center Link Included: No
Spindles Included: Yes
Inner Tie Rod Ends Included: Yes
Outer Tie Rod Ends Included: Yes
Bushing Material: Spherical bearing/Delrin®
Bushing Color: Black
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
Notes: Kit includes RideTech’s draglink bracket to bolt onto your OEM draglink to relocate the inner tie-rod end to minimize bumpsteer. Requires coil-over or air-ride suspension. Not compatible with factory coil springs.

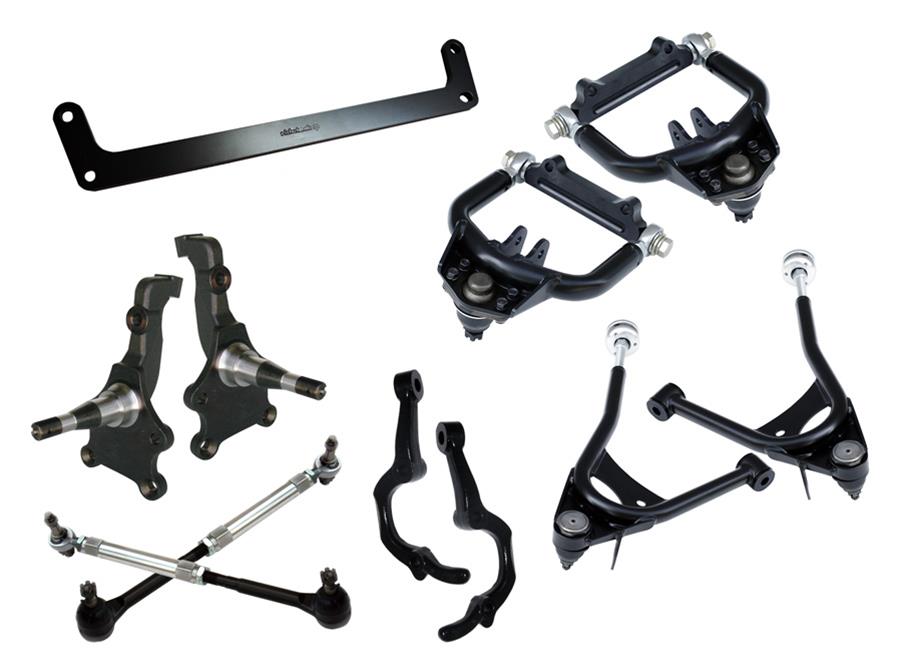

When demanding the most from your muscle car, RideTech has the answers with TruTurn suspension handling packages. RideTech’s revolutionary StrongArm control arms are high-strength, precision built units equipped with modified ball joints to correct caster and camber angles, reduce bump steer, and deliver better wheel placement. The lower control arms feature double-shear mounts for added strength and lowered shock mounts for more suspension travel. Combined with high-quality bushings to control deflection and stiction, these control arms provide enhanced steering feel and improved steering geometry.
The TruTurn system adds tall spindles and corrected steering linkages to complete the package; this helps to correct bump steer, improve Ackerman angles, and increase camber gain. The updated steering also allows the use of large, modern wheels without compromising handling or suspension travel. Bring your muscle car’s steering into the 21st century with RideTech’s TruTurn suspension handling packages, available for a broad range of applications.
