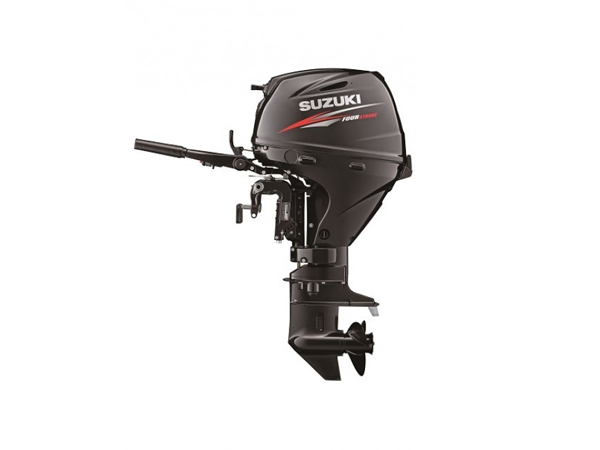

Suzuki 30 HP DF30ATHL2 Outboard Motor
Modern, clean environmental design make the new Suzuki 30 HP outboard motor, model: DF30ATHL2 the most advanced portable outboard on the market today.
This is the world’s first portable 30 hp outboard motor designed for fuel efficenly and clean power with a Battery-Less Electronic Fuel Injection engine. The 30 HP Outboard DF30ATHL2 is an affordable outboard equipped with the 20 inch long shaft, electric start, power trim and tilt, and tiller control. This smooth running “Next Generation” four stroke delivers a fast start, fast acceleration and superior performance with amazing fuel economy. Go Lean, Clean and Green, Go Suzuki!
Suzuki 30 HP DF30ATHL2 Outboard Motor
- Battery-Less Electronic Fuel Injection
- Easy Start – Recoil Starter
- Lean Burn Control
- Over-Rev. Limiter
- Low Oil Pressure Caution
- Digital CDI
- Fresh Water Flushing System
- Shallow Water Drive
- Suzuki Anti-Corrosion System
Suzuki 30 HP DF30ATHL2 Outboard Motor
| Model | DF30ATHL2 |
| Model Year | No |
| SKU | DF30ATHL2-17 |
| Weight | 163.0000 |
| Manufacturer | Suzuki |
| Country of Manufacture | Thailand |
| Horsepower | 30hp |
| Shaft Length | 20″ (Long) |
| Steering | Tiller |
| Starting | Electric |
| Trim & Tilt | Power Trim & Tilt |
| Fuel Delivery | EFI |
| Fuel Tank | External |
| Cylinder(s) | 3 |
| Displacement | 29.8 (489) |
| Bore and Stroke | 2.80 x 2.68 () |
| Full Throttle RPM Range | 5300 – 6300 |
| Ignition System | Digital CDI |
| Induction Scavenging | SOHC |
| Valves per Cylinder | 4 |
| Fuel Type | Unleaded Gasoline (87 octane) |
| Fuel Tank / Fuel Line | Yes |
| Oil Type | SAE 10W-30 or SAE 10W-40 |
| Oil Capacity | 1.6 (1.5) |
| Lubrication | Wet Sump; Trochoid Type Cam-Driven Oil Pump |
| Alternator | Electric 12V 14A |
| Cooling System | Water-Cooled |
| Saltwater Rated | YES |
| Gear Ratio | 2.09:1 |
| Gear Shift | Forward-Neutral-Reverse (front-mounted lever) |
| Propeller | 3 x 10.25 x 12 |
| Internal Battery | No |
Suzuki 30 HP DF30ATHL2 Outboard Motor
What’s in the box?
- 6 gal Fuel Tank
- Fuel Line
- Owner’s Manual
- Aluminum Propeller
- Tool Kit
