Brand: Van Steel Corvette
Manufacturer’s Part Number: CO-C3-FD2
Part Type: Suspension Handling Packages
Product Line: Van Steel Front Coilover Suspension Kits
Summit Racing Part Number: VAC-CO-C3-FD2
Front Coil Springs Included: Yes
Rear Coil Springs Included: No
Rear Leaf Springs Included: No
Front Shocks/Struts Included: Yes
Front Shock Type: Double adjustable coilover
Rear Shocks/Struts Included: No
Front Sway Bar Included: Yes
Front Sway Bar Color: Black
Front Sway Bar Diameter (in.): 1.125 in.
Front Sway Bar Diameter (mm): 28.58 mm
Rear Sway Bar Included: No
Tie Rod Sleeves Included: No
End Link Bushings Included: Yes
Rear Leaf Spring Bushings Included: No
Sway Bar Bushings Included: Yes
Upper Trailing Arms Included: No
Lower Trailing Arms Included: No
Trailing Arm Mount Braces Included: No
Panhard Bar Included: No
Torque Arm Included: No
Upper Control Arms Included: Yes
Lower Control Arms Included: Yes
Control Arm Style: Tubular
Control Arm Material: Chromoly
Control Arm Color: Black
Front Strut Tower Bar Included: No
K-Member Included: No
K-Member Support Brace Included: No
Rear Strut Tower Bar Included: No
Subframe Connectors Included: No
Chassis Stiffener Included: No
Calipers Included: No
Rotors Included: No
Brake Pads Included: No
Brake Lines Included: No
Wheel Studs Included: No
Center Link Included: No
Spindles Included: No
Inner Tie Rod Ends Included: No
Outer Tie Rod Ends Included: No
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
Notes: Kit includes 550 lbs/in. rate springs that are designed for use with vehicles equipped with big block engines.
Van Steel has been serving the Corvette community for over 40 years, providing parts that are as good as or, in many cases, better than factory. They are ready to help your Corvette ride, drive, and handle to the best of its ability, along with looking and driving the way you want it to.

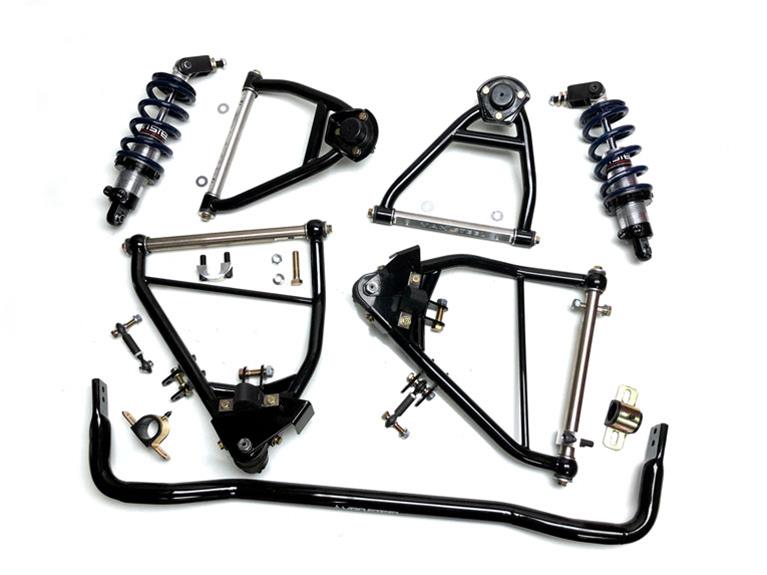

Van Steel front coilover suspension kits will enhance the ride and handling of your Corvette. They are offered for small block or big block engines with single adjustable or double adjustable shocks that allow for fine-tuning your suspension. Easy to install, they bolt on just like the factory arms with no modifications needed to your frame or factory components. Realizing most Corvettes drive on radial tires, Van Steel design the upper arms with 6 degrees of positive caster for premium highway stability.
* 450 lb. springs (small block)
* 550 lb. springs (big block)
* Lightweight chromoly A-arms
* QA1 single or double adjustable coilover shocks
* Upper shock mounting brackets
* Spanner wrenches
* Factory-style ball joints
* Delrin® bushings
* Front 1 1/8 in. sway bar with heim end links
* Easily adjust ride height and/or corner weigh your Corvette
