Sentinel 60kW Diesel Generator
Rated 49kW 120/240 Volts Single Phase UL-2200 NFPA 110 Level 2 THD < 5%
Wildcat Sentinel Generators—Made in the USA. Hand Built Generators designed and tested for rugged simplicity. Wildcat engineered the 60kW Single Phase Diesel Generator for prime power applications that require 24/7/365 operation.
- Durable Koel 3.2L Turbocharged & Intercooled 4-Cycle Industrial Powertrain
- Rated for Prime Power.
- Easy to Use Wildcat Digital Controls with DeapSea Controller
- Open Skid Package—Easy to Service
- Built Tough for Unattended Operation in Harsh Environments
- Exceeds NFPA-110 Level 2
- Liquid-Cooled Tier 3 Diesel Engine
- No-Load to Full-Load Total Harmonic Distortion < 5%
Sentinel 60kW Generator Optional Features (Sold Separately)
- 140-Gallon UL-142A Diesel Fuel Tank for 24 Hour Run Time.

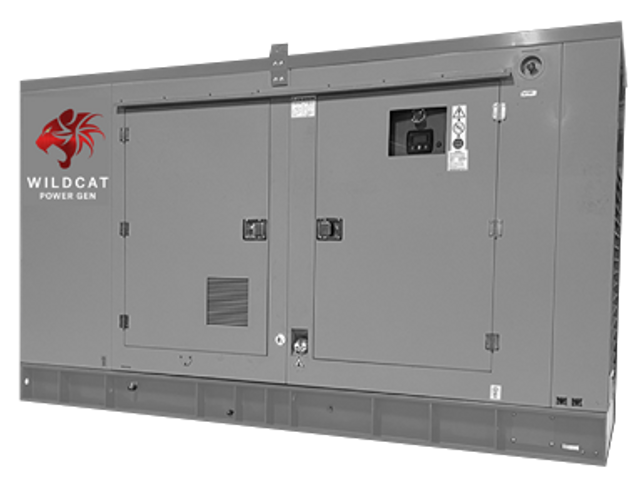

- Cat 5 Hurricane Rated Steel Enclosure
- Military Grade Wiring
*Representative Image—actual product appearance may differ.
Sentinel 60kW Generator Applications
Built for emergency applications, Wildcat equipped the Sentinel 60kW Diesel with a prime-rated industrial powertrain for extended run periods in long power outages.
Wildcat’s Sentinel 60kW Diesel Generator has a durable, 1800 RPM fixed speed engine that combines excellent fuel efficiency with a continuous use rating. The Sentinel Diesel is uniquely at home on farms and ranches, remote locations, and for off-grid use in remote locations.
Perfect for disaster relief efforts and powering first responder facilities.
Get Peace of Mind with a world-class American made generator built with industrial-grade components and backed by a 3-year-5000-hour commercial warranty.
Made in the USA, Wildcat Power Gen manufactures the 60kW Diesel Generator at its state-of-the-art facility in Wichita, Kansas.
Sentinel 60kW Fuel Consumption
| Load | Diesel Gallons per Hour |
| No Load | 1.00 |
| 50% Load | 2.51 |
| Full Load | 4.94 |
Product Specifications
Model
Model Number; SE0060D3ASXE
Manufacturer; WildCat
Made In USA; Yes
Rated Watts; 49kW
Rated Amps; 204 Amps
Voltage; 120/240 Volts
Enclosure; Open Skid Design—Optional Hurricane Rated Steel Enclosure Sold Separately
UL Listed; UL-2200
Decibel Rating; 72 dBA No Load
Type; Prime Power
Series Name; Sentinel
Features
Starting System; Electric Start
Low Oil Alert; Low Oil Shutdown
Mainline Breaker; 250 Amps
Battery Requirement; 12-Volt 900 CCA
Mounting Pad; Prepared Site Required
Weight; 3353 Pounds
Dimensions; 108.78L x 41.78W x 71.34H Inches
Warranty Information
Consumer Warranty; WildCat 3-Year 5000-Hour Limited Warranty
Commercial Warranty; WildCat 3-Year 5000-Hour Limited Warranty
Engine
Engine Brand; KOEL
Engine Size; 3.2 Liter Turbocharged & Intercooled Inline 4 Cylinder
Engine RPM; 1800
Cast Iron Sleeve; Cast Iron Engine
Cooling System; Liquid Cooled
Alternator
Alternator Type; Brushless 12-Lead
Frequency; 60 Hertz
Auto Voltage Regulation; Yes
Fuel
Fuel Type; Ultra Low Sulphur Diesel
Fuel Tank Material; Optional Steel Fuel Tank
Fuel Tank Size; 140 Gallon Optional Tank
Run Time (50% Load); 55 Hours
