Performance Parts & Accessories
Front Position, 5 on 4.5″ | 4.75″ Bolt Pattern, Black

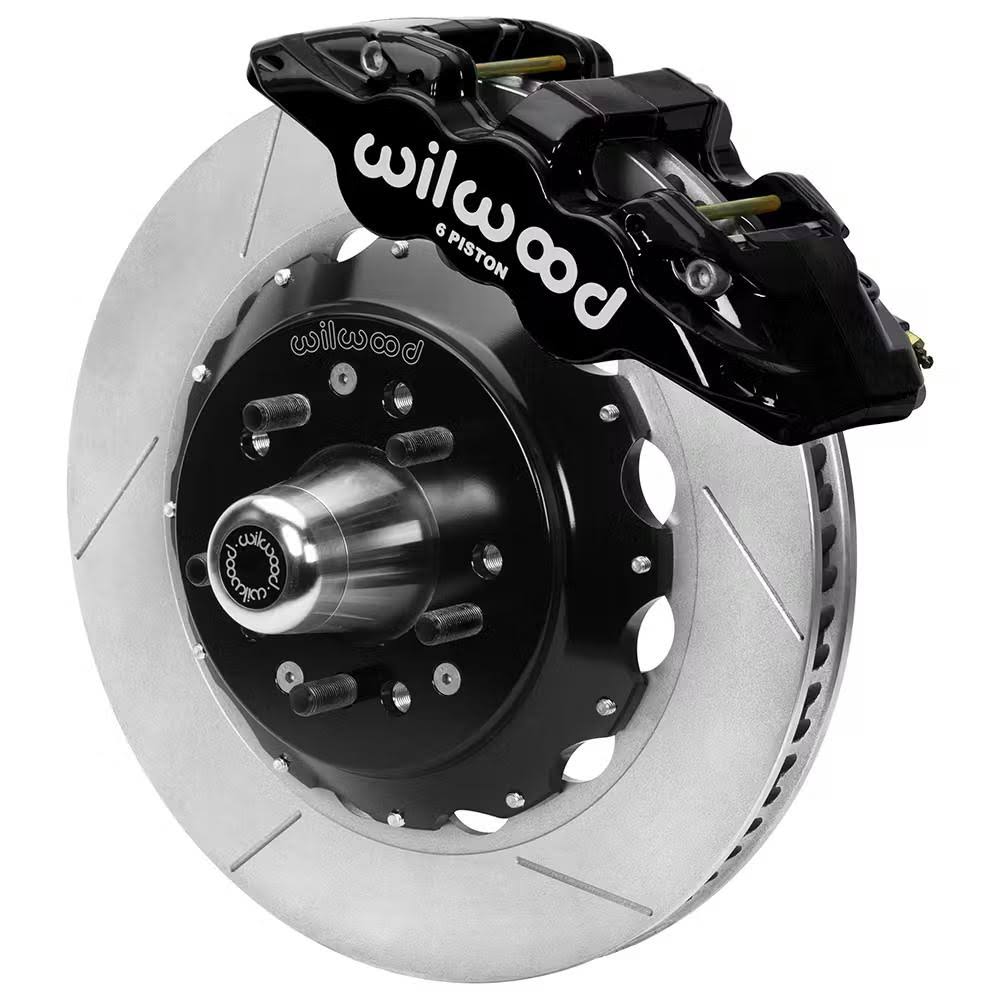

- AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles
- For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles
- For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades
- Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function
Details
- AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles
- For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles
- For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades
- Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function
- Directional staggered vane 14
- 00” to 14
- 25”rotors provide maximum cooling for sustained high heat durability
KEY SPECS |
|
|---|---|
| MFG. Part # | 140-16246 |
| Brand | Wilwood |
| Position | Front |
| Bolt Pattern | 5 on 4.5″ | 4.75″ |
| Rotor Diameter | 14 Inch |
| Rotor Type | Vented |
| Caliper Finish | Powder Coated |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 18 Inch |
| Hardware Included | Yes |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 14.00 in./355.60mm |
| Front Caliper Included | Yes |
| Front Caliper Piston Quantity | Six |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | No |
| Rear Rotor Included | No |
GENERAL |
|
| Rotor Thickness | 1.25″ |

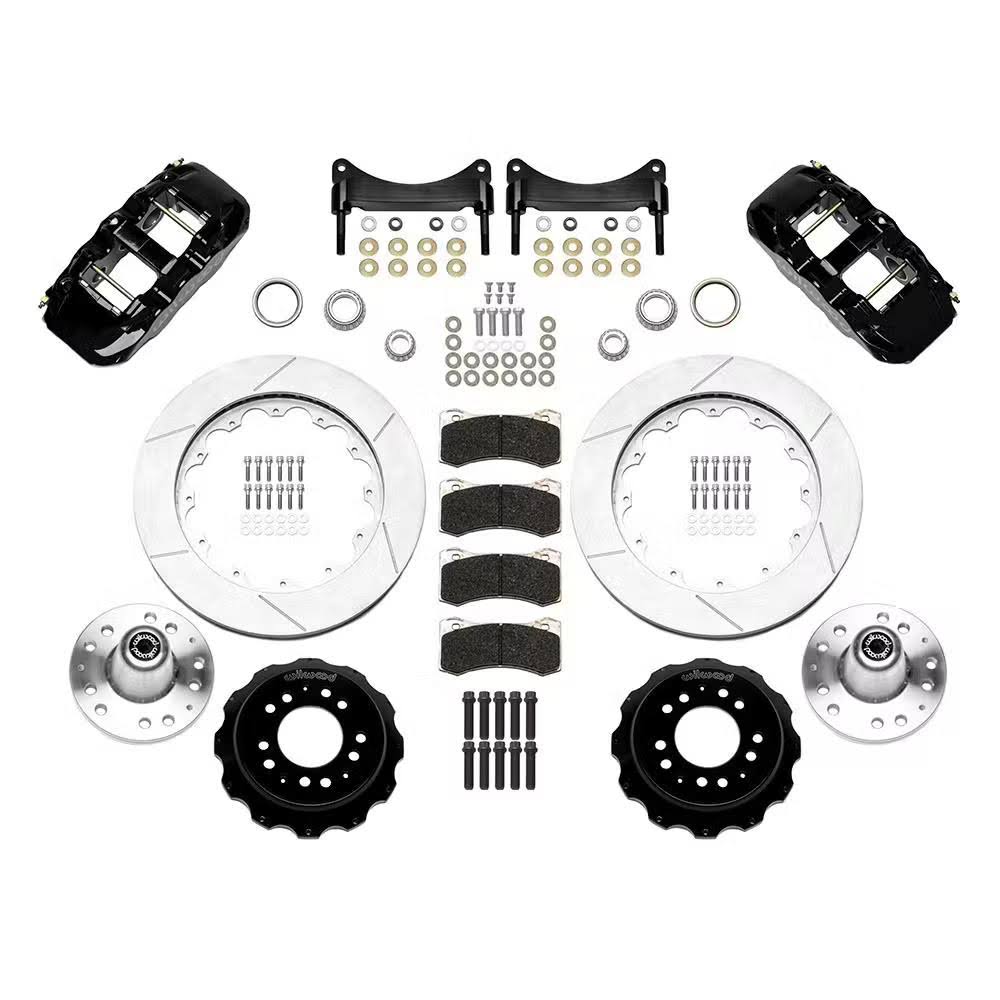

| Sold in Quantity | Kit |
| Offset | 0.1″ |
| Caliper Type | Radial |
| Rotor Material Type | Spec-37 Iron |
| GTIN Code | 889545099157 |
| Front Rotor Thickness | 1.250″ |
| Front Caliper Material | Forged Billet Aluminum |
| Front Caliper Color | Black |
| Brake Lines Included | No |
| Front Rotor Style | Slotted |
| Caliper Color | Black |
| Caliper Material Type | Forged Aluminum |
| Front Rotor Construction | Vented |
