Performance Parts & Accessories
Overview
Brand: Wilwood Disc Brakes
Manufacturer’s Part Number: 140-14559
Part Type: Disc Brake Kits
Product Line: Wilwood TX6R Big Brake Rear Brake Kits
Summit Racing Part Number: WIL-140-14559
UPC: 889545081381
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (mm): 8 x 170.00mm
Rear Rotor Included: Yes
Rear Rotor Style: Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 15.50 in./393.70mm
Rear Rotor Thickness (in.): 1.38
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Six
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-Q
Parking Brake Provision: Yes
Parking Brake Style: Internal drum

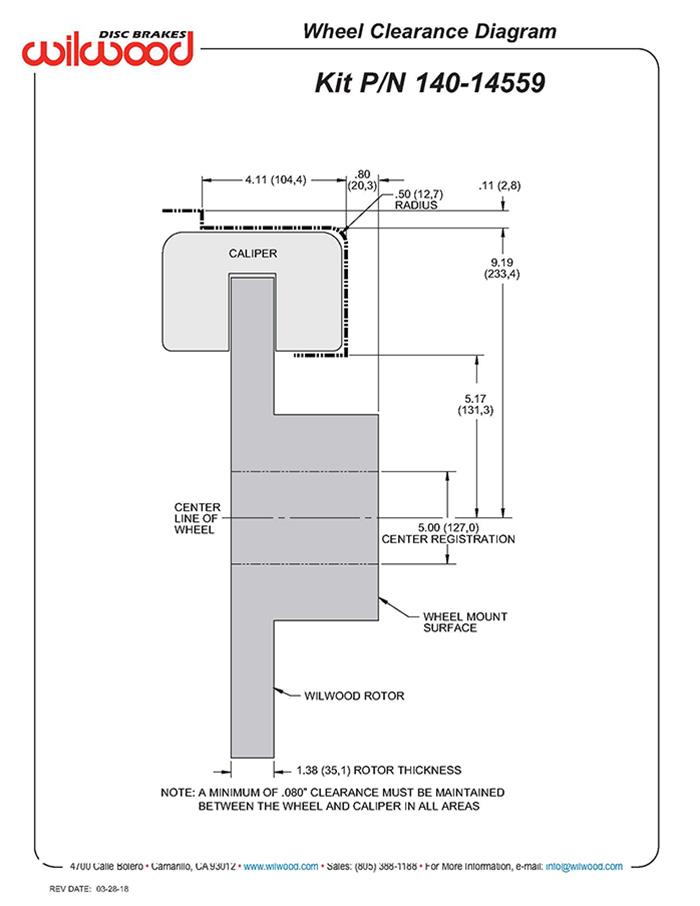

Minimum Recommended Wheel Diameter (in.): 20 in.
Offset (in.): 0.000 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: Yes
Quantity: Sold as a kit.
Wilwood TX6R Big Brake Rear Brake Kits

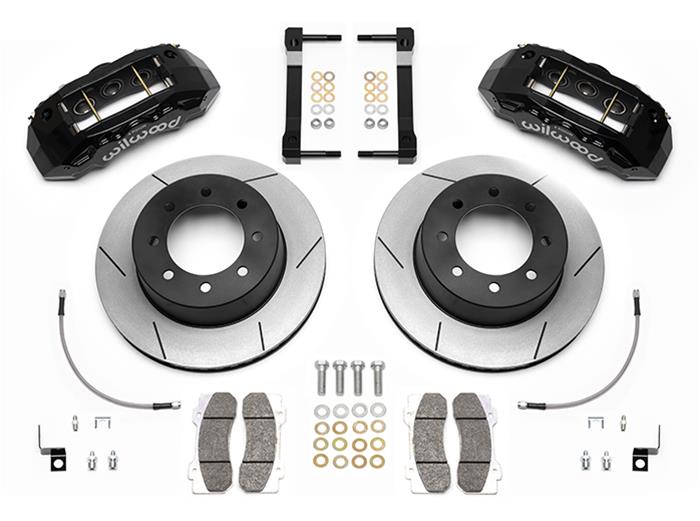

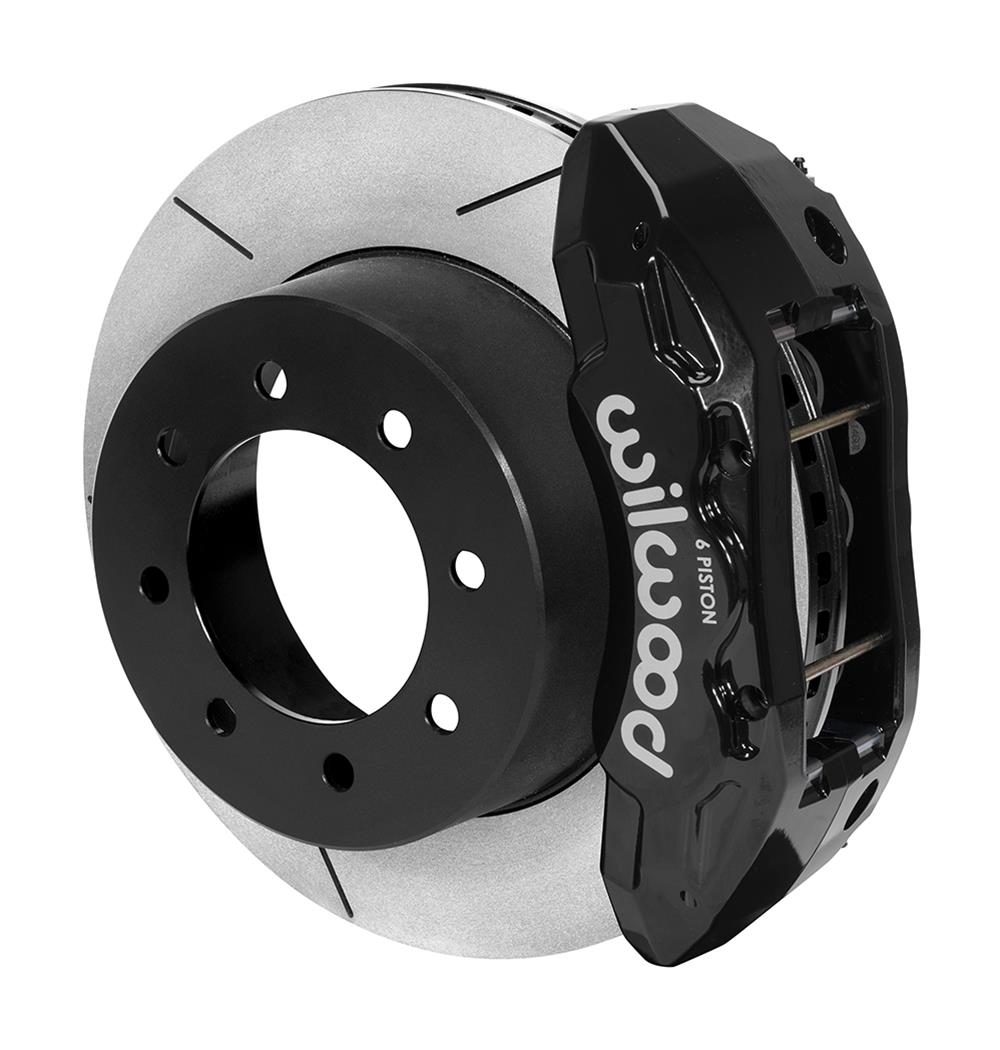

Tactical extreme—Wilwood TX6R Big Brake rear brake kits equip your truck, SUV, or armored rig for consistent stopping power and severe-duty durability under sustained high heat. Ready to bolt on, these pre-emptive kits contain TX6R radial-mount 6-piston calipers and massive 15 in. to 16 in. GT-60 directional vane Spec-37 alloy rotors. Radial-mount caliper brackets and all the necessary hardware to complete the installation are also included. TX6R rear kits replace your factory disc brakes and use the OE parking brake assembly as a complement to your front Big Brake upgrades. Your mission for braking performance has now been optimized with Wilwood TX6R Big Brake rear brake kits.
