Overview
Brand: Wilwood Disc Brakes
Manufacturer’s Part Number: 140-9407-DR
Part Type: Disc Brake Kits
Product Line: Wilwood W4A Rear Disc Brake Kits
Summit Racing Part Number: WIL-140-9407-DR
UPC: 889545031867
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): 6 x 5.50 in.
Brake Rotor Bolt Pattern (mm): 6 x 139.70mm
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled/Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 14.25 in./361.95mm
Rear Rotor Thickness (in.): 1.25
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-20
Parking Brake Provision: Yes
Parking Brake Style: Internal drum
Minimum Recommended Wheel Diameter (in.): 18 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Special Attention: Replaces models with single rear piston calipers.

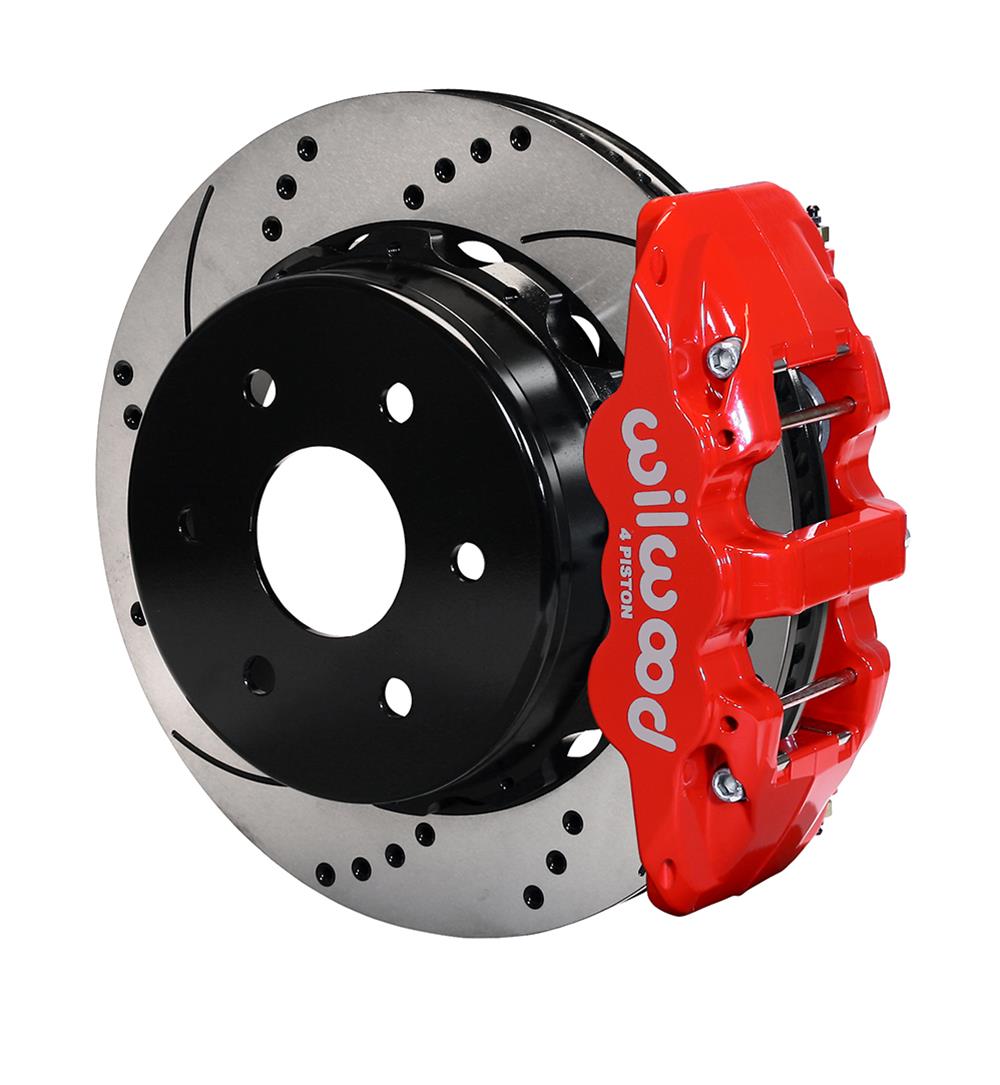

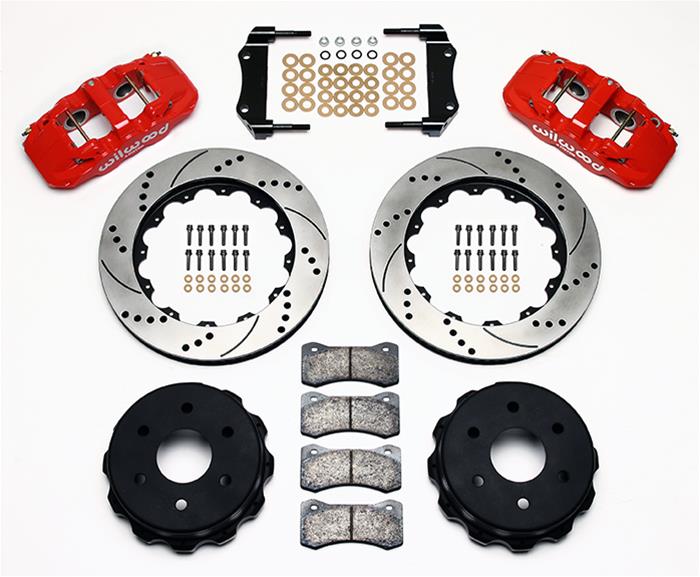

Wilwood W4A Rear Disc Brake Kits
These Wilwood W4A rear disc brake kits are designed to replace the factory disc brakes and still use the OEM parking brake assembly. They feature Wilwood’s W4AR brake calipers, vented rotors, and BP-10 compound brake pads. Stop your ride quicker than ever before with one of these Wilwood W4A rear disc brake kits.
