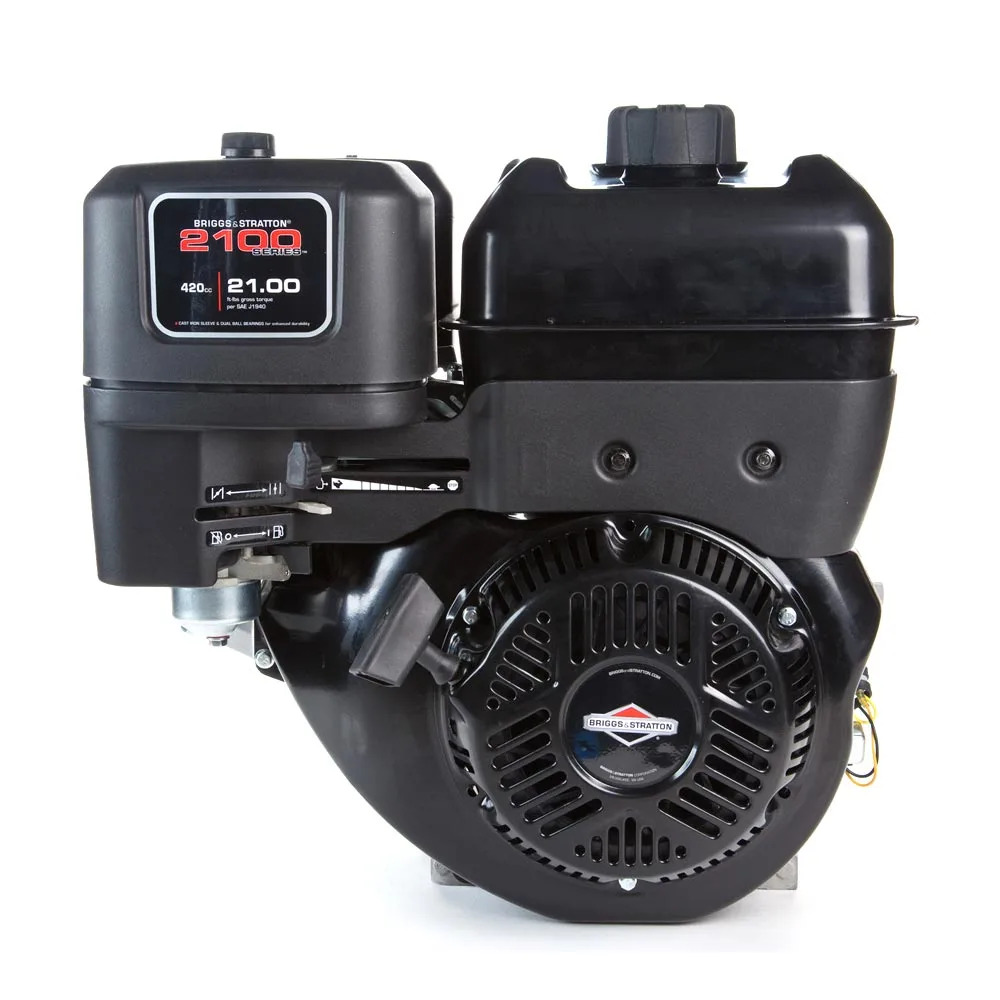

Briggs Stratton 25T232-0037-F1 horizontal XR Professional Series engine is 420cc and puts out 21.0 gross torque. This XR has a 1″ x 3-31/64″ crankshaft with a 1/4″ keyway. Briggs Stratton XR Professional series engines are built with features like Magnetron electronic ignition and Dura-Bore cast iron sleeves to provide reliable power in even the most demanding situations. Common applications include tillers, pressure washers, water pumps, log splitters, portable generators and more. Buyer protection package provides two-year limited consumer engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.
Key Specifications
| BRAND | Briggs Stratton |
|---|---|
| MODEL NUMBER | 25T232-0037-F1 |
| WARRANTY | 2 Year Consumer / 1 Year Commercial |
| SHIPPING WEIGHT | 84 |
| DISPLACEMENT | 420cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1″ x 3-21/32″ |
| CRANKSHAFT LENGTH | 3-21/32″ |
| CRANKSHAFT END TAPPED SIZE | 7/16 – 20 |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Dual Ball with Oil Seal |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron Sleeve |
| AIR CLEANER TYPE | Cartridge with Pre Filter |
| FUEL TANK | Yes |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 28 |
| LOW OIL ALERT | Yes |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| MAX RPM | 3600 |
| CHARGING SYSTEM | None |
| BOLT CIRCLE | 3-5/8″, 5, 6-1/2 |
| FLYWHEEL | Heavy |
| NOTES | Engine Notes: |
| PTO HEIGHT | 5 – 1/4 |
