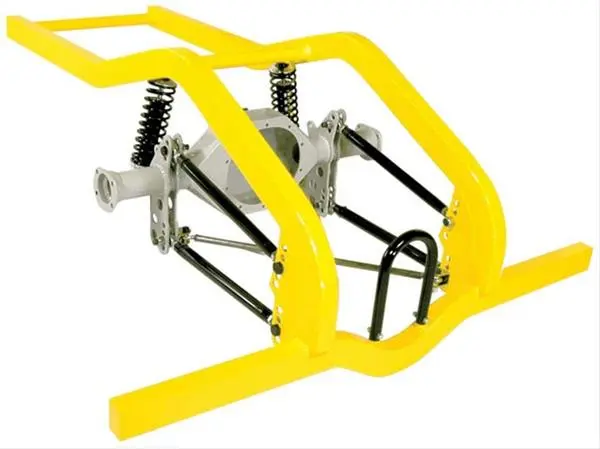

Competition Engineering Rear Frame Rail Kits
Competition Engineering rear frame rail kits are designed to save you hours of fabrication time. They are individually welded on precise jigs for unmatched accuracy, getting you hooked up and winning right out of the box!
Choose between:
* Ladder bar and 4-link frame rails
* 24, 26, and 28 in. widths
* Coil spring mounts with either 3-way adjustable racing shocks or aluminum coilover shocks
* Five different coil spring rates, based on your car’s rear-end weight
Note: Requires additional welding for installation.
Overview
Brand: Competition Engineering
Manufacturer’s Part Number: C1445
Part Type: Rear Frame Rail And Suspension Kits
Product Line: Competition Engineering Rear Frame Rail Kits
Summit Racing Part Number: CEE-1445
UPC: 084663014451
Rear Frame Rail Overall Width (in.): 26 in.
Rear Frame Rail Kit Style: Magnum series 4-link
Rod Ends Included: Yes
Frame Rail Material: Steel
Frame Rail Color: Natural
Frame Rail Material Thickness (in.): 0.083 in.
Frame Rail Width (in.): 2.000 in.
Frame Rail Height (in.): 3.000 in.
Factory Welded Frame: Yes
Crossmember Included: Yes
Crossmember Width (in.): 60 in.
Diagonal Link Included: Yes
Diagonal Link Diameter (in.): 0.75 in.
Driveshaft Safety Loop Included: Yes
Upper Shock Crossmember Included: Yes
Upper and Lower Shock Mounts Included: Yes
Shocks Included: Yes
Shock Type: Coilover
Coilover Shock Type: Single-adjustable
Coilover Springs Included: Yes
Coilover Spring Rate (lbs/in): 125 lbs./in.
Coil Spring Height (in.): 12.00 in.
Coil Spring Diameter (in.): 2.50 in.
Rear End Housing Included: No
Quantity: Sold as a kit.
Notes: 12-way adjustable coil-over shock.
