Cummins Power Quiet Connect RS100 100kW Liquid Cooled Standby Generator Single Phase
RS100 – A054F867 – C100N6
Advanced Enclosure Design – The aesthetically appealing enclosure incorporates special designs that deliver one of the quietest generators of its kind
Flexible Exercise mode – The innovative, flexible exercise mode enables the generator to exercise at a time, frequency and duration that suits the customer’s preference.
Self diagnostics and easy service – The generator is equipped with Cummins PowerCommand electronic control to provide industry-leading self diagnostic capabilities.
Robust product design and testing – The generator is designed to operate under extreme environmental conditions including cold weather. Tested and certified per the latest EPA, UL and IBC Seismic standards and is capable of meeting NPFA 110 requirements (when equipped with th enecessary accessories and properly installed).
Fexible exercise mode – The innovative, flexible exercise mode enables the generator to exercise at a time fequency and duration that suits the customer.
Self diagnostics and easy service – The generator is equipped with Cummins PowerCommand electronic control to provide industry-leading self diagnostic capabilities.
Operates on Natural Gas or Propane (LPV)
Equipped with Coolant Heater and Crankcase Vent Heater
Automatic transfer switch sold separately

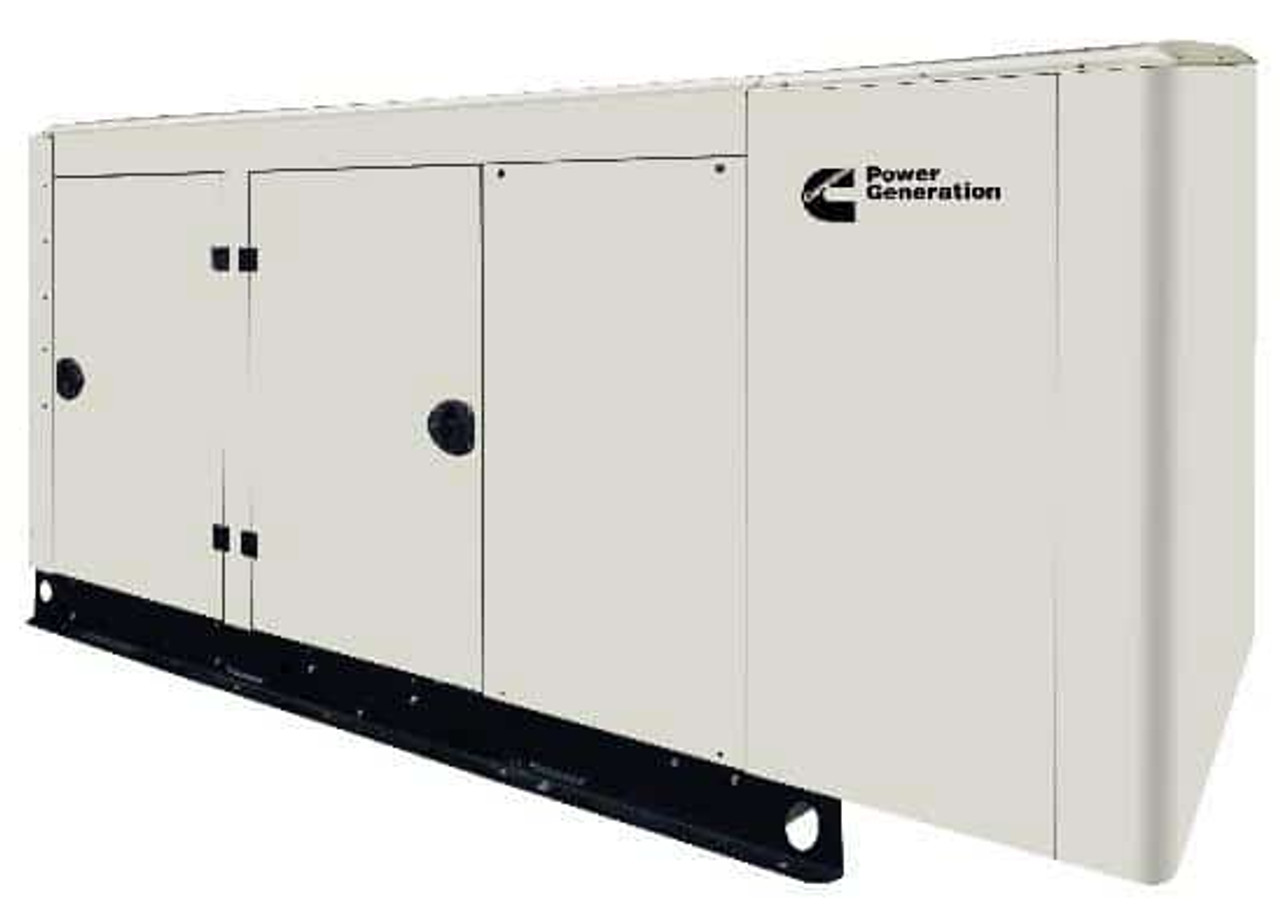

Generator is pictured with the Sound Level II Upgrade Kit installed.
Product Specifications
Model
Model Number; RS100 – C100N6 – A054F867
Manufacturer; Cummins Power Generation
Made In USA; Yes
Rated Watts; 100kW
Rated Amps; 417
Voltage; 120/240V Single Phase
A/C Ton Rating; Mulitple
Enclosure; Aluminum
UL Listed; Yes
Decibel Rating; 71 dbA @ 23 ft with Sound Level 2 Enclosure
Type; Standby Generator
Transfer Switch Model; Sold Separately
Features
Starting System; Automatic Start
Low Oil Alert; Yes
Hour Meter; Yes
Battery Requirement; 12V, Group 34, 850CCA
Mounting Pad; Requires Prepared Site
Weight; 2830 lbs
Dimensions; 118.7L x 40W x 58.3H
Warranty Information
Consumer Warranty; 2 Year Limited Warranty
Engine
Engine Size; 5.9L
Engine RPM; 1800
Cast Iron Sleeve; Yes
cooling System; Liquid Cooled
Alternator
Frequency; 60 Hz
Auto Voltage Regulation; Yes
Fuel
Fuel Type; Natural Gas (NG)/Propane (LP)
Fuel Gauge; No
NG Power Capacity; 100kW
LP Power Capacity; 100kW
NG Consumption @ Full Load; 1317.7 cu.ft/hr
NG Consumption @ Half Load; 805.4 cu.ft/hr
LP Consumption @ Full Load; 14.25 gal/hr
LP Consumption @ Half Load; 8.57 gal/hr
