Product Summary
- 550 lbs. Spring Rate, Rubber Bushing Material, Black
Installation Tips !
For 1963-67 vehicles, a section of the body will need to be modified to clear the IRS DECAlink™. This is the section behind the front seats where the battery/storage compartment is located. The fiberglass at the back outside corner of these compartments may need to be trimmed back to clear the suspension. For 1980-82 vehicles, the stock differential cannot be used with the IRS DECAlink™. You can use a stock differential from a 1968-79 vehicle. You will also need to weld or bolt in the rear crossmember from a 1968-79 vehicle into your 1980-82 frame.Torrington Bearings come with all shock packages included/purchased with the DECAlink™ Rear Suspension. Corvette frame and differential not included with DECAlink™ rear suspension.
Details

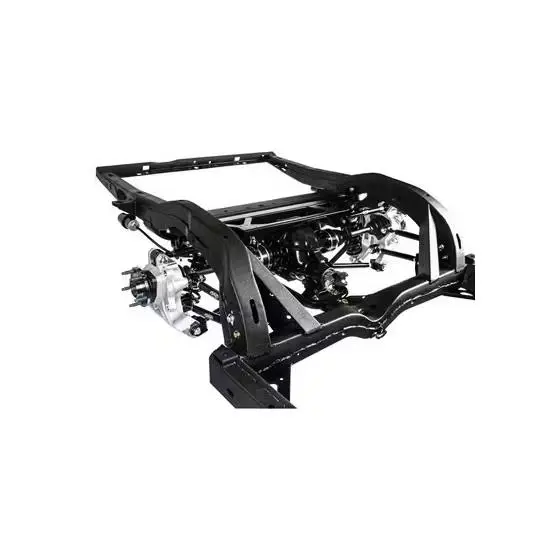

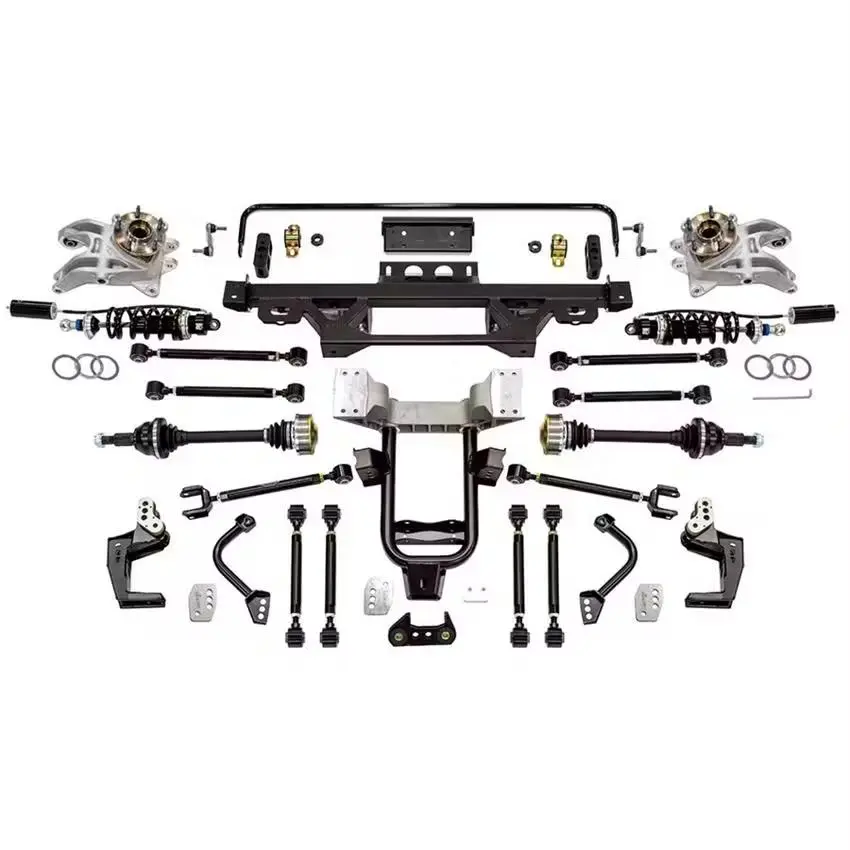

The DECAlink™ Independent Rear Suspension features no compromises and exclusive Detroit Speed suspension geometry for superior handling and ride quality. The IRS utilizes modern CV axle shafts and hub bearings, keeping suspension loads from being transmitted through the axle shafts. The DECAlink™ IRS works with an original 17-spline differential assembly or a Hammerhead 12-bolt differential. No body modifications are required on 1968-79 models while the suspension is offset inboard for additional tire clearance. All suspension link lengths are adjustable and the kit has adjustments for rear anti-squat geometry and roll center height. The suspension points are hard mounted to eliminate stock rubber mounted suspension deflection.It comes with forged in the USA Detroit Speed aluminum uprights and a two-piece cast aluminum/steel cradle assembly which eases differential housing removal. DSE/JRi “Detroit Tuned” Coilover shocks/springs allow spring rate tuning and ride height adjustments. The kit includes a rear anti-roll bar and uses OEM cross-axis pivot bushings at all pivot points. The kit also includes Torrington bearings and a spanner tool for easy spring height adjustments.Base ShockThe DSE/JRi ‘Detroit Tuned’ base shock is a ‘pure blood pedigree’ racing shock in its most efficient form as a non-adjustable unit. Although non-adjustable, it shares all the increased dynamic responses of all the JRi adjustable models while providing excellent ride quality on the street. Rear Spring Rate: 550lbs/inRear Spring Free Length: 8inThe axle shafts are rated to 600Hp, and the factory 17-spline differential is recommended to only 400Hp. Upgrade to Part # 041741DS for the DSE 30-spline differential if you have 400 to 600Hp. Upgrade to Part # 041742DS if you have more than 600Hp.
Features:
- Detroit Speed aluminum uprights – forged in the USA
- Cast Aluminum And Steel Cradle Assembly
- “Detroit Tuned” coilover shocks
- Coilover springs
- Rear sway bar
- Torrington bearings
KEY SPECS |
|
|---|---|
| MFG. Part # | 041740DS |
| Brand | Detroit Speed |
| Spring Rate | 550 lbs. |
| Bushing Material | Rubber |
| Lower Trailing Arms Included | Yes |
| Upper Trailing Arms Included | Yes |
| Trailing Arm Mount Braces Included | Yes |
| Panhard Bar Included | No |
| Upper Control Arms Included | Yes |
| Lower Control Arms Included | Yes |
| Control Arm Style | Tubular |
| Calipers Included | No |
| Rotors Included | No |
GENERAL |
|
| Sold in Quantity | Kit |
| GTIN Code | 090127170151 |
| Bushing Color | Black |
| Rear Shock Type | Coilover |
| Spring Finish | Black |
| Third Member Included | No |
| Axle Shafts Included | Yes |
| Watts Link Included | No |
| Adjustable Upper Trailing Arms Type | Double adjustable |
| Adjustable Lower Trailing Arms Type | Double adjustable |
| Adjustable Upper Trailing Arms Included | Yes |
| Bushings Included | Yes |
| Adjustable Panhard Bar Included | No |
| Adjustable Lower Trailing Arms Included | Yes |
| Trailing Arm Hardware Included | Yes |
| Air Bags Included | No |
| Coilover Springs Included | Yes |
| Rear Shocks/Struts Included | Yes |
| Suspension Package Finish | Black powdercoated |
