Product Summary
Rear Position, 31 Axle Splines, Semi-Floating Axle Type
- Designed to replace the original GM X-Body rearend housing
- Compatible with the stock multi-leaf spring rear suspension found in your 1968-1972 Chevy II / Nova / Ventura
- New billet steel housing ends with oil seal surface (“Big New Ford” Torino-style)
- 3″ O.D. DOM 3/16″ wall axle tubes, 1/2″-20 wheel studs, 2″ long
- 5 x 4-3/4″ Wheel bolt pattern, 31-spline axles w/ bearings, studs & retainers
Installation Tips
- Requires brake kit meant for Staggered style rearends.
Details

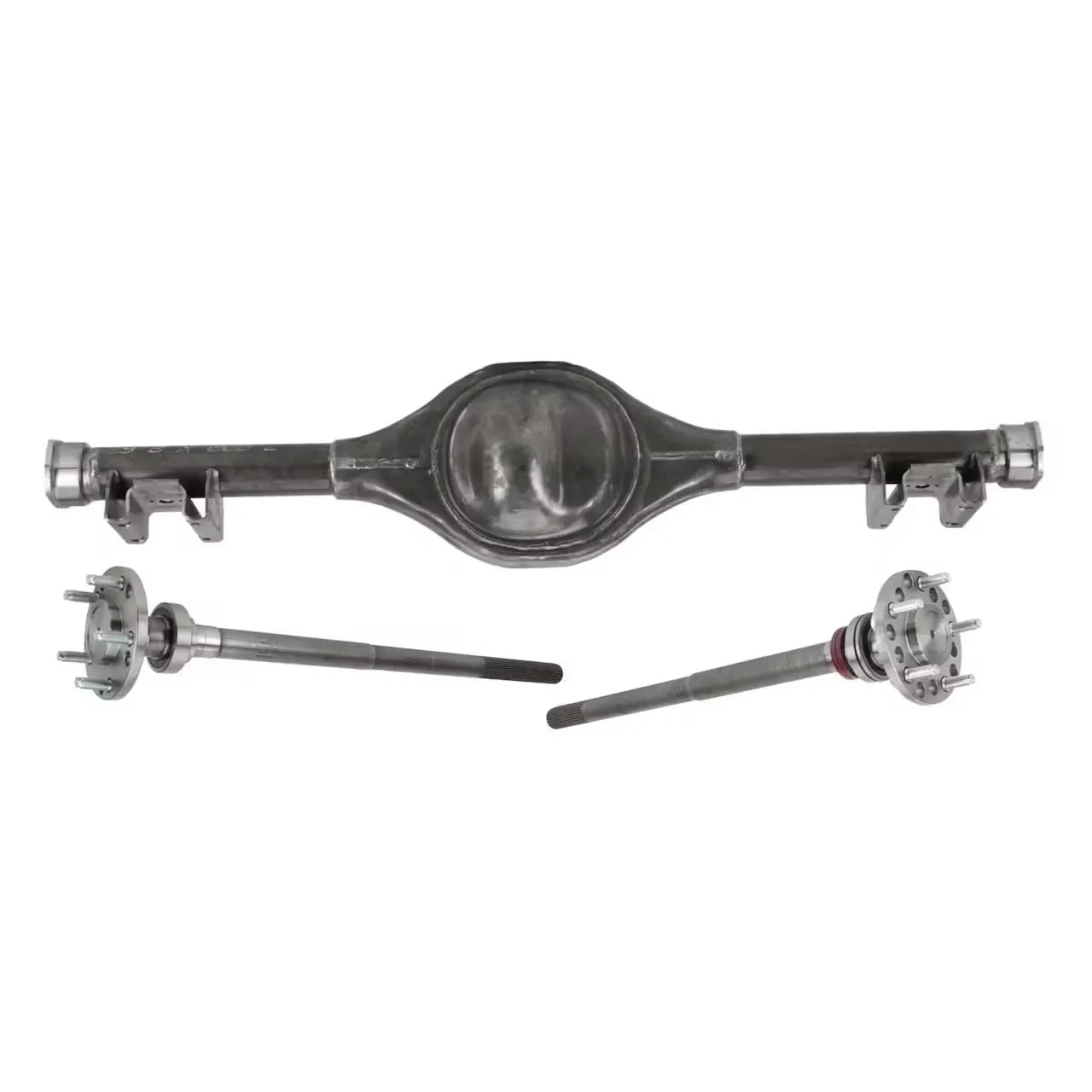

These bolt-in rear axle packages are designed to replace the original GM X-Body rearend housing and are compatible with the stock multi-leaf spring rear suspension found in your ’68-’72 Chevy II/Nova/Ventura. The major advantages gained by upgrading to a Ford 9″ axle include a) greatly increased strength (reliability), b) the variability of the housing to accept almost any gear ratio from 2.47:1 to 6.14:1, c) a drop-out third member for ease of service, and d) steel axle retainers keep the axle/wheel in place in the event of axle failure. Here are the features you’ll find in our fabricated Ford 9 Inch axle kits:

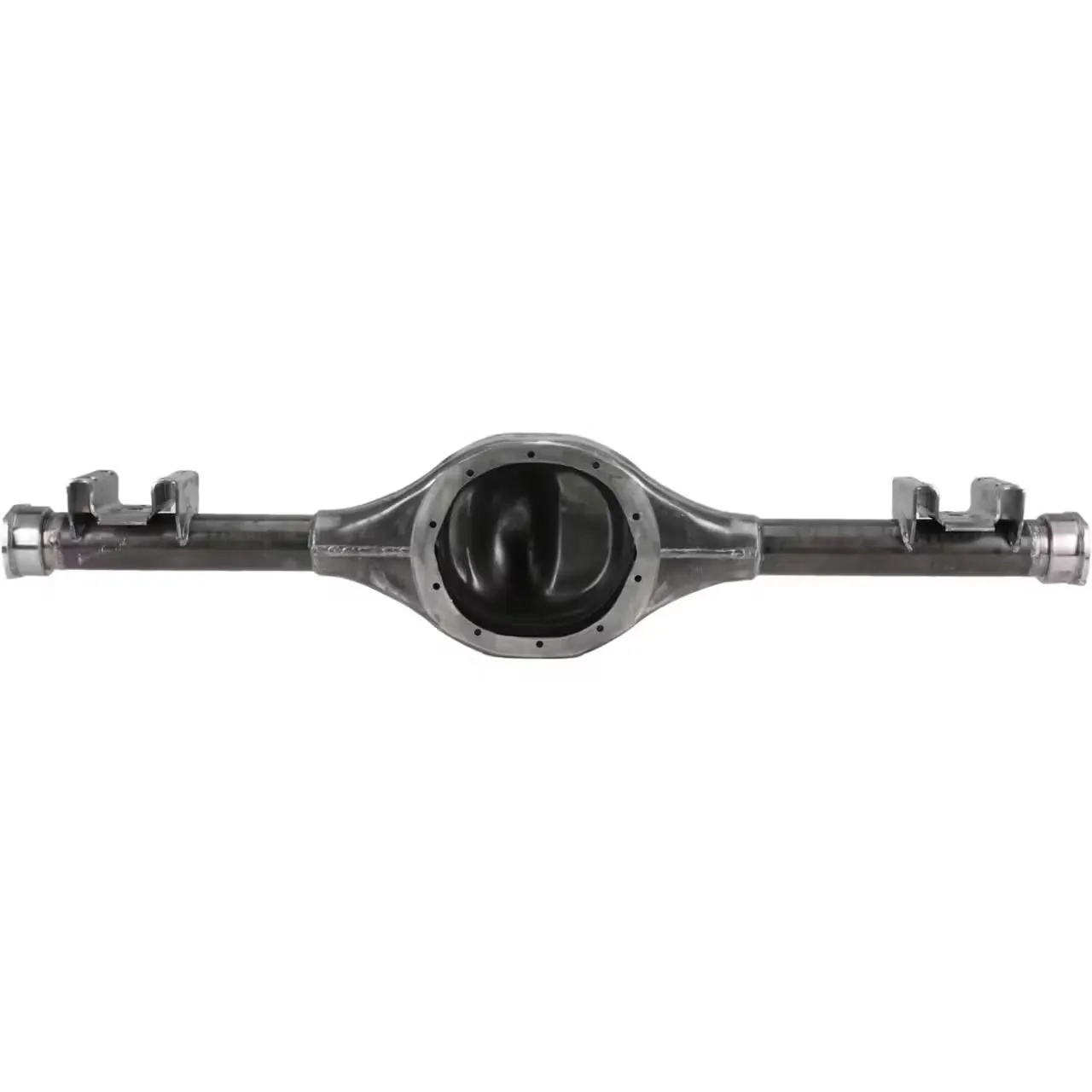

- New stamped steel housing center piece
- New billet steel housing ends with oil seal surface (“Big New Ford” Torino-style)
- 3″ O.D. DOM 3/16″ wall axle tubes

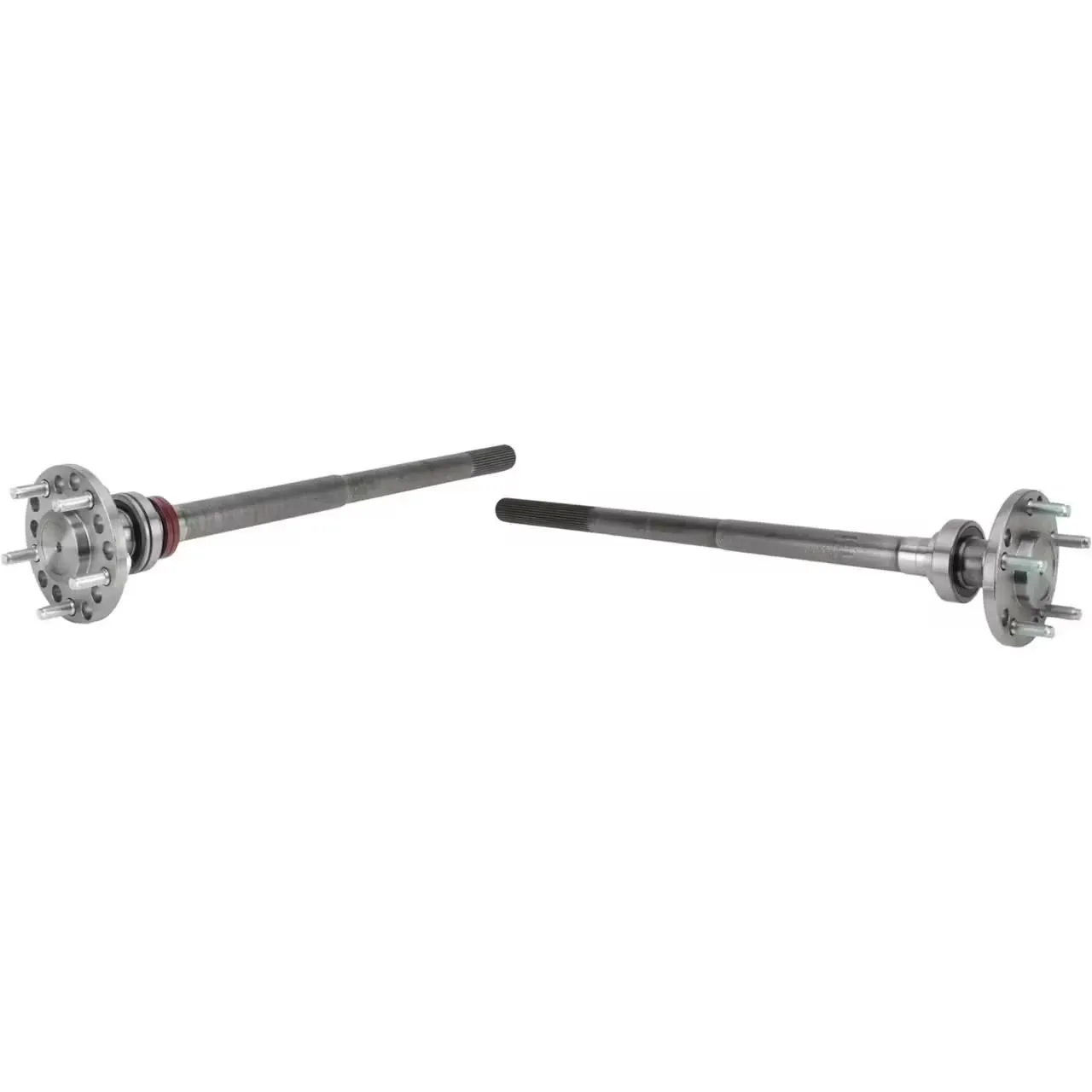

- 31-spline axles w/ bearings, studs & retainers
- 1/2″-20 wheel studs, 2″ long
- 5 x 4-3/4″ wheel bolt pattern
- Jig welded suspension brackets for stock style multi-leaf suspension
- Built to stock width
Add third member and brake kit of your choice (both sold separately) to complete your installation.
KEY SPECS |
|
|---|---|
| MFG. Part # | 99026872 |
| Brand | Speedway Motors |
| Position | Rear |
| Axle Splines | 31 |
| Axle Type | Semi-Floating |
| Brakes Included | No |
| Wheel Studs Included | Yes |
| Wheel Bolt Pattern (in.) | 5×4.75 in. |
| Finish | Natural |
| Tube O.D. | 3″ |
| Housing Material | Steel |
| Bolt Pattern | 5 on 4.75″ |
| Hardware Included | Yes |
| Rotors Included | No |
GENERAL |
|
| Bearings Included | Yes |
| Seals Included | Yes |
| Differential Included | No |
| Ring Gear Size | 9 Inch |
| Sold in Quantity | Kit |
