Brand: FTI Performance
Manufacturer’s Part Number: MPG5.5L
Part Type: Automatic Transmissions
Product Line: FTI Performance Mud Series Powerglide Level 5.5 Transmissions
Summit Racing Part Number: FTI-MPG55L
UPC: 887753816122
Number of Gears: 1
Bellhousing Bolt Pattern Manufacturer: Chevy
Transmission Shift Pattern: Forward
Valve Body Style: Full manual
Transmission Advertised Horsepower Rating: 2,200
Torque Converter Included: No
Flexplate Included: No
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Trans-Brake Included: Yes
Lockup Compatible: No
Transmission Pan Style: Deep
Transmission Pan Material: Aluminum
Transmission Pan Finish: Natural
Tailshaft Length (in.): 11.250 in.
Yoke Style: Slip-on
Input Spline Quantity: 30
Input Shaft Material: Vasco
Input Shaft Style: TH350/400
First Gear Ratio (Automatic Transmissions): 1.80
Clutch Hub: Billet Steel
Transmission Case Style: Aftermarket
Transmission Case Material: Aluminum
Transmission Case Finish: Natural
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Transmission Fluid Included: No
Dipstick Included: No
SFI Rating: SFI 4.1/ 30.1
Remanufactured: No
Quantity: Sold individually.
Notes: Input shaft is a ring-less design. Also includes a 300M output shaft.

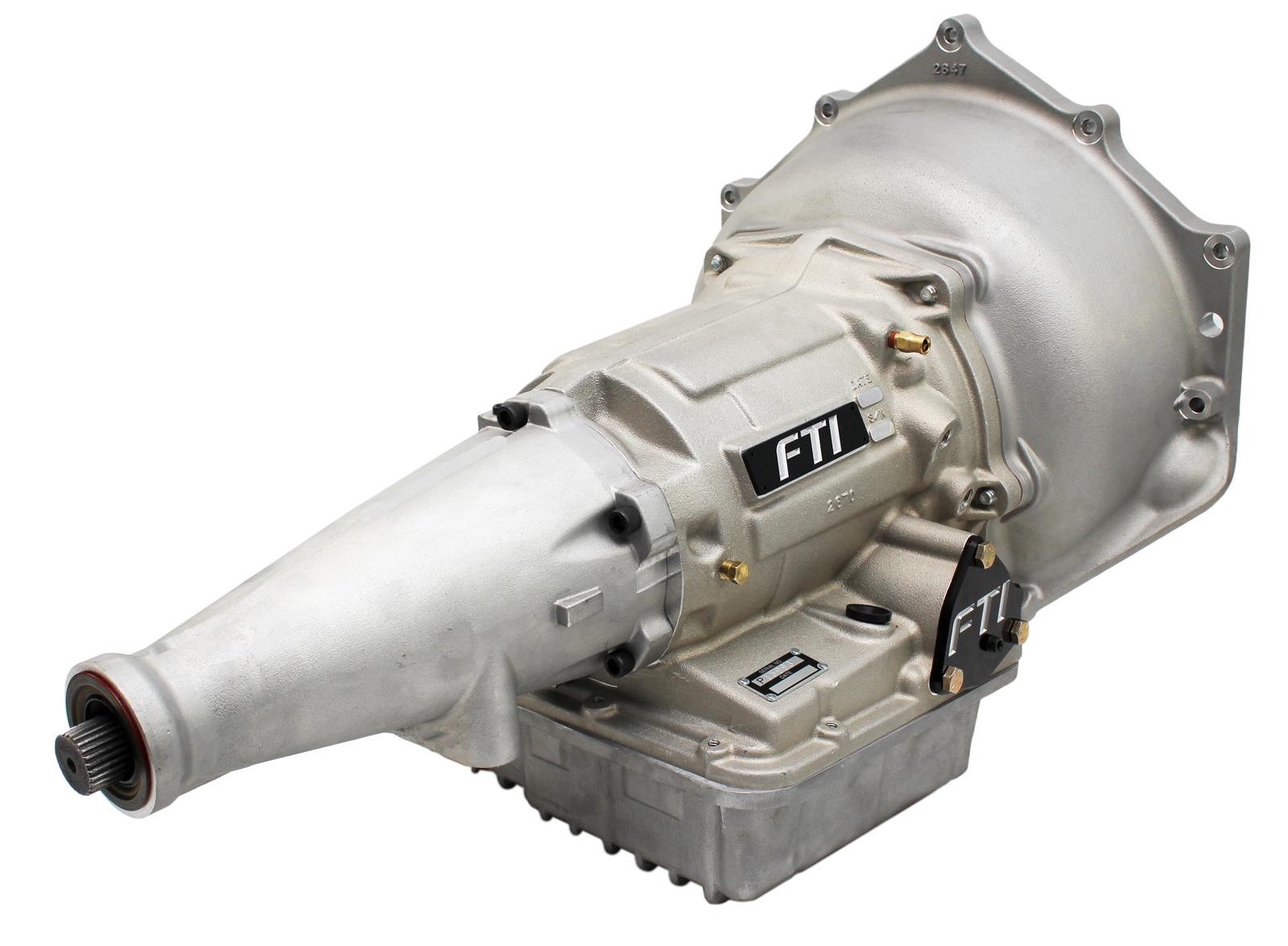

Extreme mud racers need incredible parts—like an FTI Performance Mud Series Powerglide Level 5.5 transmission. These wicked units are capable of handling up to 2,200 hp, making them ideal for blowers or multi-stage nitrous. They start life with SFI-certified aftermarket cases, and then add all-new internal parts, including a billet aluminum valve body, a 10-clutch drum, and a 1.80 or 1.69 straight-cut gear planetary.
VASCO ring-less input and 300M output shafts scream strength, while a deep aluminum pan helps keep parts cool. Hand-built to extreme tolerances, FTI Mud Series Powerglide Level 5.5 transmissions are available in one- or two-gear models, standard or shorty length. Order the model recommended for your vehicle make and engine application.
