Brand: Heidts
Manufacturer’s Part Number: CX-320-S-K-5
Part Type: Front Suspension Packages
Product Line: Heidts 1962-67 Nova Economy Mustang II Front Suspension Kits
Summit Racing Part Number: HDT-CX-320-S-K-5
Wheel Bolt Pattern: 5 x 4 3/4 in.
Crossmember Included: Yes
Crossmember Material: Steel
Crossmember Color: Natural
Welding Required: No
Front Spindles Included: Yes
Spindle Type: 2 in. drop
Spindle Material: Steel
Spindle Finish: Natural
Upper Control Arms Included: Yes
Lower Control Arms Included: Yes
Control Arm Style: Tubular
Control Arm Material: Steel
Control Arm Color: Silver
Upper Ball Joints Included: Yes
Lower Ball Joints Included: Yes
Rack and Pinion Included: Yes
Steering Rack Type: Manual
Rack Material: Aluminum/Steel
Rack Color: Gray/Silver
Shocks Included: Yes
Coilover Springs Included: Yes
Coilover Spring Rate (lbs/in): 350 lbs./in.
Spring Finish: Gray/Silver
Disc Brake Kit Included: Yes
Disc Brake Kit Type: Manual or power assist
Front Rotor Included: Yes
Front Rotor Style: Solid surface
Front Rotor Construction: Vented
Front Rotor Diameter: 11.00 in./279.40mm
Front Caliper Included: Yes
Front Caliper Piston Quantity: One
Front Caliper Material: Cast iron
Front Caliper Color: Natural
Brake Pads Included: Yes
Sway Bar Included: No
Center Link Included: No
King Pins Included: No
King Pin Bearings Included: No
Pitman Arm Included: No
Idler Arm Included: No
Tie Rod Sleeves Included: Yes
Inner Tie Rod Ends Included: Yes
Outer Tie Rod Ends Included: Yes
Quantity: Sold as a kit.

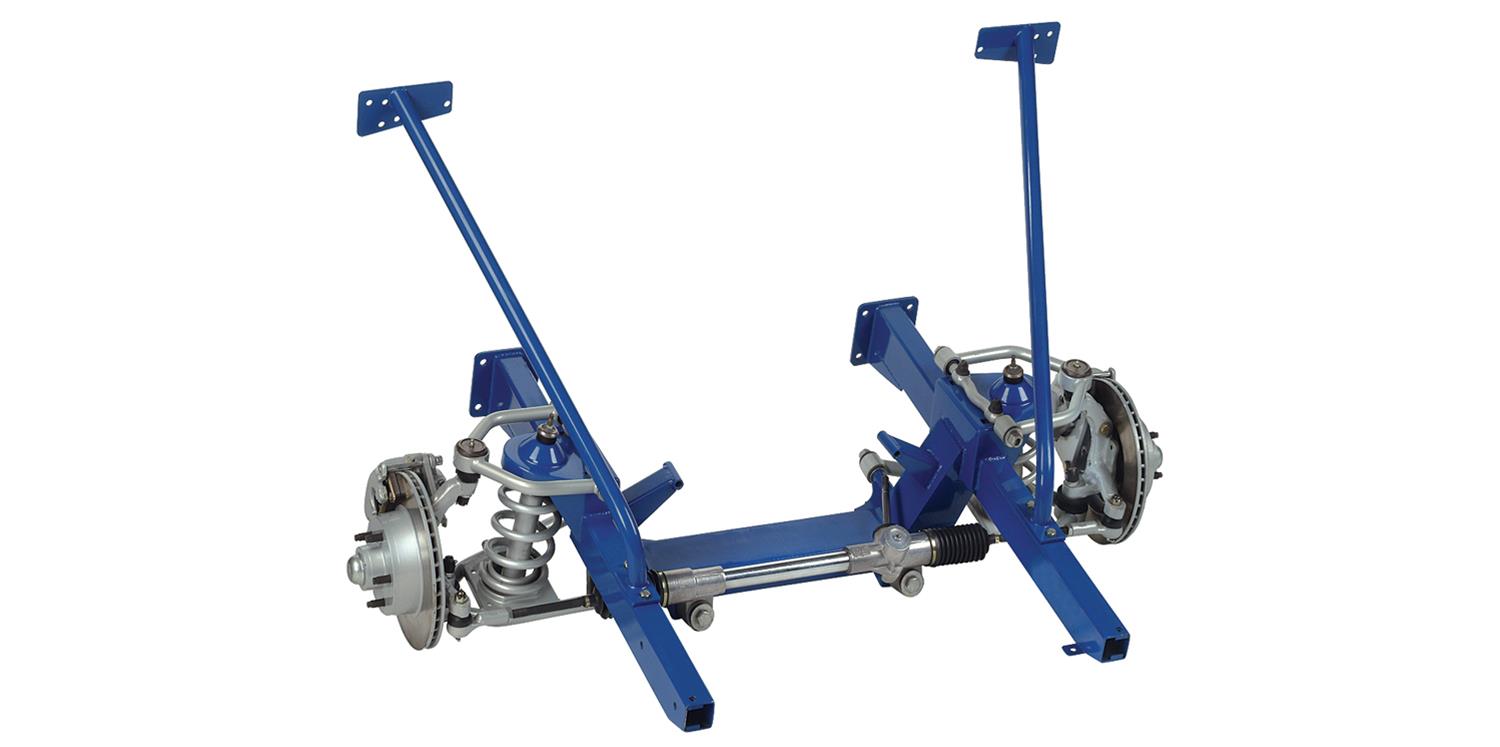

Heidts now offers their 1962-1967 Nova Economy Mustang II front suspension kits to give your Chevy Nova a lowered look and superior handling that street rods have enjoyed for years. Each Nova subframe and suspension kit comes with the necessary parts to upgrade the IFS system on your Nova. These subframe and suspension kits are designed with a bolt-in installation, making this modification simple, even the motor mounts are already welded in place. Simply unbolt your existing front end and bolt-on the new subframe—even the stock radiator bolts right up!
