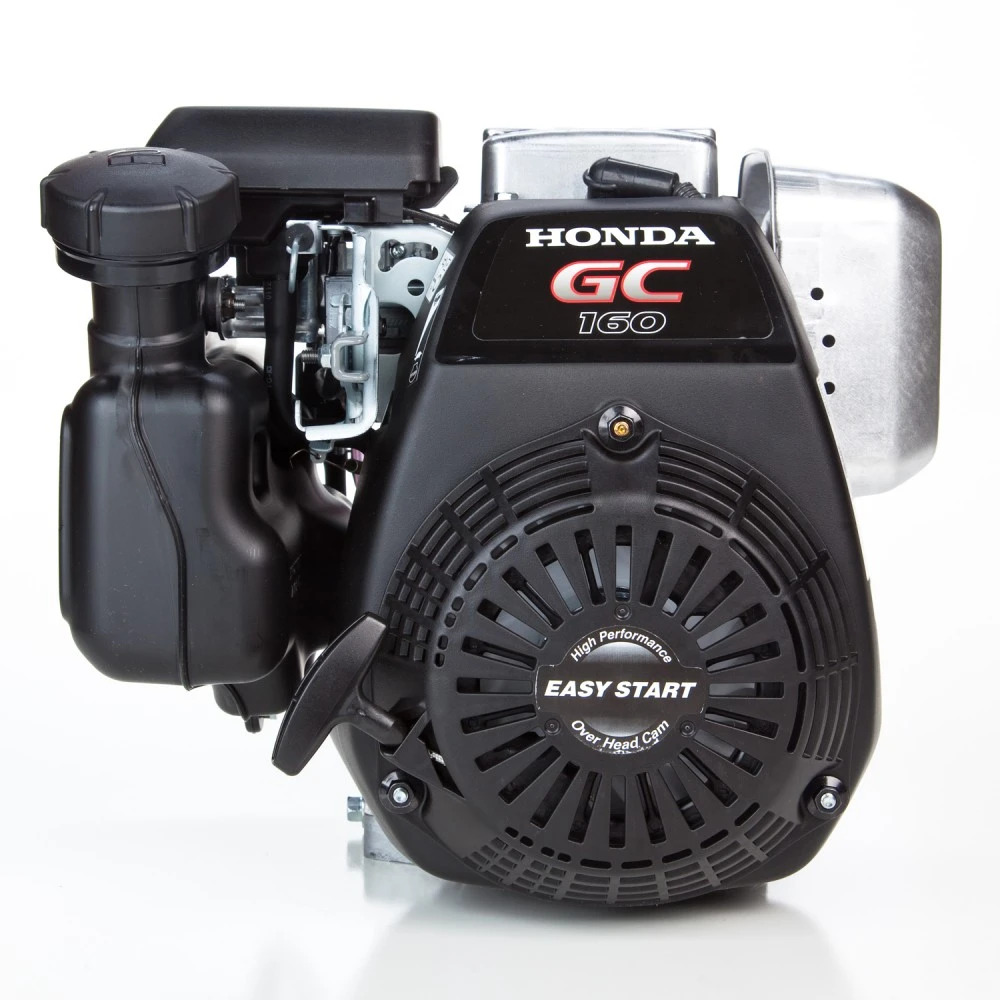

Honda GC160 QHG (GC160LAQHG) horizontal OHC engine is 160cc and puts out 5 HP. This Honda GC has a 3/4″ x 2-7/16″ crankshaft. The engine has a recoil starter and a standard muffler. GC160 QHG replaces model GC160 QHA. Honda GC160 residential engines feature fuel efficient, high output power making them perfect for consumer products. Common applications for this engine include water pumps, cultivators, pressure washers, tillers, agricultural equipment and more. Buyer protection package provides two-year consumer engine warranty. 49-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit. n
Key Specifications
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GC160-QHG |
| REPLACES MODELS | GC160LAQHA, GC160 LAQHA, GC160 QHA |
| WARRANTY | 2 Year Consumer / 3 Month Commercial |
| SHIPPING WEIGHT | 33 |
| DISPLACEMENT | 162cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 3/4″ x 2.44″ |
| CRANKSHAFT DIAMETER | 3/4″ |
| CRANKSHAFT LENGTH | 2.44″ |
| CRANKSHAFT END TAPPED SIZE | 5/16 – 24 |
| CRANKSHAFT KEYWAY WIDTH | 3/16″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Aluminum Alloy |
| AIR CLEANER TYPE | Paper Element |
| FUEL PUMP | Yes |
| OIL COOLER | No |
| OIL CAPACITY | 20 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Transistorized Magneto |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| BOLT CIRCLE | 3 – 5/8 |
| NOTES | Engine Notes: |
| PTO HEIGHT | 4 – 11/64 |
