Home Horizontal Engines Honda GX200 QC9 Horizontal Engine Replaces GX200 QXC9
Honda GX390 PA2 Horizontal Engine
Honda GX390 PA2 Horizontal Engine €413.00
Back to products
Honda GX100 QA2 Horizontal Engine
Honda GX100 QA2 Horizontal Engine €257.00

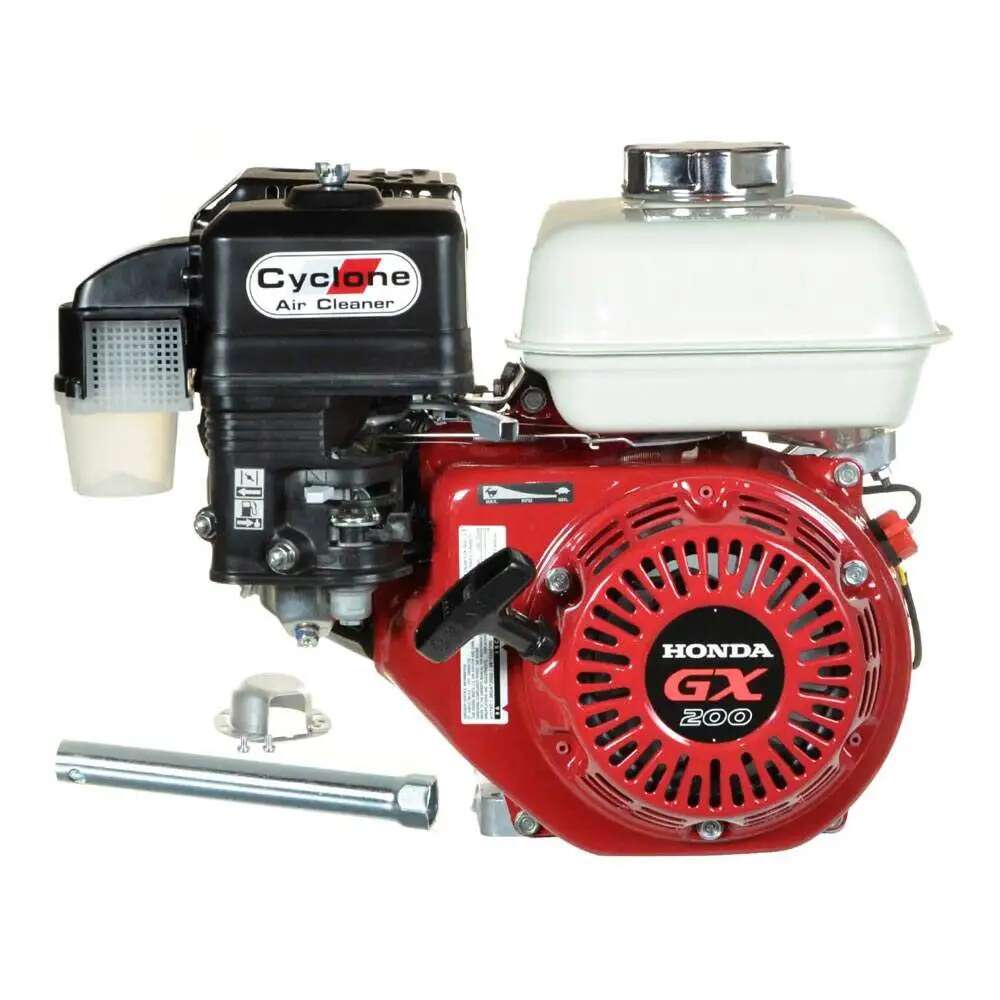

Honda GX200 QC9 Horizontal Engine Replaces GX200 QXC9

€284.00

Compare
Add to wishlist
SKU: 81464175 Category: Horizontal Engines
Share:
  • Description
  • Shipping & Delivery
Description
Honda GX200 QC9 Horizontal OHV Engine 196cc, 5.8 Net HP, GX200 Series, 3/4″ x 2-7/16″ Crankshaft, 3/16″ Keyway, Cyclone Air Filter for Fine Dust Filtration, Model GX200UT2QC9 / GX200 QC9, Replaces GX200-QXC9. Engine is suitable for a wide range of heavy-duty applications such as construction equipment, tillers, generators, welders, pumps and other industrial applications. As the world’s largest engine manufacturer, Honda has decided to apply a consistent method of rating engine power across all product lines; Auto, Motorcycle and Power Equipment; following the notion of ‘Net’ power, rather than ‘Gross’. We would like to aounce to you that Honda will be the first engine manufacturer to rate all general purpose engines at Net kW (Horsepower) in accordance with the Society of Automotive Engineers (SAE) test procedure. At the same timing we will also change the way of indicating the torque values (also measured with the ‘Net’ setup), fuel consumption (change from g/kW.hr to L/hr) and fuel tank capacity.

Honda GX200 QC9 Horizontal Engine Replaces GX200 QXC9 Specifications

BRAND Honda
MODEL NUMBER GX200-QC9
WARRANTY 3 Year Consumer & Commercial
SHIPPING WEIGHT 42
DISPLACEMENT 196cc
STARTER TYPE Recoil
CRANKSHAFT ORIENTATION Horizontal
CRANKSHAFT TYPE Straight
FUEL SYSTEM Gasoline
GEAR REDUCTION No
CRANKSHAFT DIMENSIONS 3/4″ x 2-7/16″
CRANKSHAFT DIAMETER 3/4″
CRANKSHAFT LENGTH 2-7/16″
CRANKSHAFT END TAPPED SIZE 5/16 – 24
CRANKSHAFT KEYWAY WIDTH 3/16″
CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise
BEARING TYPE Ball
CYLINDERS 1
CYLINDER BORE TYPE Cast Iron
AIR CLEANER TYPE Cyclone
FUEL PUMP No
OIL COOLER No
OIL CAPACITY 20
LOW OIL ALERT No
LOW OIL SHUTDOWN Yes
IGNITION SYSTEM Transistorized Magneto
CARBURETOR TYPE Float
CHOKE CONTROL Manual
BOLT CIRCLE 3 – 5/8
NOTES Engine Notes:
PTO HEIGHT 4 – 11/64
