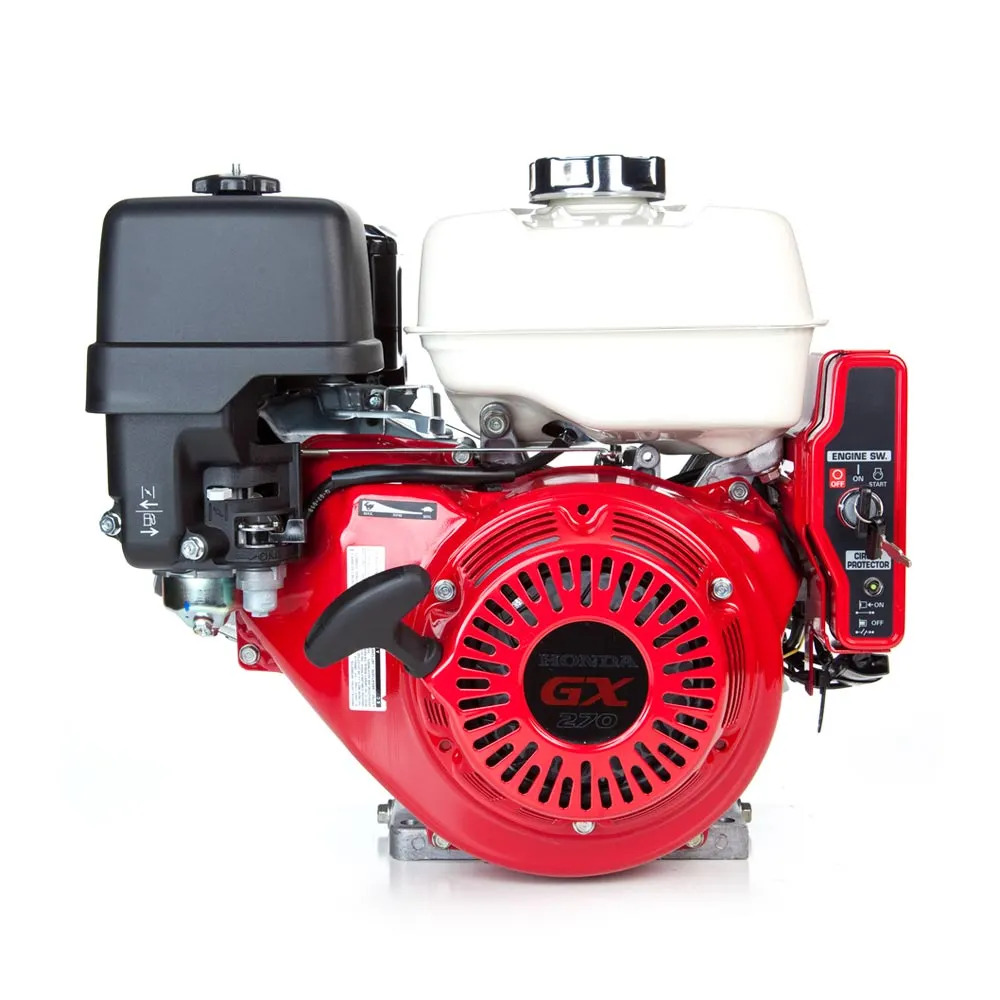

Honda GX270 HEA2 / GX270UT2HEA2 270 cc 8.5 Net HP Horizontal Engine, 1 inch x 3-3/8 inch Crankshaft, 12V Electric Start with 3A Alternator,Control Box, 6:1 Gear Reduction
Key Specifications
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX270-HEA2 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 80 |
| DISPLACEMENT | 270cc |
| STARTER TYPE | Electric & Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Gear Reduction |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | 6:01 |
| CRANKSHAFT DIMENSIONS | 1″ x 3-3/8″ |
| CRANKSHAFT LENGTH | 3-3/8″ |
| CRANKSHAFT END TAPPED SIZE | N/A |
| CRANKSHAFT KEYWAY WIDTH | 1/4″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 38 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | Yes |
| IGNITION SYSTEM | Digital CDI with Variable Ignition Timing |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| BOLT CIRCLE | None |
| NOTES | Engine Notes: |
| PTO HEIGHT | 5 – 1/4 |
