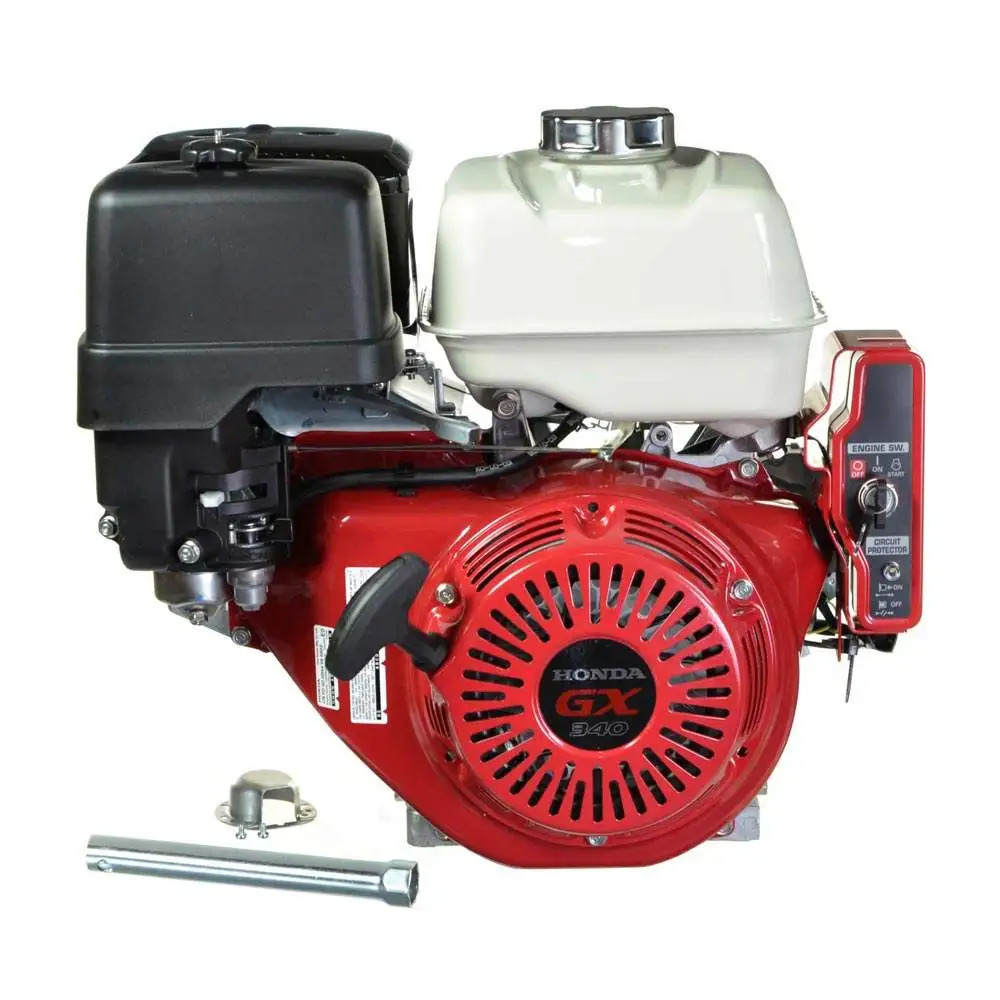

Honda GX340 QAE2 / GX340UT2QAE2 Horizontal OHV Engine 389cc, 10.7 Net HP, 1″ x 3 31/64″ Shaft, Electric Start, 3 Amp Charging Systemn
Key Specifications
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX340-QAE2 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 86 |
| DISPLACEMENT | 389cc |
| STARTER TYPE | Electric & Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1″ x 3-31/64″ |
| CRANKSHAFT LENGTH | 3-31/64″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Ball |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 1.16 qt |
| LOW OIL ALERT | Yes |
| IGNITION SYSTEM | Digital CDI with Variable Timing |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| NOTES | Engine Notes: |
| PTO HEIGHT | 5 – 1/4 |
