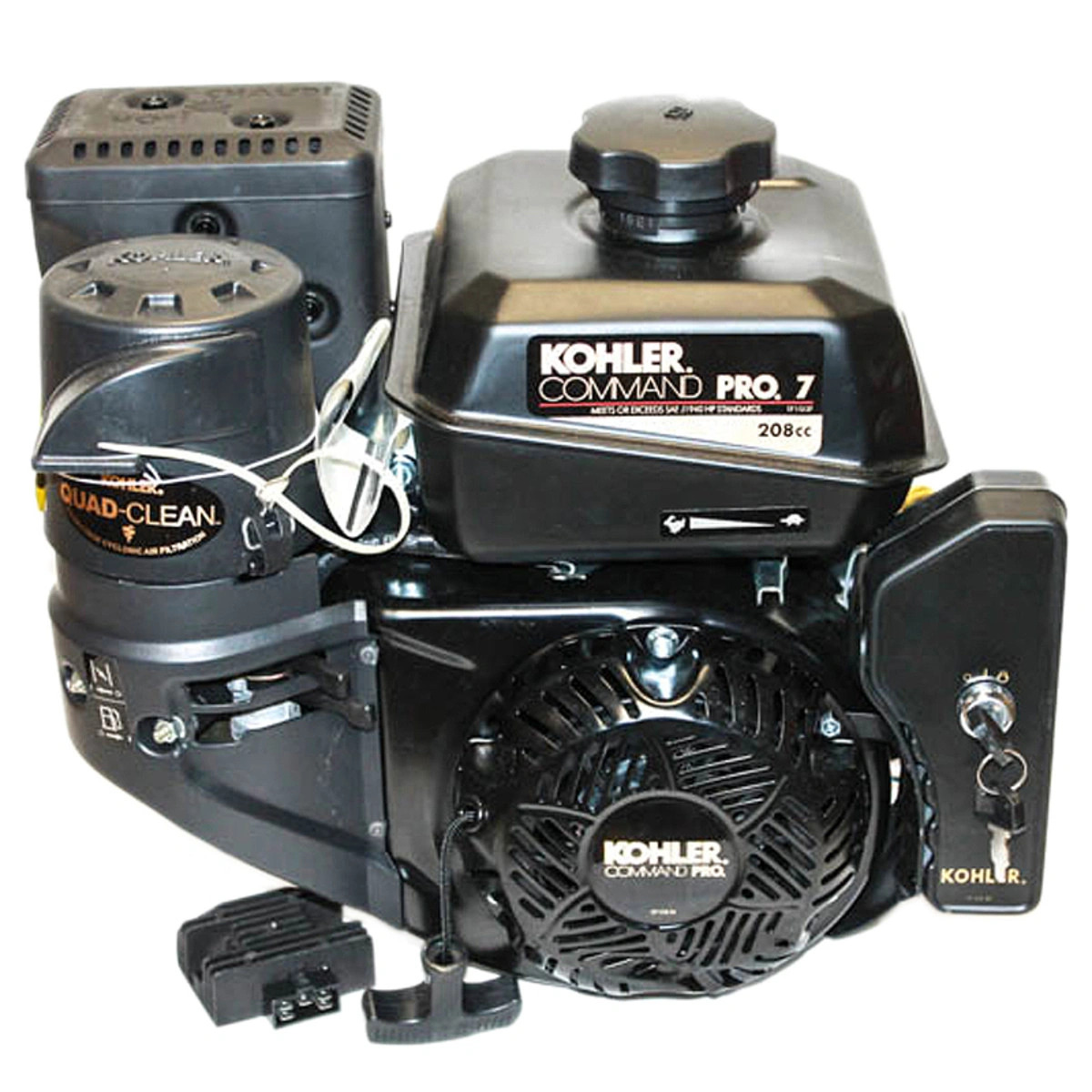

Kohler CH270-3031 Command PRO Series OHV Engine, 7 Gross HP, 208cc, 0.75-inch x 2.42-inch Crankshaft, Recoil and Electric Start, 10 Amp, Air Cooled, Single Cylinder
Key Specifications
| BRAND | Kohler |
|---|---|
| MODEL NUMBER | PA-CH270-3031 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 46 |
| DISPLACEMENT | 208cc |
| STARTER TYPE | Electric & Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 3/4″ x 2-3/8″ |
| CRANKSHAFT DIAMETER | 3/4″ |
| CRANKSHAFT LENGTH | 2-3/8″ |
| CRANKSHAFT END TAPPED SIZE | 5/16 – 24 |
| CRANKSHAFT KEYWAY WIDTH | 3/16″ |
| BEARING TYPE | Dual Ball |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Cyclonic Filter |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 20 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | Yes |
| IGNITION SYSTEM | Electronic |
| CHOKE CONTROL | Manual |
| BOLT CIRCLE | 5 |
| NOTES | Engine Notes: |
