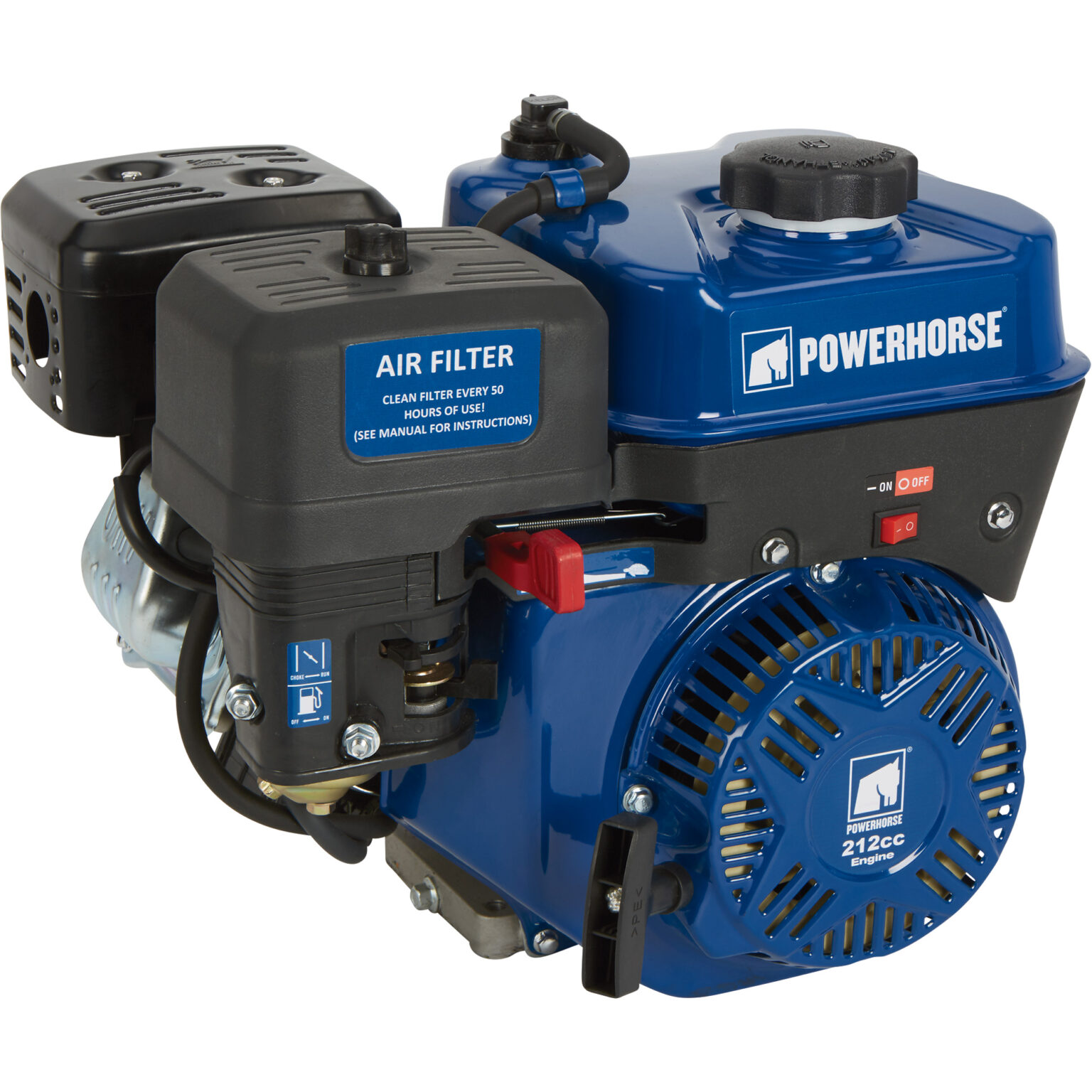

This Powerhorse® OHV Horizontal Engine is an easy-to-install solution for small engine needs. With 212cc, 6 HP and 9 ft.-lbs. Gross Torque, this 1000-hour engine provides enough power to run a wide range of equipment, including log splitters and pressure washers. Its patented design incorporates an industrial-strength cast iron cylinder sleeve, dual ball bearing forged-steel crankshafts and an internal oil splash enhancement system. Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure. The recoil start has a compression release that helps you get ruing on the first pull. Combine these features with thorough U.S.-based testing, dedicated customer/tech support and incredible value, and you’ll own one of the most reliable engines in the industry.n
| Item# |
750120 |
| Brand |
Powerhorse |
| Manufacturer’s Warranty |
2 year Limited Warranty |
| Ship Weight |
39.16 lbs |
| Engine Displacement |
212 cc |
| Engine Type |
OHV |
| Net Power Output |
6 HP |
| Start Type |
Recoil |
| Shaft Diameter |
3/4 in |
| Shaft Length |
2.43 in |
| Shaft Output |
Horizontal |
| Shaft Keyway |
0.18 in |
| Shaft Rotation (From PTO Shaft Side) |
Counterclockwise |
| Cylinders (qty.) |
1 |
| Cooling System |
Air cooled |
| Bore |
2.75 in |
| Stroke |
2.16 in |
| Air Cleaner Type |
Paper/foam |
| Fuel Tank Capacity |
3.8 qt |
| Oil Capacity |
0.63 qt |
| Low Oil Alert |
Yes |
| Lubrication System |
Splash |
| Ignition System |
CDI |
| Governor System |
Mechanical centrifugal |
| Carburetor |
Horizontal type, butterfly valve |
| Max. RPM |
3,600 |
| Charging System Amps |
0.5 |
| Muffler Included |
Yes |
| CARB Approval |
Yes |
| Bolt Circle |
3.625 in |
| Mounting Base Length |
6.378 in |
| Mounting Base Width |
3.15 in |
| Dimensions L x W x H (in.) |
14.76 x 12.40 x 13.375 in |
