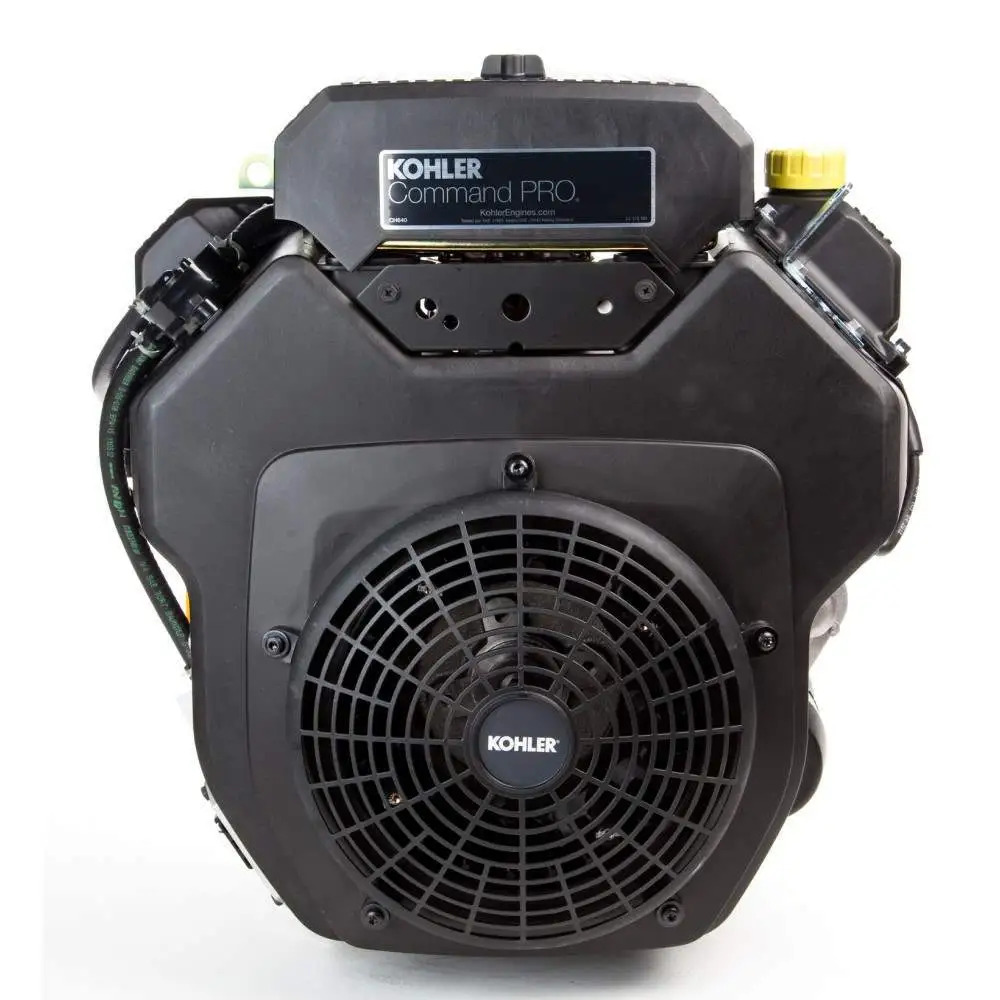

Kohler CH680-3014 Engine, Tapered Shaft, 22.5 HP, 12V Electric Solenoid Shift Starter, 25 Amp Alternator, CH680S E3 Toro Workman Utility Vehicle, Replaces PA-66513, PA-76548. Image may not represent exact engine specs.
Key Specifications
| BRAND | Kohler |
|---|---|
| MODEL NUMBER | PA-CH680-3014 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 112 |
| DISPLACEMENT | 674cc |
| STARTER TYPE | Electric |
| CRANKSHAFT ORIENTATION | Horizontal |
| FUEL SYSTEM | Gasoline |
| CRANKSHAFT DIMENSIONS | Tapered x Special |
| CRANKSHAFT DIAMETER | Tapered |
| CRANKSHAFT LENGTH | Special |
| CRANKSHAFT KEYWAY WIDTH | None |
| CYLINDERS | 2 |
| AIR CLEANER TYPE | Large Capacity Dual Element |
| FUEL PUMP | Yes |
| OIL COOLER | No |
| OIL CAPACITY | 60 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Electronic |
| CHOKE CONTROL | Remote |
| BOLT CIRCLE | 5-5/8; 7-3/4 |
| NOTES | Engine Notes: |
