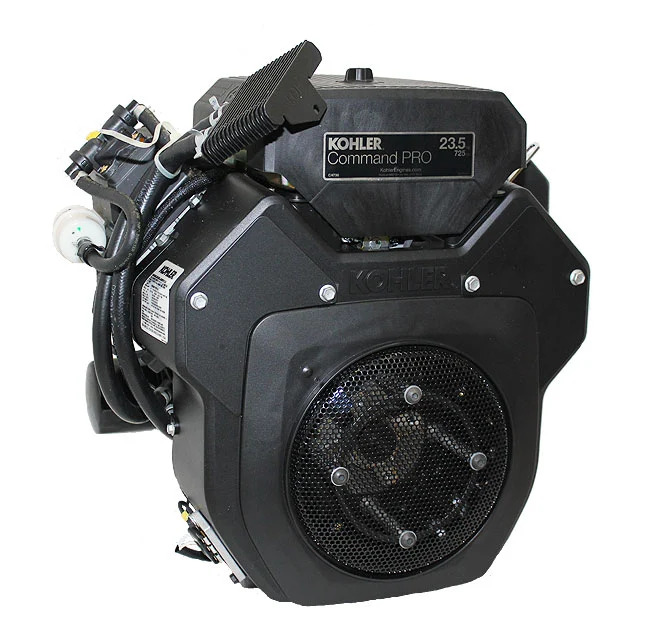

Kohler CH730-3257 Engine, E3 Scag, Cougar Zero Turn, 1-1/8 inch x 3-11/32 inch Crankshaft, 23.5 HP, Replaces PA-68650, PA-CH730-0065
Key Specifications
| BRAND | Kohler |
|---|---|
| MODEL NUMBER | PA-CH730-3257 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 107 |
| DISPLACEMENT | 725cc |
| STARTER TYPE | Electric |
| CRANKSHAFT ORIENTATION | Horizontal |
| FUEL SYSTEM | Gasoline |
| CRANKSHAFT DIMENSIONS | 1-1/8″ x 3.34″ |
| CRANKSHAFT DIAMETER | 1-1/8″ |
| CRANKSHAFT LENGTH | 3.34″ |
| CRANKSHAFT KEYWAY WIDTH | 1/4″ |
| CYLINDERS | 2 |
| AIR CLEANER TYPE | Large Capacity Dual Element |
| FUEL PUMP | Yes |
| OIL COOLER | Yes |
| OIL CAPACITY | 64 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Electronic |
| CHOKE CONTROL | Remote |
| BOLT CIRCLE | 5-5/8; 7-3/4 |
| NOTES | Engine Notes: |
